Expanded Metal Mesh Customized Shapes and Specifications With Wide Usage

Unlimited Expanded Mesh Patterns

The expand metal mesh sheet is uniformly slit and stretched, forming diamond-shaped openings in the sheet that allow for the passage of water, oil, light, air, heat, and sound. There are some samples photos of our expanded metal mesh.

Steel expanded mesh flattened type for security guard

Steel expanded mesh standard type for stair steps

Stainless steel expanded mesh

Stainless steel expanded mesh sheet photo

Small holes aluminum expanded mesh for air filters application

Large holes aluminum expanded mesh for building facade

One way vision mesh/DVA mesh for window &doors

8×13mm diamond HEPA filter mesh powder coated.

Standard raised steel expanded mesh is most common expanded mesh type

Steel expanded mesh flattened type for security guard

Steel expanded gothic mesh is decorative for making fence, guards.

Small holes steel expanded mesh is good material for air filters

Technical information of Expanded Metal Mesh

• Material Grade
  Carbon steel, stainless steel, aluminum alloy, and other metal alloy plate
• SWD (Short Way Dimension)
  The length of short diamond diagonal from one pitch point center to another pitch point center.

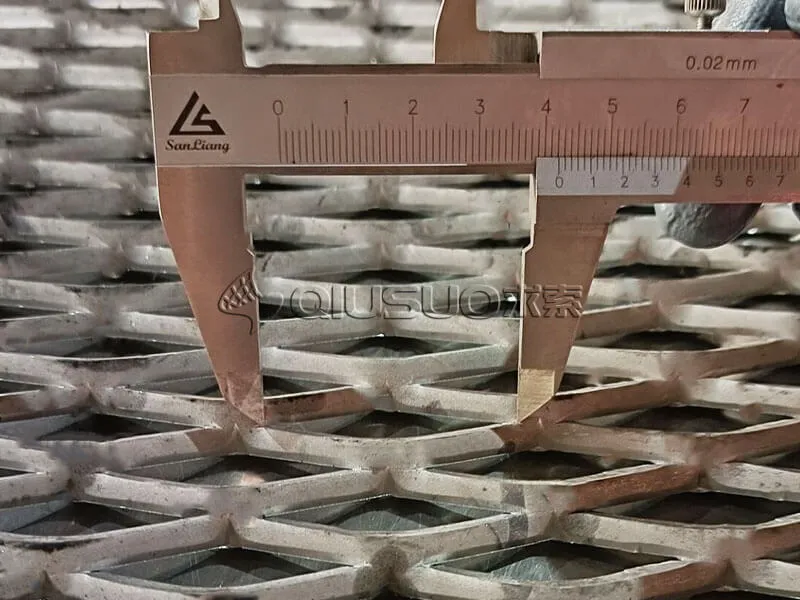

• LWD (Long Way Dimension)
  The length of long diamond diagonal from one pitch point center to another pitch point center.
• SWO (Short Way Opening)
  The length of the short diagonal of the hole.
• LWO (Long Way Opening)
  The length of the long diagonal of the hole.
• Bond
  The intersection of two strands and it is always the width of two strands. Sometimes referred to as Knuckle.
• Overall Thickness
  Actual measurement of the thickness of the mesh measured at the bond.
• Strands
  Individual slit metal strips, or sides of an expanded metal pattern.
• Strand Width
  Amount and dimensional length fed between the upper and lower tooling to produce the mesh.
• Strand thickness
  Gauge or thickness of the sheet or coil from which the expanded metal was produced. It is also the thickness of the material after fattening.
• LW
  Long way of expanded metal sheet
• SW
  Short way of expanded metal sheet

Advantages of Expanded Metal

• Cost efficiency
• Greater strength
• Anti-skid qualities
• Lightness
• Ideal for secondary operations
• Wide usage

Application of Expanded Metal Mesh

The expanded metal mesh is ideal material for many fields, wildly used for filters, Walkways for footbridge, anti-slip stair steps , safety fences, reinforcing of concrete, as metallic lath to support plaster or stucco, shielding in buildings and constructions, facade;ade, Ceiling, Curtain wall, Cladding, Interior decoration, Security guard, Window protection, Sunshade, Balustrade & railing, Privacy separation.

Steel Expanded Metal is a good material for walkway

Steel Expanded Metal is a good material for anti-slip stair steps

Steel expanded metal for fence is beautiful and cost efficiency

Steel expanded mesh for reinforcing of concrete, as metallic lath to support plaster or stucco.

Weather steel expanded mesh for facade;ade is favored by designers

Aluminum expanded mesh with light weight and various patterns are welcomed for ceiling

Aluminum expanded mesh is an important material for air filter

Micro holes stainless steel expanded mesh better strength than woven mesh is good material for industrial filters

Cases Display

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of expanded metal mesh.

5 mm thickness expanded mesh

HEPA Filter Expanded Mesh

Expanded Metal Mesh for Mechanical Equipment Protection
