Crimped Wire Mesh for Ore Screening in Coal Mine Factory

Crimped wire mesh is manufactured by interweaving pre-crimped metal wires in a warp-and-weft pattern. The distinctive wave-like structure creates exceptional stability, ensuring uniform aperture sizes that won't deform during operation. This specialized engineering delivers both flat surface tension and dimensional accuracy, making it ideal for industrial applications requiring precise screening. Whether used in vibrating sieves or static filtration systems, it maintains outstanding structural integrity and long-term durability.

This versatile product serves critical functions across multiple sectors: mineral classification in mining, concrete reinforcement in construction, grain sorting in agriculture, ingredient screening in food processing, and machine guarding in manufacturing. With excellent corrosion resistance and high tensile strength, it performs reliably even in demanding environments such as petrochemical plants and wastewater treatment facilities.

We offer fully personalized manufacturing: custom materials (stainless steel, galvanized steel, carbon steel, etc.), various weaving patterns (flat-top crimp, double crimp, etc.), aperture size and specialized edge treatments. Our engineering team provides tailored solutions to meet your exact operational requirements and performance specifications. The DSM screen operates by introducing the material to be processed onto the screen.

Basic Information and Specification

Company: Base station construction service company
Country: Qatar
Products: Crimp wire mesh
Material grade: carbon steel
Wire diameter: 4.5 mm
Square hole diameter: 12.7 × 12.7 mm
Size: 1.245 × 1.15 m
Order code: 6180

Finished Crimp Wire Mesh Photos

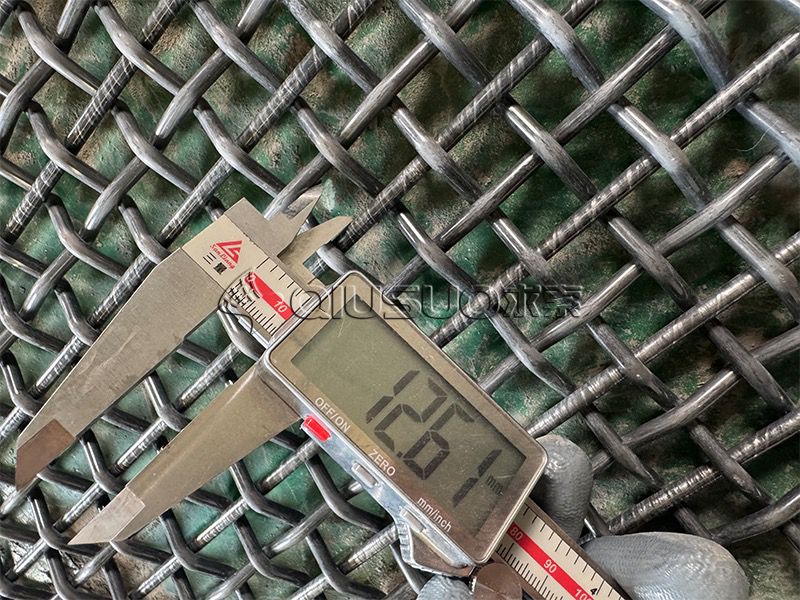

The aperture of crimp wire mesh was measured to be 12.6 mm.

Hole size

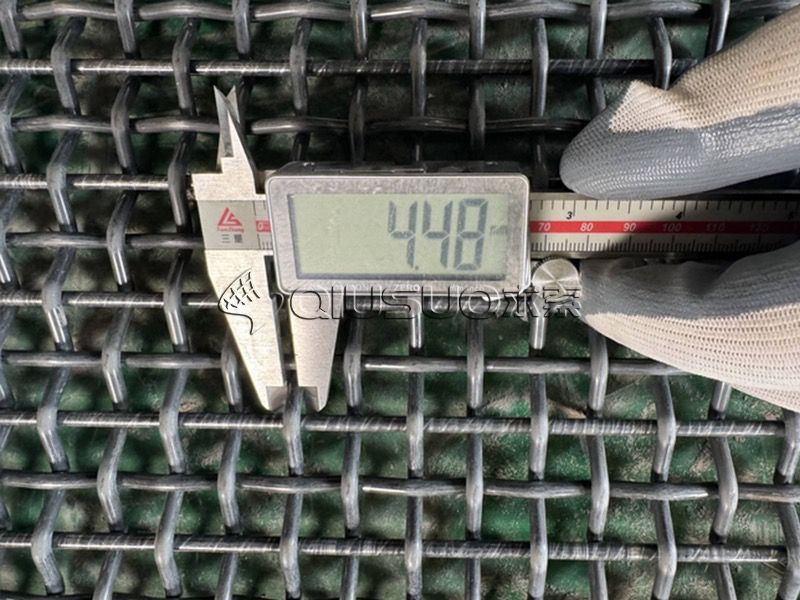

Wire diameter

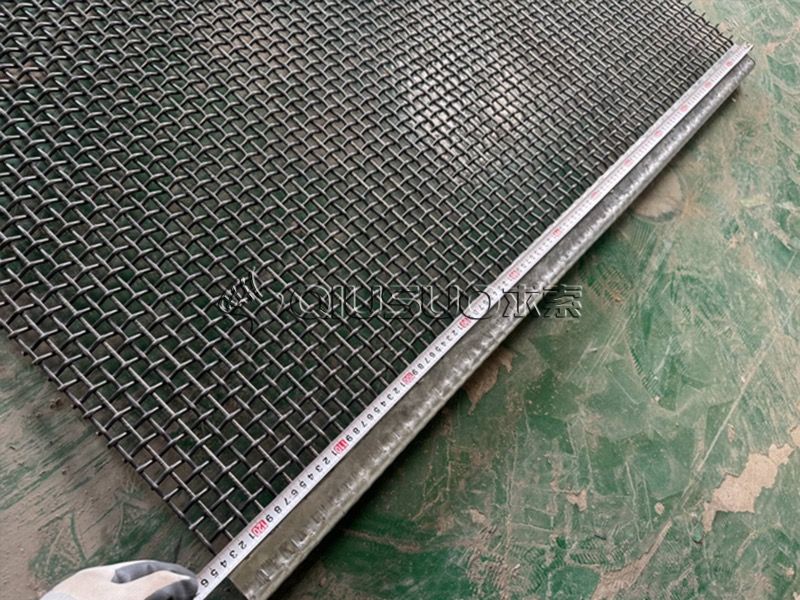

Hook length

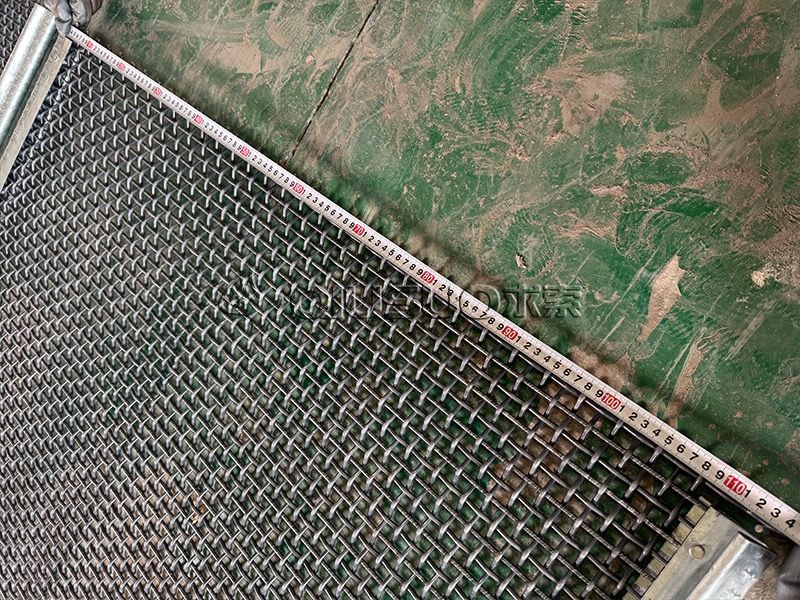

Width

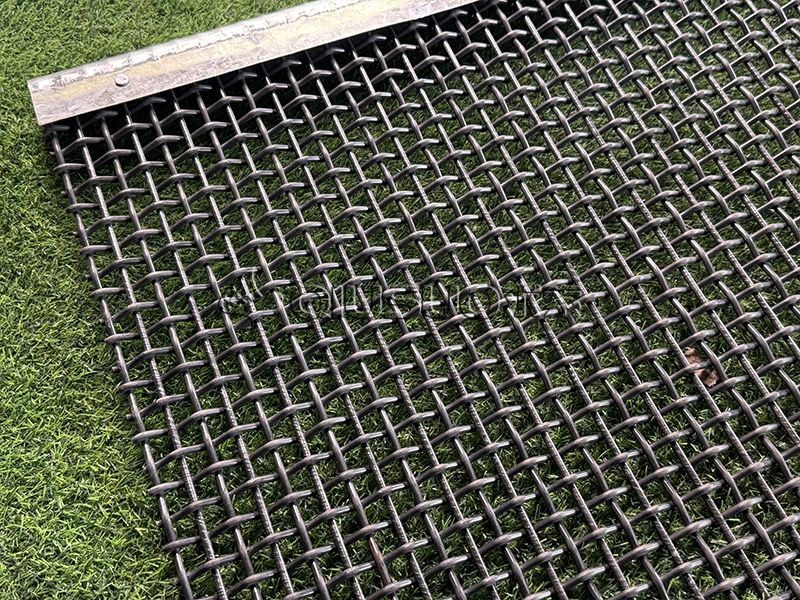

This is the detailed picture of crimp wire mesh.

Crimp wire mesh details

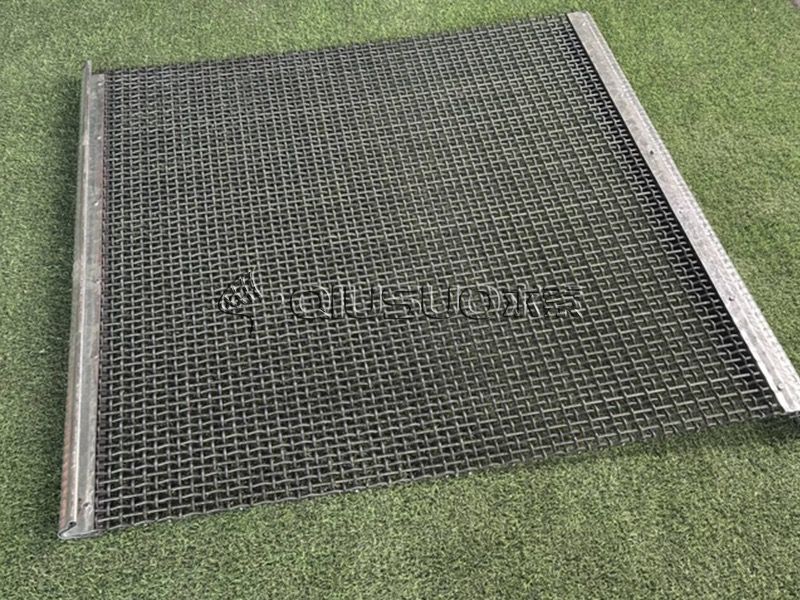

This is the product picture of crimp wire mesh.

Crimp wire mesh appearance

Applications

In the mining industry, 65Mn crimped wire mesh proves indispensable as a durable screening medium for ore classification and separation, while also serving as robust protective barriers around crushers and processing equipment. Its high carbon manganese steel construction ensures exceptional resistance to impact and abrasion in the harshest mining environments.

For construction and infrastructure projects, this resilient mesh provides critical slope stabilization along highways and dams while functioning as effective reinforcement in foundational structures, offering both tensile strength and corrosion resistance essential for long-term structural integrity.

Environmental engineers rely on 65Mn crimped mesh as a filtration workhorse in wastewater treatment plants and landfill operations, where its precise apertures and chemical resistance enable efficient solids separation and containment in challenging waste management applications.

Agricultural operations benefit from the mesh's versatility as protective greenhouse coverings and sturdy farmland fencing, combining durability with the flexibility needed to withstand outdoor elements while supporting crop growth and livestock management.

Industrial processors across chemical, food, and metallurgical sectors utilize 65Mn mesh for precision particle separation and equipment protection, where its heat-treated durability maintains performance under continuous mechanical stress and exposure to aggressive substances.

Transportation infrastructure incorporates the mesh for both functional and aesthetic purposes, from vehicle component separation to subway safety barriers, providing reliable protection without compromising on design flexibility for modern transit systems.

Power and telecommunications installations employ 65Mn crimped mesh as protective screening for sensitive equipment, combining electromagnetic transparency with physical security in utility rooms and transmission facilities where both protection and ventilation are paramount.
