Custom Duplex 2205 Wedge Wire Screen Tube with 0.4 mm Screen Slot

Utilizing the unique design of wedge wire, duplex 2205 wedge wire screen tube effectively blocks larger particles while allowing smaller substances to pass through via a fixed screen or mesh structure, providing efficient filtration when filtering liquids or gases.

Basic Information and Specification

• Products: Wedge wire screen tube
• Material grade: Duplex stainless steel 2205
• Length: According to customer requirements
• Screen slot: 0.4 mm
• Screen diameter: 76 mm
• Screen wire: 1.5 × 2.5 mm
• Support wire: 1.8 × 2.5 mm
• Flange: 163 mm × 20 mm
• Joint length: 100 mm
• Ring width: 30 mm
• Flow direction: From outside to inside

Finished Products Photo & Packing

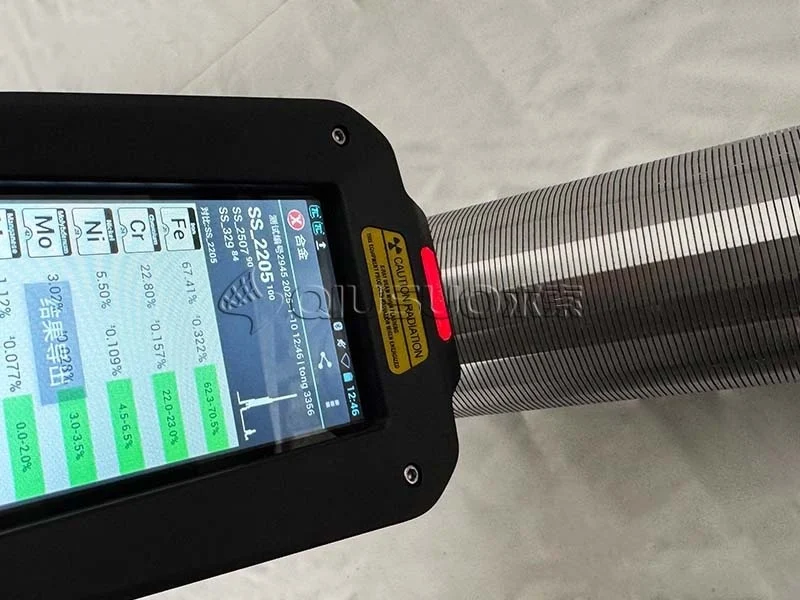

Wedge wire screen tube duplex 2205

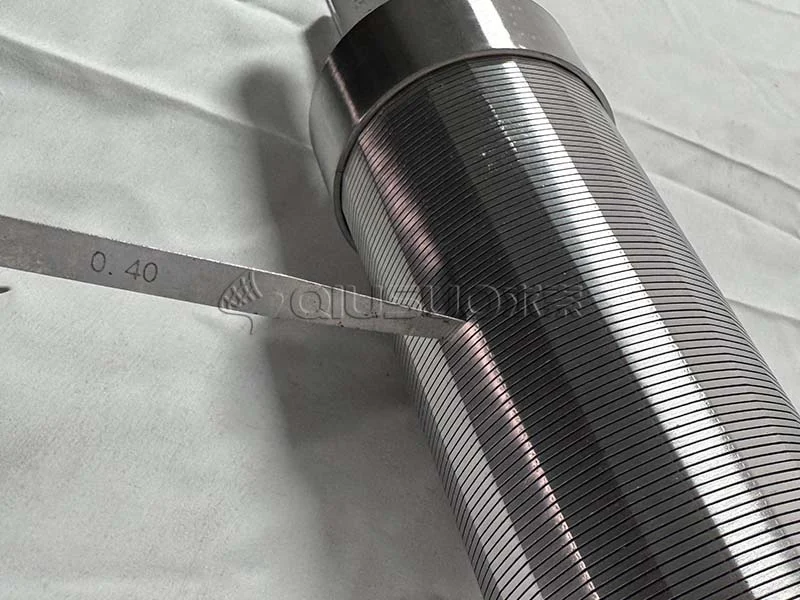

Wedge wire screen tube slot

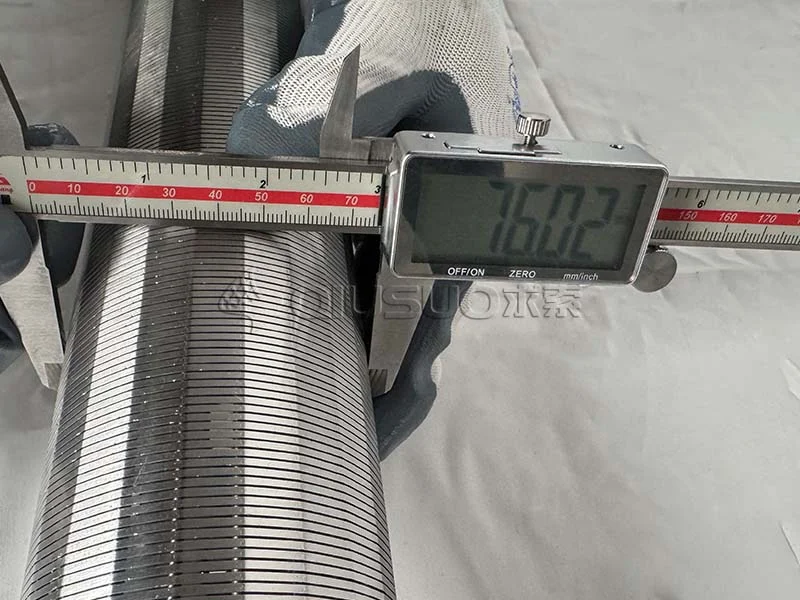

Diameter of the wedge wire screen tube

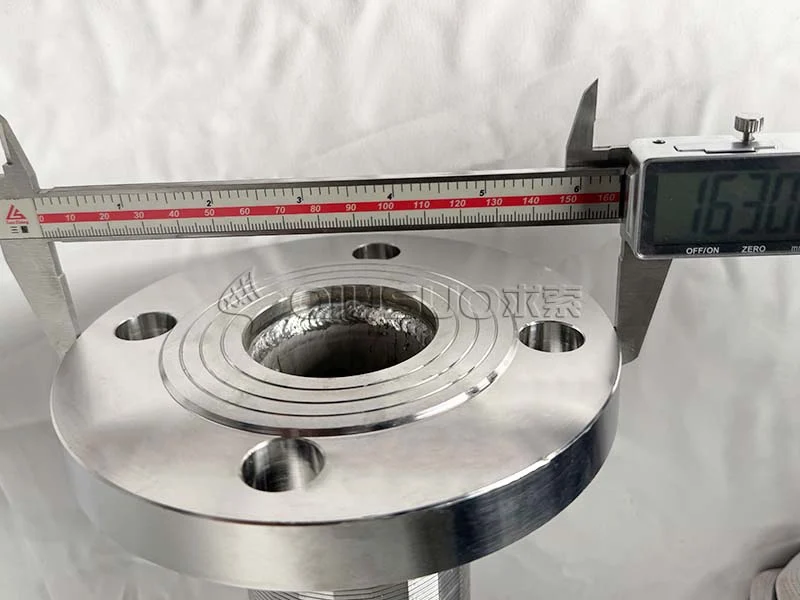

Flange diameter of the wedge wire screen tube

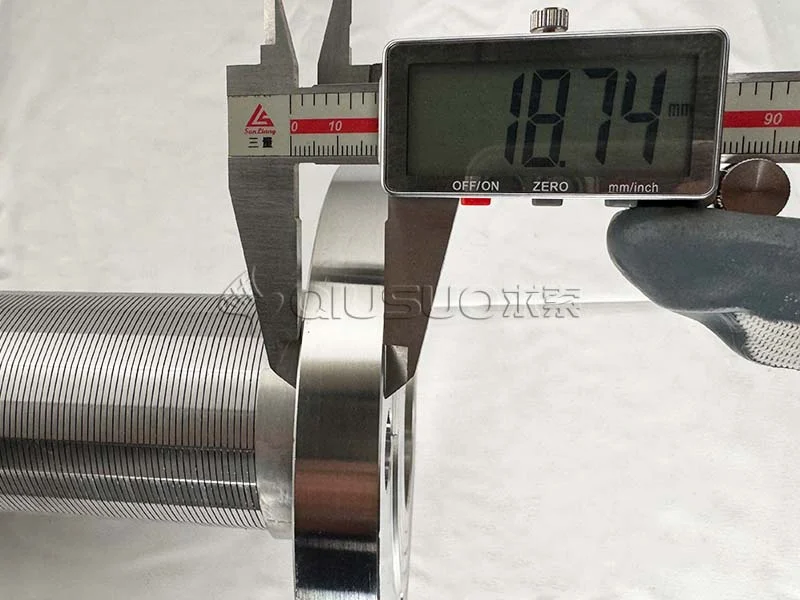

Flange thickness of the wedge wire screen tube

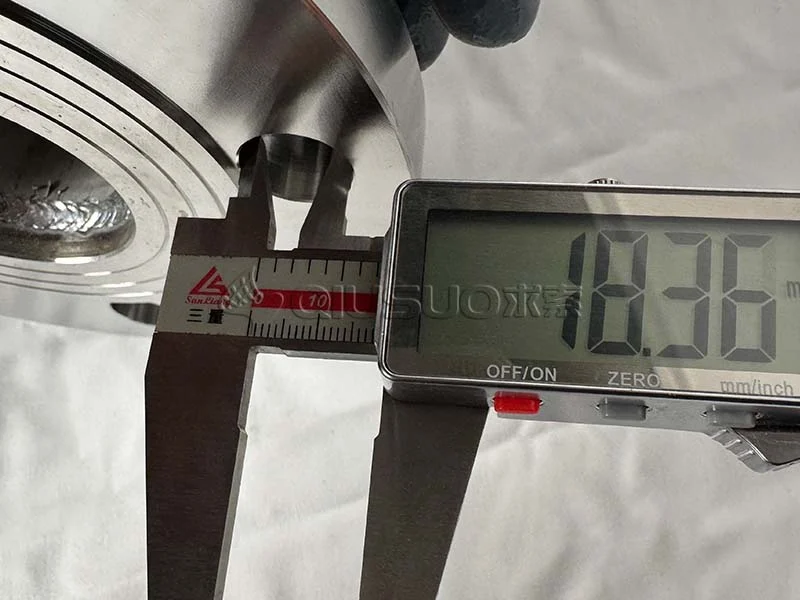

Flange round hole diameter of the wedge wire screen tube

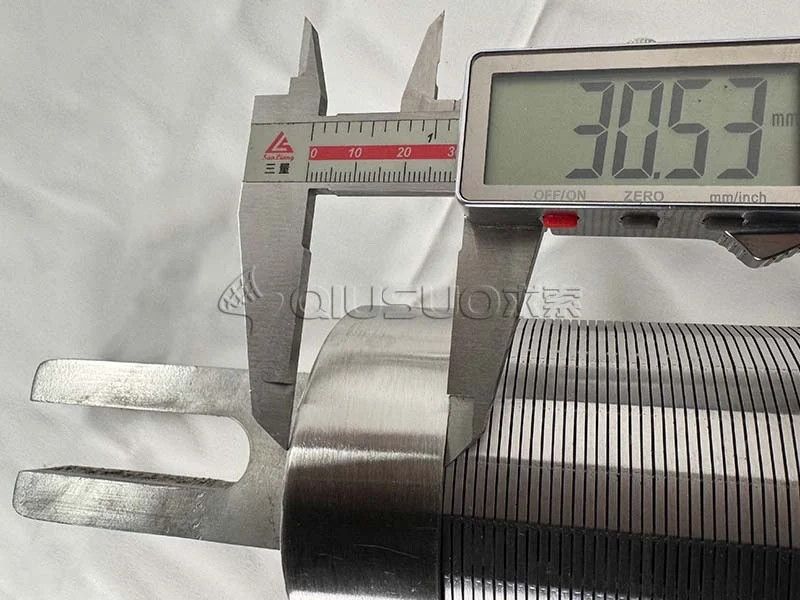

Wedge wire screen tube ring width

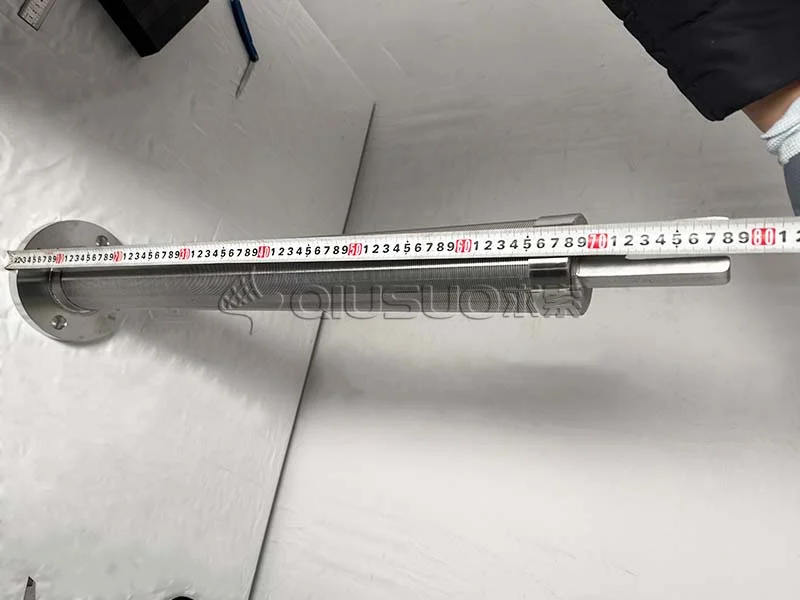

Wedge wire screen tube overall length
