Standard Traction Tread Pattern Drawing
Traction Tread Safety Grating is an excellent choice for stairs and scaffolding platforms that require moderate slip resistance. The smaller holes of Traction Tread Plank Grating more compatible with a wider range of shoe types (including heels), cart and wheeled traffic. We can make the Traction Tread to work with in many types of fabrication projects.
Material options
Hole patterns

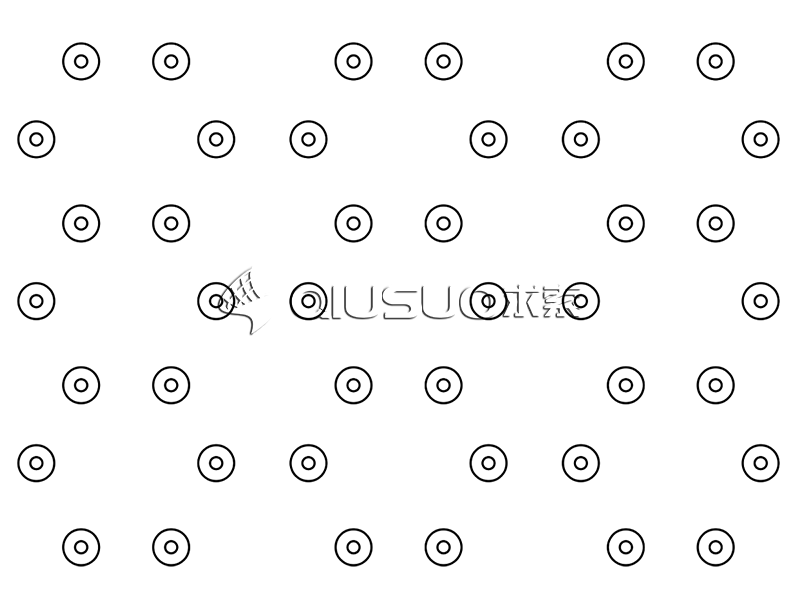

Traction Tread standard holes pattern as above, and variations to the surface design can be produced according to your requirement, example as following.

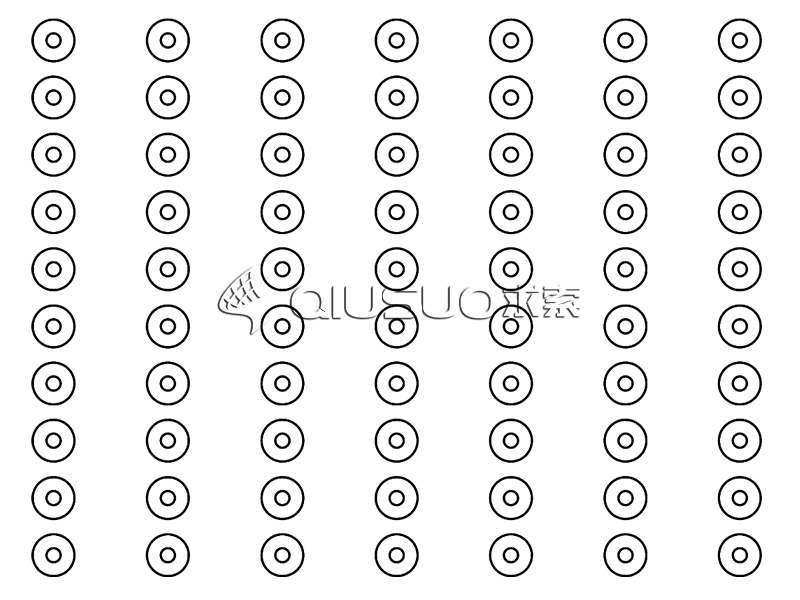

Except of Variations Holes arrangement patterns, there are more holes size and holes combination,examples as follows.
Hot-selling Traction Tread Grating
Traction Tread Plank Grating
Traction Tread Plank Grating is an excellent choice for stairs and scaffolding platforms that require moderate slip resistance. Heights of planks are 1-1/2" and 2". Available in .125 thick aluminum and standard lengths of 10' and 12'. Planks are kind on hands and knees and work well for cart and wheeled traffic (non-automotive or forklift).

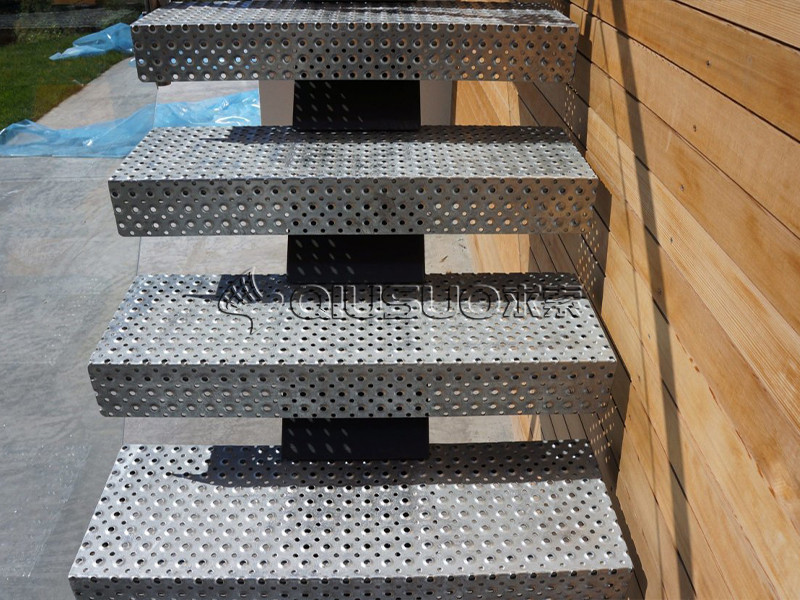

Traction Tread Stair Tread
Traction Tread stair treads are manufactured with welded end carrier plates, pre-punched with holes, which allow the treads to be bolted to the stair stringers. In many applications the side margin of the standard Traction Tread channel provides a defined visible
Standard widths are 7", 10" and 12". Tread lengths can be any customer specified length.
Traction Tread Flooring Plate
Traction treads variations to the surface design can be produced according to your
Used in the oil & gas industry as fooring plates to reduce risk for employees and improve productivity. Standard size 36”x120”.
Traction Tread Ladder Rungs
Traction Tread ladder rungs feature a hand-overhand friendly surface with moderate slip resistance. Products are sold in efficient lengths, well suited to fabricators of ladders. Vehicle applications are an option. Standard size 2 rows Ladder Rungs, 3 rows Ladder Rungs, 4 rows Ladder Rungs
Features of Traction Tread
