Metal Bar Grating – Lightweight Structure, Good Ventilation, Light Transmission & Excellent Slip Resistance

Metal bar grating is a mesh-like panel composed of load-bearing flat bars and cross bars arranged at specified intervals, secured by welding or press-locked methods. It features a robust structure, excellent ventilation and light transmission, as well as superior slip resistance and durability. This product is widely used in industrial platforms, stair treads, walkways, drainage trench covers, equipment maintenance passages, railings and guardrails, as well as architectural facades. Depending on application needs, it can be made from carbon steel, stainless steel, or aluminum alloy, with surface treatments such as hot-dip galvanizing or coating to enhance corrosion resistance and extend service life.

• Catalogue
• Video Viewing
• RFQ Form

Basic Technical Parameters

• Material: Carbon steel, iron, stainless steel, ASTM B221 6063-T6, ASTM B221 6061-T6, and more.
• Construction type: Swage-locked, riveted-locked, press-locked
• Mesh shape: Square, rectangular, triangular
• Product surface: Smooth, serrated
• Bearing bar: Flat bar, I bar
• Surface treatment: Mill finish, primary color anodizing, colored anodizing, powder coating
• Common bearing bar spacing: 20 × 3 mm; 25 × 3 mm; 30 × 3 mm; 30 × 5 mm; 40 × 5 mm; or as your requirement.
• Bearing bar spacing: 15 mm, 25 mm, 30 mm, 40 mm, 50 mm, 60 mm, 90 mm or as your requirement.
• Common cross bar spacing: 24–200 mm; or as your requirement.
• Bearing bar depth: 3/4" – 7".
• Bearing bar thickness: 1/8" – 1/2".
• Top-customized: bar grating according to drawings

Category

Swaged rectangular metal bar grating

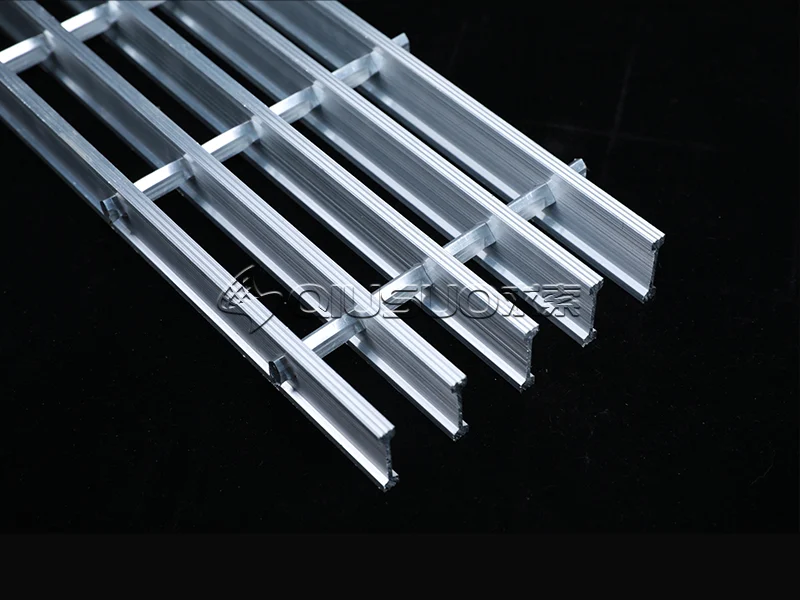

Swaged I metal bar grating

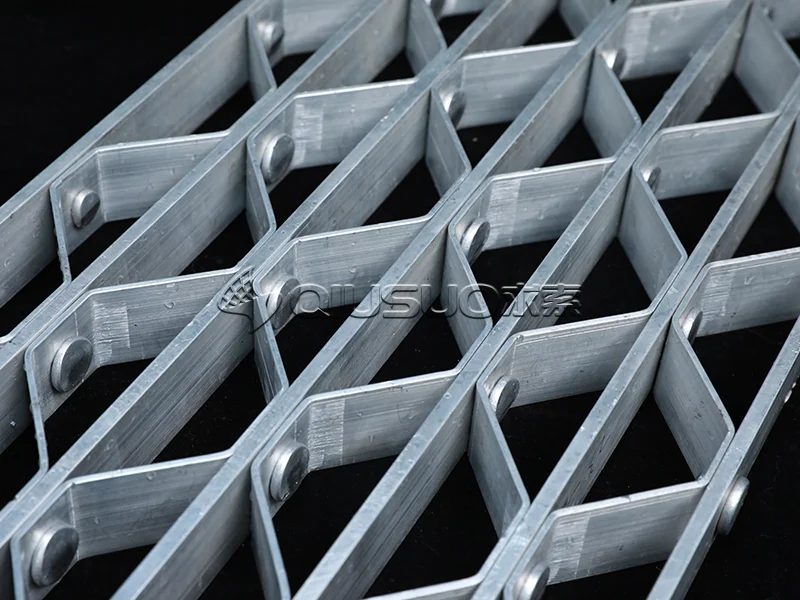

Riveted metal bar grating

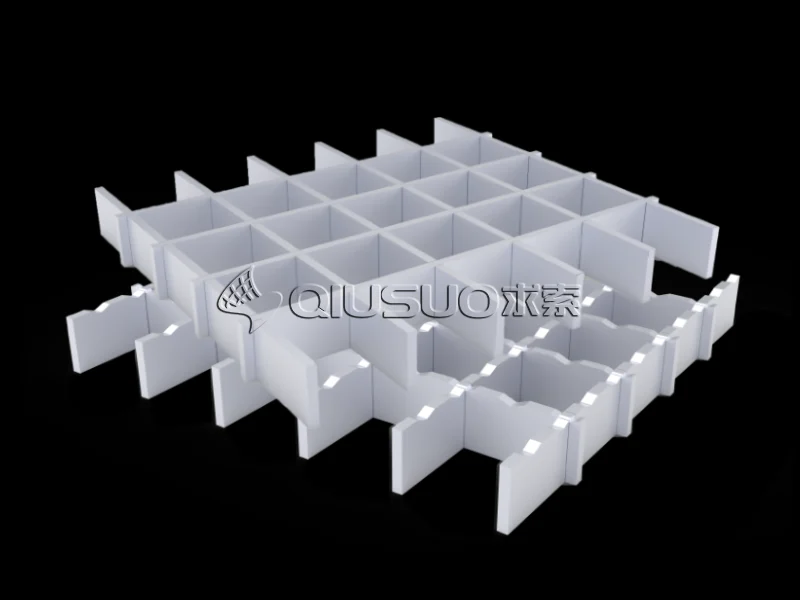

Pressure Locked metal bar grating

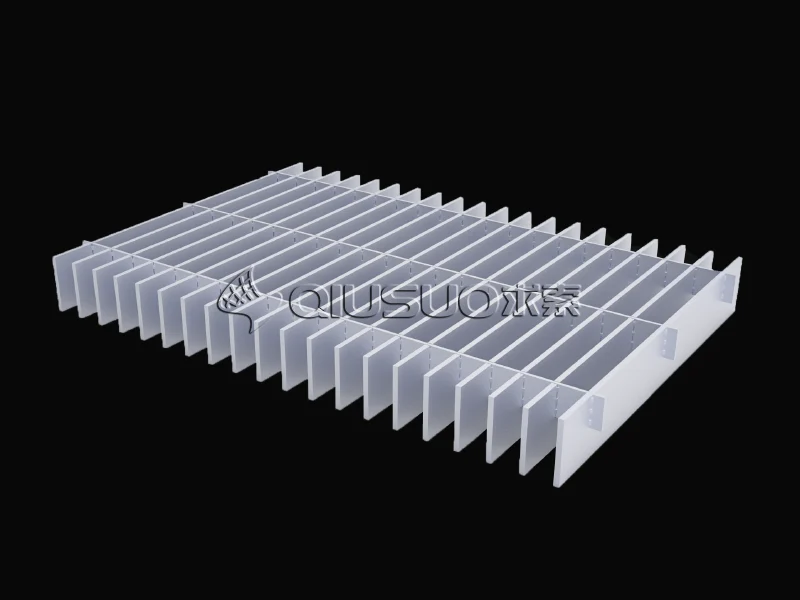

Welded metal bar grating

Features

• Robust structure. High load-bearing capacity and excellent impact resistance.
• Corrosion resistance. The surface can be treated with galvanizing, stainless steel finish, or coating to suit various environments.
• Excellent ventilation and drainage. The open design allows for good airflow and water drainage.
• Slip resistance and safety. The surface can be enhanced with anti-slip textures to improve walking safety.
• Lightweight and easy to install. Lightweight construction allows for convenient installation and maintenance.
• Aesthetic and durable. Clean appearance with long service life, offering both functionality and aesthetic appeal.

Applications

Metal bar grating is widely used for stair treads, walkway platforms, drainage trench covers, sunshades, observation towers, and bridge deck paving.

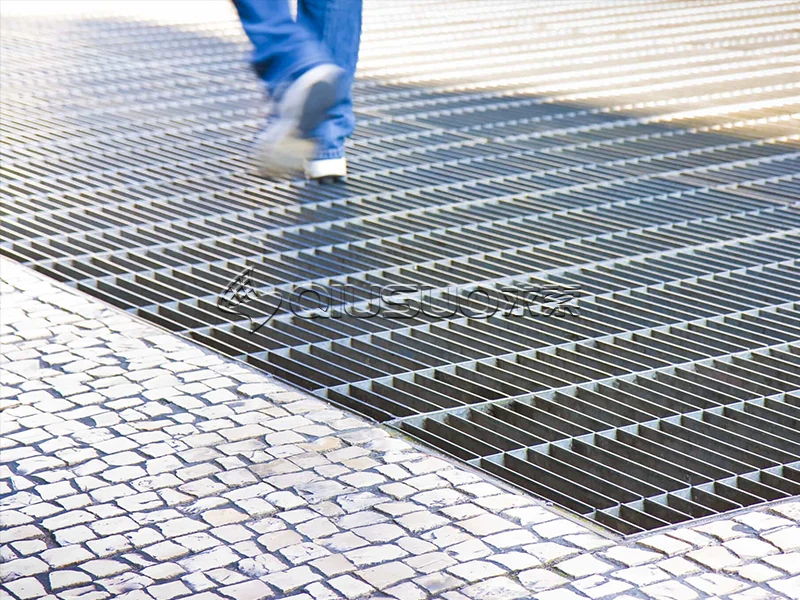

Drainage trench cover

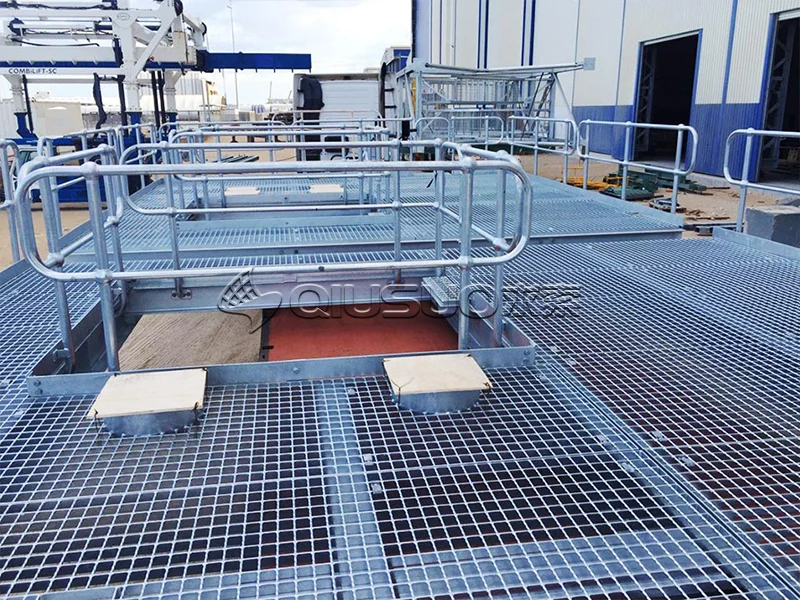

Walkway platform

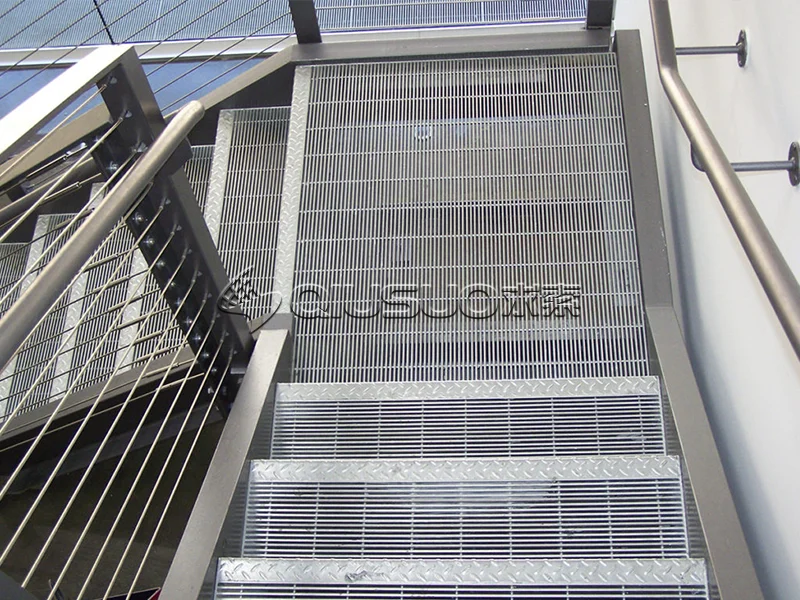

Stair tread

Cases Display Read more

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of metal bar grating.

Anodizing 6061 Aluminum Grating

Quality Control Read more

QIUSUO is committed to delivering aluminum expanded mesh of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest standards.

PMI test

Thickness inspection
