Wear-Resistant Crimped Wire Mesh for Mineral Screening

A mining industry service provider from Venezuela required crimped wire mesh for a screening project. The screen specifications were selected according to the required aperture, wire diameter, panel dimensions and installation requirements.

The mesh is produced from pre-crimped wires that form stable and uniform openings. For mining screening, this construction provides good rigidity under vibration while helping maintain consistent aperture sizes for material classification.

65Mn steel offers high tensile strength and wear resistance, making it suitable for abrasive screening conditions. Different crimping styles and edge configurations can also be selected to suit vibrating screen decks and installation arrangements.

For this order, the key dimensions and screen details were confirmed before production to ensure that the finished crimped wire mesh matched the customer's screening and installation requirements.

Basics Products Specification

• Product: Crimped wire mesh screen
• Material: 65Mn
• Wire diameter: 5 mm, 10 mm
• Aperture: 12.7 × 12.7 mm, 15.88 × 15.88 mm, 38.10 × 38.10 mm, 44.45 × 44.45 mm
• Weaving type: Double crimped
• Width (A): 2450 mm, hook to hook
• Length (L): 1850 mm, including edge shrouds and overlap
• Overlap: 25 mm on one side along the 1850 mm direction
• Hook edge reinforcement: Each hook edge reinforced with 6 rivets
• Hook edge: C-Hook, 45°
• Quantity: 200 pcs
• Order code: 6180

Finished Products & QC Photos

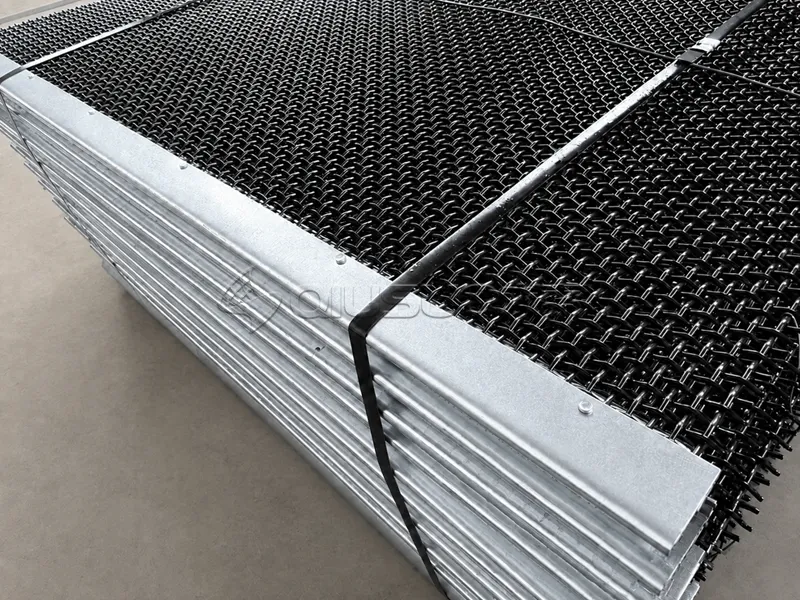

Detail display

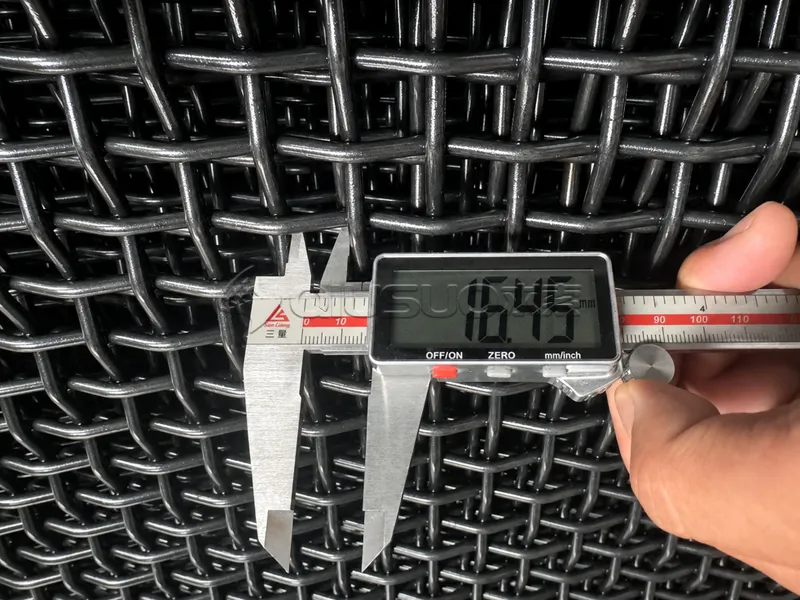

Aperture measurement

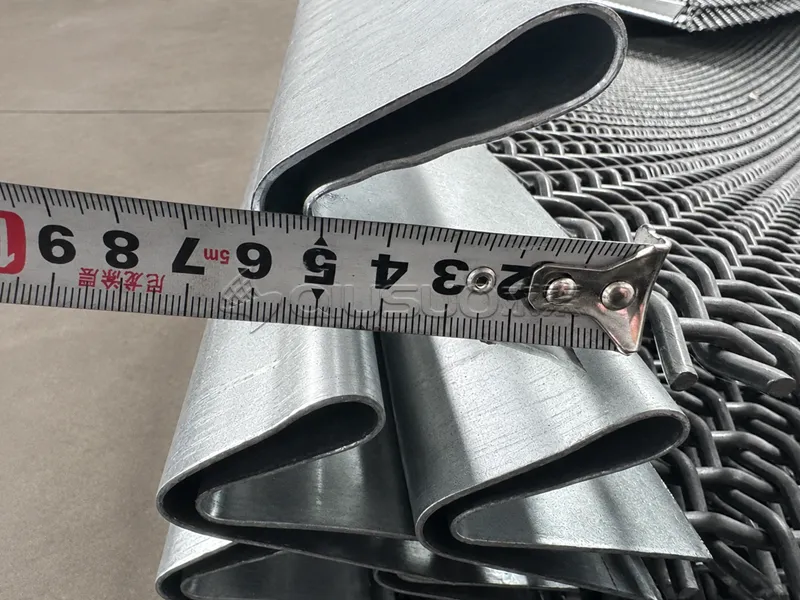

Hook measurement

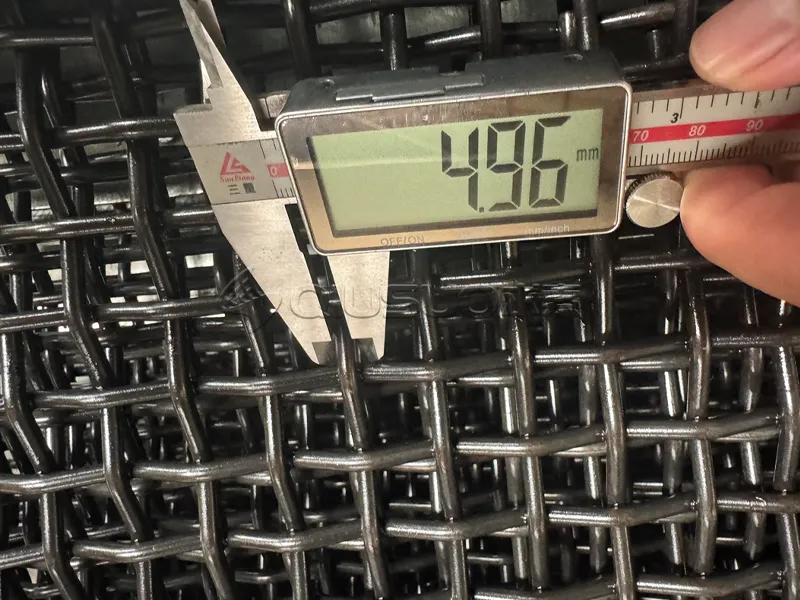

Wire diameter measurement

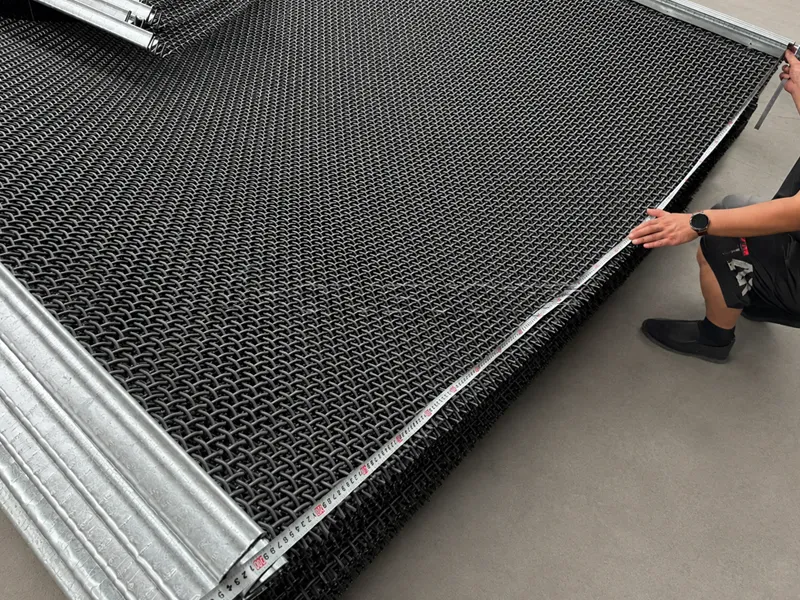

2450 mm width

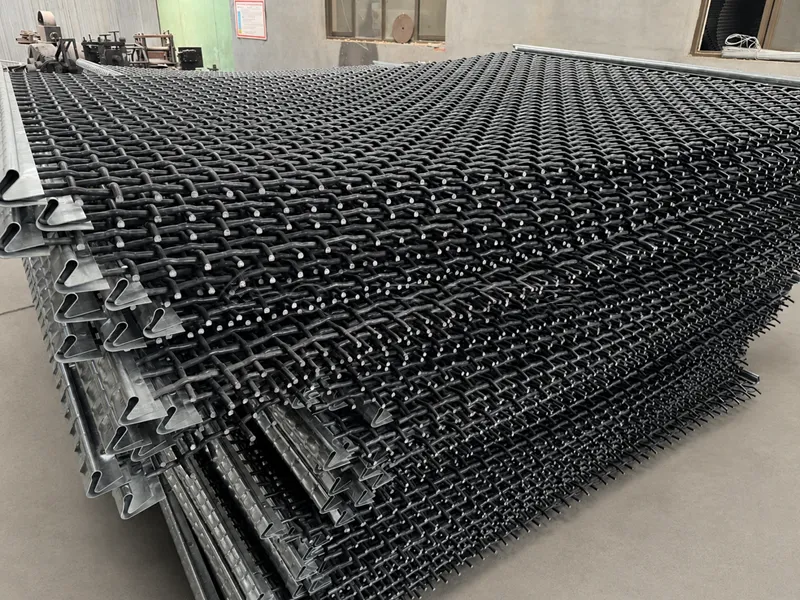

Product display
