Stainless Steel Wedge Wire Filter Nozzle Ideal For Liquid/Solid or Gas/Solid Separation

The wedge wire screen filtering nozzles is an efficient and durable fluid distribution and filtration device, specially designed for water treatment systems, chemical processes and industrial filtration scenarios.

Uniform water/gas distribution: Ensure that the medium (such as water, gas, or chemical solution) is evenly distributed within the filter tank or reactor.
Precision filtration: Solid particles are intercepted through wedge-shaped wire screen gaps to protect downstream equipment.
Anti-clogging design: The unique V-shaped screen slit structure enables self-cleaning and reduces maintenance frequency.

Type and Specifications

According to the appearance, there are mainly a few types of metal wedge wire screen filter nozzles:

Single Head wedge wire Filter nozzle
Double Head wedge wire Filter nozzle
Double flow rating Plate Type filter nozzles
Long handle filter nozzle

A few types of stainless steel wedge wire filter nozzle for water treatment applications

Type and Specifications

According to the appearance, there are mainly four types of metal wedge wire nozzle, Single Head wedge wire Filter nozzle, Double Head wedge wire Filter nozzle, Single Flow rating and double flow rating filter nozzle, long handle filter nozzle

A single head stainless steel wedge wire filter nozzle and a line drawings.

Single Head Wedge Wire Filter Nozzle

A double head stainless steel wedge wire filter nozzle and a line drawings.

Double Head Wedge Wire Filter Nozzle

A long handle tainless steel wedge wire filter nozzle and a line drawings

Long Handle Wedge Wire Filter Nozzle

A single flow rating and double flow flat plate rating filter nozzle and a line drawings

Flat Plate Flow Rating Filter Nozzle

Table 1: Specification of Single Head Wedge Wire Nozzle
Item	Model	Slot (mm)	Outline Dimension (mm)				Filtration Capacity		Material Grade
Item	Model	Slot (mm)	D	H	L	M (thread nipples)	Area (mm²)	Tons per hour	Material Grade
1	QSSN45-40	0.2–0.5	45	40	75	M20, M25, 3/4" NPT, 1" NPT, 3/4" BSPT, 1" BSPT	280	0.5 T/H	304, 321, 316L, 310S, 904L, C276, S32205, S32750, Titanium Gr.2
2	QSSN53-45	0.2–0.5	53	45	95	M20, M25, 3/4" NPT, 1" NPT, 3/4" BSPT, 1" BSPT	450	1.0 T/H
3	QSSN57-50	0.2–0.5	57	50	95	M25, M32, 1" NPT, 1-1/2" NPT, 1" BSPT, 1-1/2" BSPT	660	1.5 T/H
4	QSSN57-60	0.2–0.5	57	60	110		800	2.0 T/H
5	QSSN70-70	0.2–0.5	70	70	120		1200	3.0 T/H
6	QSSN82-50	0.2–0.5	82	60	150	M42, 1" NPT, 2" NPT, 2" BSPT	1200	3.0 T/H
Notes: Single head Wedge Wire Nozzle is equipped with a rubber gasket, a steel gasket and one or two stainless steel nuts of the same material. Nuts & Gaskets non needed for NPT BSTP nipples. Specifications not listed in the chart, processing production according to user requirements. M, NPT, BSPP, BSPT, G, PT thread are available. Single-head Filtler Nozzels can be high-pressure that has perforated pipe inside wedge wire screen. Thick flat covers available and and nuts can be welded onto the flat covers. We support high customization.

Type 2: Specification of Double Head Wedge Wire Nozzle
Item	Model	Slot (mm)	Outline Dimension (mm)				Filtration Capacity		Material Grade
Item	Model	Slot (mm)	D	H	L	M	Area (mm²)	Tons per hour	Material Grade
1	QSDN45-5-A	0.2–0.5	45	35	according to order	M24	330	0.5 T/H	304, 321, 316L, 310S, 904L, C276, S32205, S32750, Titanium Gr.2
2	QSDN45-5-B	0.2–0.5	45	45		M24	400	0.5 T/H
3	QSDN53-6-A	0.2–0.5	53	35		M24	400	1.0 T/H
4	QSDN53-6-B	0.2–0.5	53	45		M32	680	1.5 T/H
5	QSD57-7-A	0.2–0.5	57	40		M32	530	1.5 T/H
6	QSD57-7-B	0.2–0.5	57	50		M32	700	2.0 T/H
Notes: L is determined by the thickness of the perforated plate and the lining glue provided by the user. The water wedge wire nozzle is equipped with a rubber gasket, a steel gasket and a thin stainless steel nut of the same material. Specifications not listed in the chart, processing production according to user requirements. M, BSP, NPT, G, PT thread are available. Filtration Capacity depends on 0.2mm screen slot for reference. To learn more accurate information, please contact our sales engineer.

Table 3: Specification of Long Hand Wedge Wire Nozzle
Item	Model	Slot (mm)	Outline Dimension (mm)					Filtration Capacity		Material Grade
Item	Model	Slot (mm)	D	H	L	M	L1	Area (mm²)	Tons per hour	Material Grade
1	QSLN45-11-A	0.2–0.5	45	35	150	M20	according to the installation holes plate	330	0.5 T/H	304, 321, 316L, 310S, 904L, C276, S32205, S32750, Titanium Gr.2
2	QSLN45-11-B	0.2–0.5	45	45	160	M24		400	0.5 T/H
3	QSLN53-12-A	0.2–0.5	53	45	170	M24		510	1.0 T/H
4	QSLN53-12-B	0.2–0.5	53	50	180	M32		640	1.5 T/H
5	QSLN57-13-A	0.2–0.5	57	40	190	M32		630	1.5 T/H
6	QSLN57-13-B	0.2–0.5	57	50	200	M32		780	2.0 T/H
Notes: L1 is determined by the thickness of the perforated plate and the lining glue provided by the user. The water wedge wire nozzle is equipped with a rubber gasket, a steel gasket and one or two stainless steel nuts of the same material. Specifications not listed in the chart, processing production according to user requirements. M, G, BSPP pipe thread are available. Filtration Capacity depends on 0.2mm screen slot for reference. To learn more accurate information, please contact our sales engineer.

Table 4: Specification Of Plate Type Double Flowing Wedge Wire Nozzle
Item	Model	Screen Slot (mm)	Outline Dimension (mm)				Filtration Capacity		Material Grade
Item	Model	Screen Slot (mm)	D	L1	D1	L	Area (mm²)	Tons per hour	Material Grade
1	QSPN82-A-1	0.2/0.25/0.3/0.4/0.5	82	50	50	130	1300	3.0 T/H	304, 321, 316L, 310S, 904L, C276, S32205, S32750, Titanium Gr.2
2	QSPN82-A-2	0.2/0.25/0.3/0.4/0.5	82	40	50	130	1100	2.5 T/H
3	QSPN82-A-3	0.2/0.25/0.3/0.4/0.5	82	50	35	130	1300	3.0 T/H
4	QSPN82-A-4	0.2/0.25/0.3/0.4/0.5	82	40	35	130	1100	2.5 T/H
Notes: There is a rotating impeller inside the double flow rate nozzle. Filtration Capacity depends on 0.2mm screen slot for reference. To learn more accurate information, please contact our sales engineer.

Advantage & Features

QIUSUO is making and supplying the different wedge wire sizes and slot sizes can suit different class filtration, V-shaped wires winding welding on the numbers of support profiles wires, which owns fine features:

Continuous & uniform slot design
Large flow rate
Non-clogging high filtering efficiency
Economical due to corrosion and rust resistance long life
Easy to install and replacement
High temperature resistance
Structure is strong and durable
Diversified structure to meet different design requirements

Wedge wire water filter nozzle installed on perforated plate

Wedge wire water filter nozzle installation schematic diagram

Wedge wire water filter nozzle installed on perforated plate in water treatment tanks

Key Applications

Wedge Wire Filter Nozzles is engineered for liquid/solid and gas/solid separation processes, our wedge wire nozzles deliver superior media retention and flow distribution across industrial filtration systems.

Table 5: Key Applications
Industry	System Type	Media Protection	Technical Advantages
Power Plants	Demineralizers/Condensate Polishers	Ion Exchange Resin (≤ 0.3 mm particle retention)	316L SS construction, pH 1–14 resistance
Oil & Gas	Produced Water Treatment	Greensand / Activated Carbon (99.5% retention)	10-bar working pressure, API 6A compliance
Chemical Processing	Fixed Bed Reactors	Catalyst Beads (Φ0.5 – 3 mm)	Hastelloy C-276 option for extreme corrosion
Food & Beverage	CIP Filter Columns	Filter Aid (Diatomaceous Earth)	EHEDG-certified surface finish (Ra ≤ 0.8 μm)

Products Photo

QIUSUO could help to design according to the application and requirement. All the above List are the normal size. Customized size is possible, slot range: 0.02-2mm, diameter, screen height, length, thread could produce according to actual requirement and application.

Many stainless steel wedge wire filter nozzle in a basket

Many long handle stainless steel wedge wire filter nozzle in a basket

Many flat plate rating stainless steel wedge wire filter nozzle in a box

Many single head stainless steel wedge wire filter nozzle in a bag

Cases Display Read more

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of wedge wire screen filtering nozzles.

A caliper is used to check the overall length of the wedge wire screen nozzle.

Wedge Wire Screen Nozzle For Fertilizer Plant
Click to Learn More

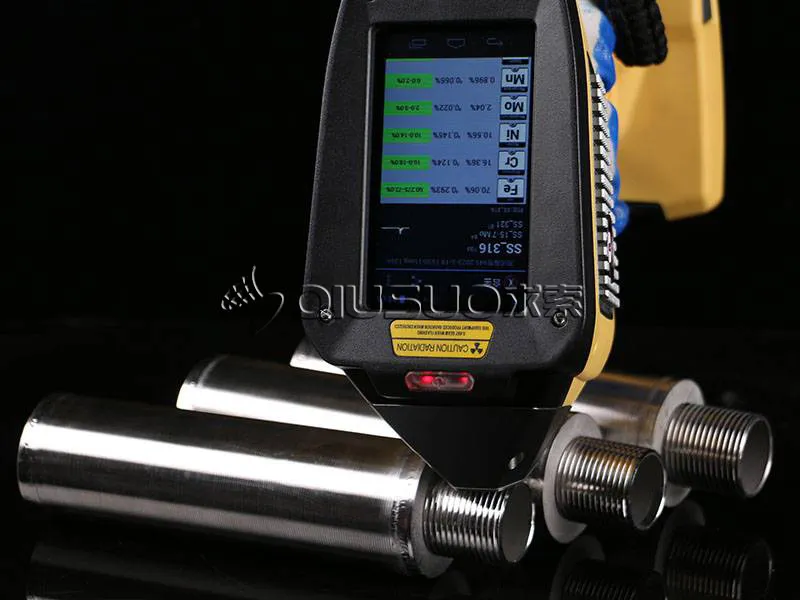

PMI tests a ASTM 316 Material grade20 microns slots wedge wire screen filters

20 microns wedge wire screen filter
Click to Learn More

Two flat plate wedge wire filter nozzle with a detail of flat plate.

Flat Plate Double Flow Rating Filter Nozzle for Filtration Tank
Click to Learn More

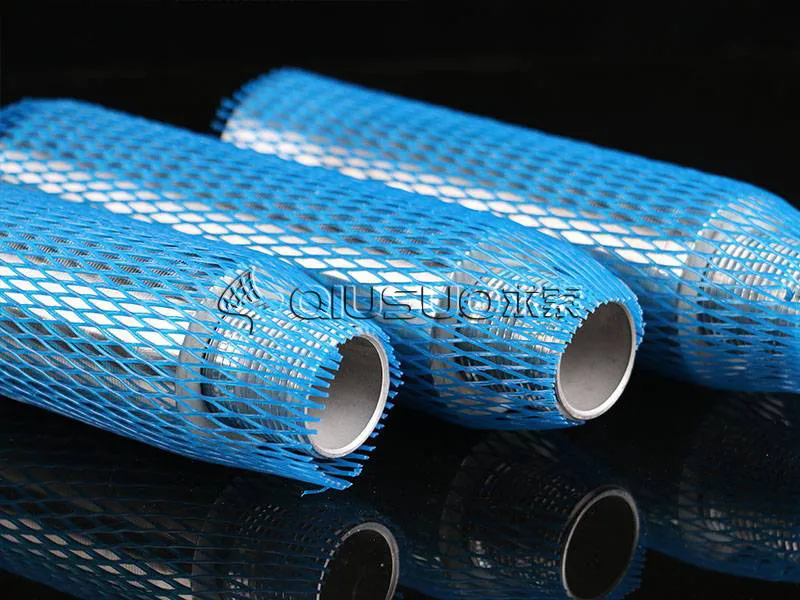

SS316L long handle wedge wire screen filter nozzle prepare packing photos
