Reverse Plain Dutch Weave
In Reverse Dutch Weave Wire Mesh, thin warp wires are positioned close to each other and the thicker weft wire is woven in at a defined distance. The resulting higher strength in the warp direction makes popular for use as a filter belt.
Comparing with the normal plain Dutch weave mesh, the coarser wire in the weft direction and the finer wire in the warp direction, this weave can supply better filtration rate.
Our stainless steel reverse Dutch belts are made of high quality, high strength stainless steel wires.
Specifications
Weave of Type | Mesh/Inch | Wire Diameter | Nominal Micron |
---|---|---|---|
mm | μm | ||
TRD | 48 ×10 | 0.50 × 0.50 | 400 |
TRD | 72 × 15 | 0.50 × 0.50 | 300 |
TRD | 132 ×14 | 0.35 × 0.45 | 200 |
TRD | 132 × 18 | 0.35 × 0.44 | 180 |
TRD | 152 × 24 | 0.27 × 0.40 | 160 |
TRD | 152 × 30 | 0.27 × 0.30 | 130 |
RPD | 250 ×40 | 0.15 × 0.25 | 90 |
RPD | 260 × 40 | 0.15 × 0.27 | 125 |
RPD | 280 × 70 | 0.089 × 0.21 | 45 |
RPD | 325 × 39 | 0.13 × 0.24 | 55 |
RPD | 600 ×125 | 0.043 × 0.12 | 20 |
RPD | 720 × 150 | 0.035 × 0.107 | 15 |
Features
The Stainless Steel Reverse Dutch Belts cloth is mechanically strong with a high throughput and it performs particularly well in high pressure vertical and horizontal filter leaf applications where backwashing and filter cake removal are important.
Applications
Stainless steel reverse Dutch belts are also known as stainless steel reversed Dutch wire mesh, auto mesh belt filter, reversed Dutch wire mesh, reversed Dutch mesh belt filter, and auto mesh belt filter, automatic belts strainer and etc..
Reverse Plain Dutch Weave (RPD) Stock List
Weave of Type | Mesh/Inch | Wire Diameter | Mesh thickness | Refer. Net Weight |
---|---|---|---|---|
mm | mm | KG per Square Meter | ||
TRD | 72 × 15 | 0.45 × 0.53 | 1.7 | 4.9 |
TRD | 120 × 17 | 0.35 × 0.45 | 1.3 | 4.4 |

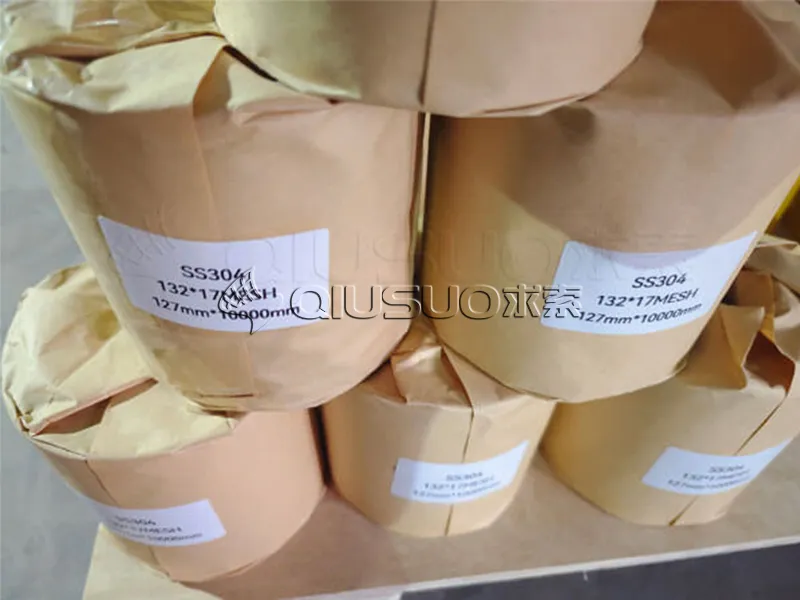

TRD | 132 × 17 | 0.32 × 0.45 | 1.23 | 4.1 |
TRD | 150 × 17 | 0.30 × 0.45 | 1.2 | 4.1 |
TRD | 152 × 24 | 0.27 × 0.40 | 1.1 | 3.7 |
TRD | 160 × 18 | 0.27 × 0.45 | 1.15 | 3.9 |
TRD | 180 × 18 | 0.27 × 0.45 | 1.15 | 4 |
TRD | 200 × 40 | 0.15 × 0.27 | 0.7 | 2.1 |
TRD | 260 × 40 | 0.15 × 0.27 | 0.67 | 2.05 |
TRD | 300 × 40 | 0.13 × 0.27 | 0.67 | 2.15 |
TRD | 350 × 40 | 0.12 × 0.27 | 0.64 | 2.1 |
Twilled Reverse Dutch Weave(TRD) Stock List
Weave of Type | Mesh/Inch | Wire Diameter | Nominal Micron | Refer. Net Weight |
---|---|---|---|---|
mm | μm | KG per Square Meter | ||
RPD | 130 × 32 | 0.2 × 0.4 | 90 | 2.5 |
RPD | 175 × 45 | 0.15 × 0.3 | 100 | 2 |
RPD | 290 × 70 | 0.09 × 0.2 | 40 | 1.2 |
RPD | 600 × 100 | 0.04 × 0.15 | 30 | 0.85 |
RPD | 625 × 108 | 0.04 × 0.14 | 25 | 0.95 |
RPD | 625 × 125 | 0.04 × 0.135 | 20 | 1.05 |
RPD | 720 × 140 | 0.035 × 0.1 | 20 | 1.05 |
We offer a wide range of metals and alloys to provide the best material or combination of materials for the filter mesh. Contact us today for more information or a detailed quote.
