Rotating Wedge Wire Screen Cylinder For Solid Liquid Separation

Our wedge wire screen cylinder can be manufactured for stationary/static processing, and mostly be driven on trunnion for a rotating effect on separating solid liquid materials.

Wedge wire screen cylinders can be manufactured in almost unlimited height and diameter with the wire running facial or long-slot rolled to the inside diameter or the outside of the cylinder. Edge type of wedge wire screen cylinder can be welded End ring or Flanges.

There are five pieces of stainless steel wedge wire screen cylinder for farm feces solid liquid separation

Technical Information and Specifications

Material: stainless steel wire or galvanized wire.
Surface profile: triangle wire.
Support profile: triangle wire, round bar and wedge wire.

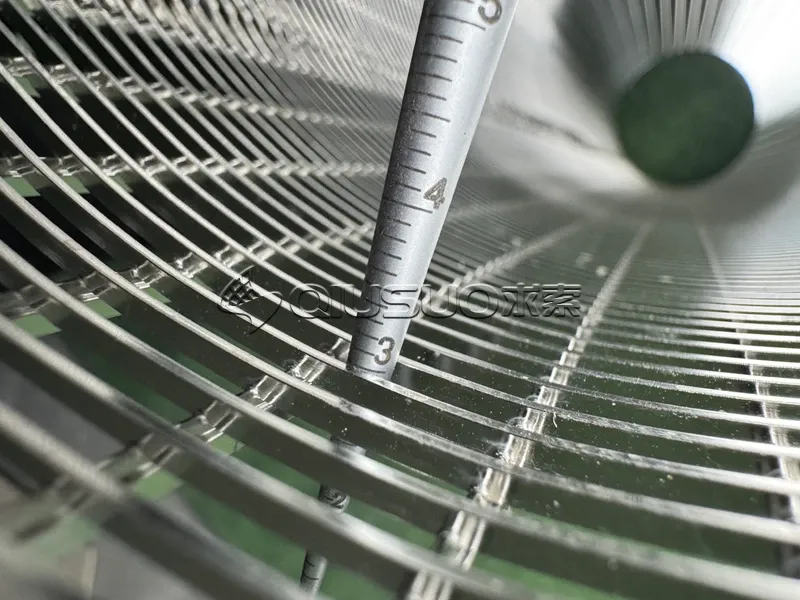

Slot size: 0.05 mm - 35 mm.

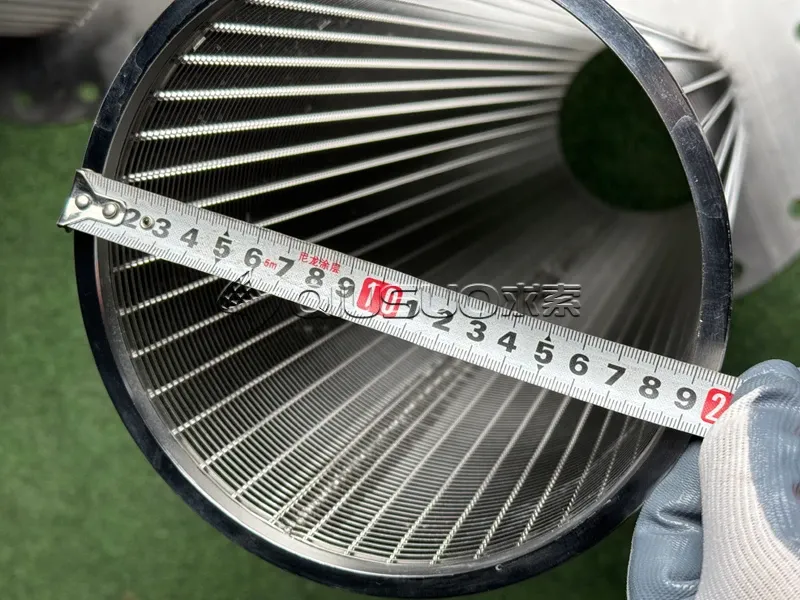

Cylinder diameter: 50mm - 1200 mm.

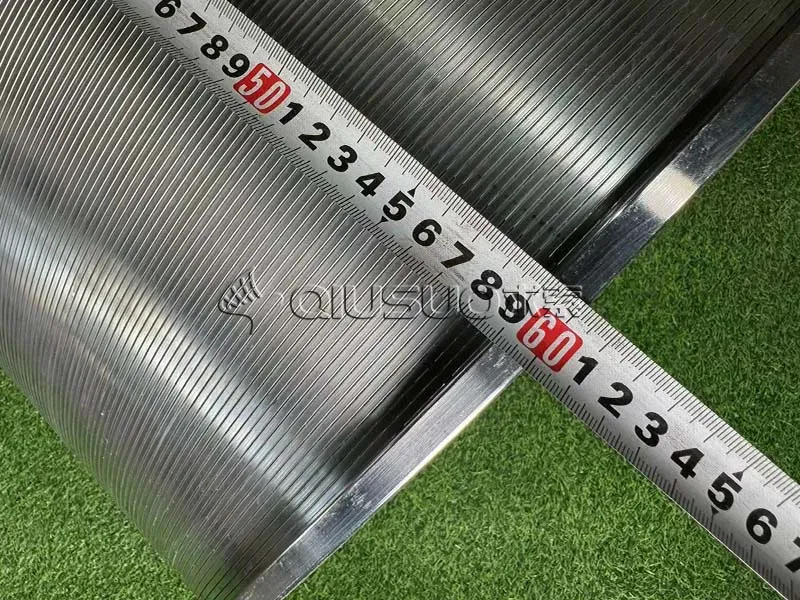

Length: up to 6 m.

Feature and Advantages

Rotating wedge wire screen cylinder is liked by farm, water treatment, food, paper making industry, power plant, steel plant and etc. due to the following advantages:

Less clogging, good dewatering
High strength, high durability
Broad flexibility in design
Easy Maintainability
highest standard precision
Corrosion and rust resistance.
Good machine capability.
Durable and long lasting.
Standard and reinforced type for choice.

Samples Display

It is rotating screw press wedge wire screen for beef cattle manure separator.

This Rotating Wedge Wire Screen Cylinder for Blast Furnace Slag Flushing Water Filter Screen

Pig dung solid liquid separator screen rotating wedge wire screen

Coking Wastewater Self-Cleaning Wedge wire Screen

Stainless steel Power Plant Boiler Cooling Water Filter Screen

Applications

Our complete range of stainless steel wedge wire screen cylinders can be used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.
