65MN Crimped Wire Mesh for Mining Screens with High Wear resistance

Mining Screen, also named stone crusher screen Vibrating Sieving Screen Mesh, Crusher Sieving Screen Mesh. Mining Screen Mesh is usually made of 65MN wires of the same diameter that are crimped to form precise square openings and achieve maximum rigidity. Its high tensile strength, excellent vibration resistance and long service life make it obtain accurate screening results and services at best price, so that 65MN crimped wire mesh is a perfect choice stone crusher screen and mining screens.

There are Mining working photo and red wire mesh and black crimped mesh.

Material Characteristics

65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Comparing with carbon steel,45#,50#,55#,60#,70#,72A material grade, 65mn Material have the highest Manganese content and high carbon, which let is have High Wear resistance and Tensile strength. Stainless steel is also fine material, but price is too expensive for batch quantity uses. So that 65mn crimped wire mesh is a great screens for mining, quarrying, vibrating industry.

Table 1: 65MN Material Chemical Composition (%)
Material	C	Si	Mn	Cr	Ni	Cu
65Mn steel Example: 6.5mm	0.62-0.70	0.17-0.37	0.90-1.20	≤0.25	≤0.30	≤0.25
65Mn steel Example: 6.5mm	0.66	0.25	0.98	0.04	0.01	0.03

Weaving types and Edge types

Double Crimp

Flat Top

Lock Crimp

Plain hooked

Reinforced shroud

Double folded reinforced shroud

End tension reinforced shroud

Inside reinforced formed

Welded bent plate

Specification Data

Material: 65Mn Steel
Wire diameter: 0.5-12.7mm
Weaving type: Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommend for Mining Screen Usage)
Aperture/opening: 1.0mm-150mm
Size: in sheet or in roll, width up to 6meter, length up to 100meters.
General sheet size: 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm.
Surface finishing: Mill finish, Anti-rust oil spraying, PVC coating

Table 2: 65MN Square Holes Crimped Wire Mesh Specification
Item#	Mesh Aperture	Wire Dia.	Item#	Mesh Aperture	Wire Dia.	Item#	Mesh Aperture	Wire Dia.
1	1.0mm	0.6mm 0.7mm 0.8mm	16	12.5mm	4mm 5mm 6mm	31	28.0mm	6mm,7mm,8mm
2	1.5mm	0.9mm 0.8mm 1mm	17	13.0mm	4mm 5mm 6mm	31	30.0mm	6mm 7mm 8mm
3	1.6mm	1.2mm 1.3mm 1.4mm	18	14.0mm	4mm 5mm 7mm	32	32.0mm	6mm 7mm 8mm
4	2.0mm	1.5mm 1.6mm 1.8mm	19	15.0mm	4mm 5mm 7mm	33	35.0mm	6mm 7mm 8mm
5	3.0mm	1.8mm 1.9mm 2mm	20	16.0mm	5mm 6mm 7mm	34	38.0mm	6mm 7mm 8mm
6	4.0mm	2mm 2.5mm 3mm	21	17.0mm	5mm 6mm 7mm	35	40.0mm	6mm 7mm 8mm
7	5.0mm	2mm 2.5mm 3mm	22	18.0mm	5mm 7mm 8mm	36	45.0mm	7mm 9mm 10mm
8	6.0mm	2.5mm 3mm 4mm	23	19.0mm	5mm 7mm 8mm	37	50.0mm	8mm 9mm 10mm
9	7.0mm	2.5mm 3mm 4mm	24	20.0mm	5mm 7mm 8mm	38	55.0mm	8mm 9mm 10mm
10	8.0mm	3mm 4mm 5mm	25	21.0mm	6mm 7mm 8mm	39	60.0mm	10mm 11.2mm 12.7mm
11	9.0mm	3mm 4mm 5mm	26	22.0mm	6mm 7mm 8mm	40	65.0mm	10mm 11.2mm 12.7mm
12	9.5mm	3mm 4mm 5mm	27	23.0mm	6mm 7mm 8mm	41	75.0mm	10mm 11.2mm 12.7mm
13	10.0mm	3mm 4mm 5mm	28	24.0mm	6mm 7mm 8mm	42	80.0mm	10mm 11.2mm 12.7mm
14	11.0mm	3mm 4mm 5mm	29	25.0mm	6mm 7mm 8mm	43	90.0mm	10mm 11.2mm 12.7mm
15	12.0mm	4mm 5mm 6mm	30	26.0mm	6mm 7mm 8mm	44	100.0mm	10mm 11.2mm 12.7mm

Products Photos

QIUSUO has enough experience and ability to make widely specifications, good quality and quick delivery time.

Double Crimped 65MN Mining Screen Anti-Rust Oil Spaying

Lock Crimped 65MN Mining Screen Anti-Rust Oil Spaying

4mm Mesh Aperture 3mm Wire Diameter 65MN Mining Screen

38mm Mesh Aperture 6mm Wire Diameter 65MN Mining Screen

There is a 2mm mesh aperture red color mining screen and a caliper

2mm mesh 1mm Wire Red 65MN Mining Screen

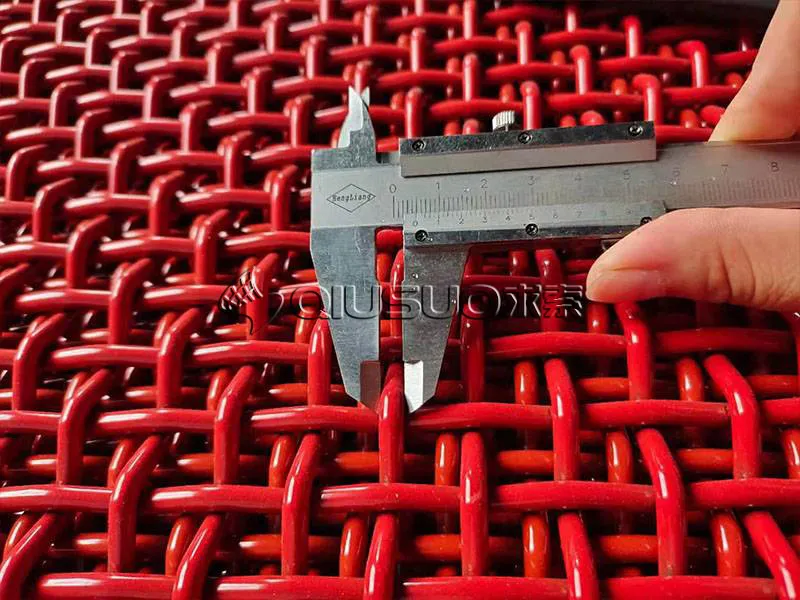

There is a 12mm mesh aperture red color mining screen and a caliper

12mm Mehs 5mm Wire Red 65MN Mining Screen

There is a piece of 65mn mining screen for vibrating machine

65MN Crimped Wire Mesh for Vibrating

There is a piece of 65mn crimped wire mesh for Quarry Rock Screen Mesh

65Mn Quarry Rock Screen Mesh

1220mm width 65mn crimped mesh in roll of 30meteers

1220m width 65mn crimped mesh in roll

2.5mm wires diameter 65mn crimped mesh in roll of 30meteers

2.5mm wires 65mn crimped mesh in roll

many pallets of 65mn high carbon steel crimped mesh sheets be loading in container

crimped mesh sheet package and loading

many rolls of high carbon steel crimped wire mesh rolls be loading in container

crimped mesh rolls package and loading

Benefits of 65MN Mining Screen

Excellent wear resistance, sturdy mesh construction, Longer functional life.
Flat top screens, double crimp screens and lock crimp screens are available
65MN Mining Screen is pre-crimped wire cloth that is consisted of accurate openings and is woven much tighter than the normal weave.
And the 65MN Mining Screen made by QIUSUO is promised accurate dimensions and mesh aperture, corrosion resistant surface finish and black &bright surface.

Applications

65MN crimped wire mesh is usually ideal for vibrating screens and many other applications where sizing becomes significant.

There are many great usages such as:

Mining Industry:
- Used as screening materials for ore classification and separation
- Used as protective barriers and nets for mines and ore crushers
Construction & Infrastructure:
- Used as slope protection nets in construction projects such as highways, railways, and dams
- Used as mesh reinforcement and reinforcing meshes in foundation and infrastructure engineering
Environmental Protection & Water Treatment:
- Used as filtration screens for industrial wastewater and sewage treatment equipment
- Used as cover nets and filtration nets in landfills
Agriculture & Horticulture:
- Used as protective nets for greenhouses and farmland fences
- Used as support nets and decorative nets for horticultural plants
Industrial Filtration & Separation:
- Used for filtration and separation in industries such as chemical, metallurgy, and food
- Used as protective nets and filtration screens in mechanical equipment
Transportation:
- Used as separation meshes and decorative meshes for cars and trucks
- Used as safety protection nets in subways and train stations
Power & Telecommunications:
- Used as protective and separation nets for power equipment
- Used as decorative fences in telecommunications equipment rooms

Cases Display

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of 65MN crimped wire mesh.

A pile of 65MN crimped wire mesh with a drawing on the top

65MN Crimped Wire Mesh for Mining

A pile of crimped wire mesh in a wooden box

Crimped Wire Mesh With Reinforced Shroud Banded Edge

65MN crimped wire mesh screening package

65MN Crimped Wire Mesh for Brick Factory

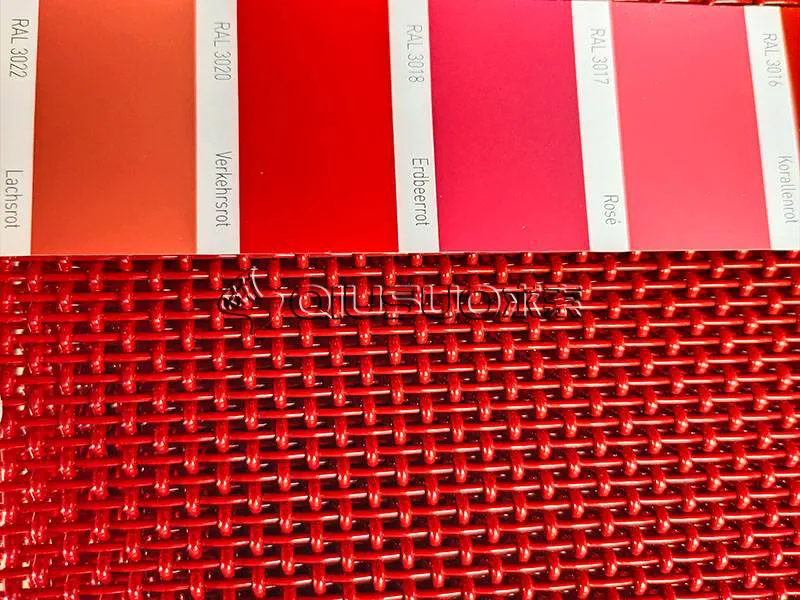

Powder coating 65MN screening
