Super Flat Wedge Wire Screen Panels For Widely Applications.

Our flat wedge wire screen panels are made by welding our patented V-shaped wire onto various sizes and shapes of support rods. This process creates a slot that enlarges inwardly, creating a large open area and clog-resistant surface. Our continuous welding method meets the most demanding standards for ruggedness, durability, resistance to abrasion, consistency and slot openings

Type of Flat Wedge Wire Screen Panels

Flat Wedge Wire Screen Square Panels

Flat Wedge Wire Screen Round Panels

Vee Profiles Wires

Square Shapes Support Wires

Technical Information

• Material. Stainless steel 304/316L/321/310S, Duplex steel 2205/2507, Hastelloy, Titanium alloy, etc.
• Slot size. 0.02 mm – 10 mm.
• Pitch. 10 mm – 100 mm.
• Surface profile wire length. Up to 3,000 mm.
• Support profile wire length. Up to 4,000 mm.
• Surface profile type. Triangular (V-shaped, wedge) wires.
• Support profile type. Triangular (V-shaped, wedge), square wire, round rod, flat bar, and water-drop.
  Triangular

  Square Wire

  Round Rod

  Flat Bar

  Water-Drop

Product Features of flat wedge wire screen panels

• High Open Area. Typical open area ranges from 30% to 60%, depending on the specific application.
• Uniform Aperture Sizing. The spacing between the wires is precisely controlled to achieve consistent, uniform aperture sizes.
• Durability and Longevity. The robust construction and corrosion-resistant materials give flat wedge wire screens exceptional durability.
• Easy Cleaning and Backflushing. The smooth, straight-through flow path facilitates easy cleaning and backflushing to remove accumulated.
• Customizable Design. Flat wedge wire screens can be custom-designed to fit specific equipment and process requirements, parameters like wire diameter, aperture size, panel size, and frame can be tailored to the application.

Usages

• Solid-liquid separation
  The V wire screen panels is solid-liquid separator adopts wedge-shaped technology, which is not easy to block, easy to backwash and corrosion-resistant. The products are widely used in spiral extruders, dry and wet separators, solid-liquid separators and so on in pig farms, cattle factories and other breeding bases.
• Gas-solid separation
  V wire screens used for Drilling for oil, gas and Wells, well known for great strength, long service life and a high level of adaptability
• Architectural wall cladding, fence, gates

Versatile Applications

Flat wedge wire screens are widely used in industries such as water treatment, mining, food processing, and chemical processing.They are effective for separating, filtering, and classifying a variety of solid-liquid and solid-solid mixtures.

• Mining. It is used for screening and grading raw materials such as ore and sand. It can effectively filter out impurity particles and improve product purity.
• Chemical. It is used for the separation and extraction of raw materials such as chemicals and food additives. It can filter fine particulate matter and improve product quality.
• Pulp & paper. It is used for pulp purification by removing impurity fibers.
• Food & beverage. It is used for the filtration and separation of raw materials such as wine, syrup, and juice to ensure clean and high-purity products.
• Wastewater treatment. It serves as filtration equipment for wastewater treatment and sludge dewatering to effectively remove suspended particles.
• Power. It is used for flue gas dust removal and filtration processes in power plants.
• Metallurgical. It is used for slag removal and filtration processes in metal smelting.

Cases Display Read more

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of pressure screen drum.

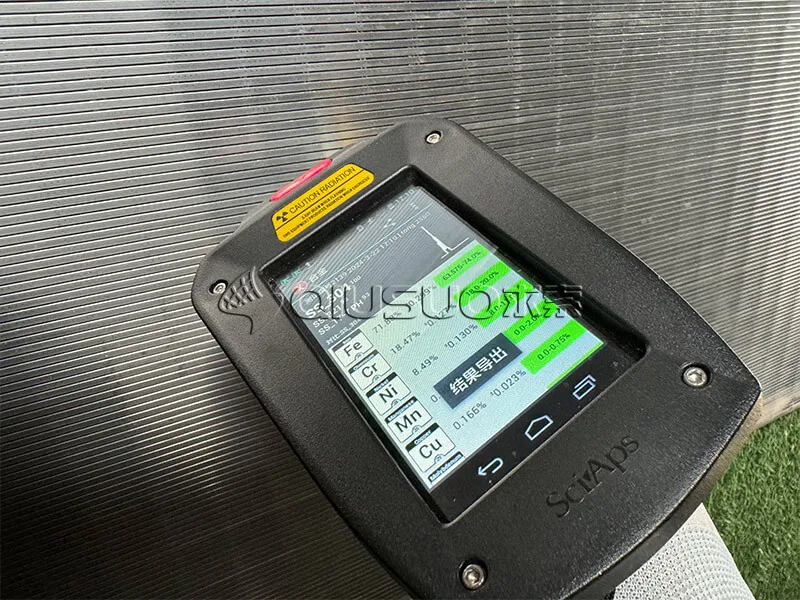

Quality Control Read more

QIUSUO is committed to delivering wedge wire intake screen of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest standards.

Wire diameter inspection

Slot inspection

Width inspection
