Wedge Wire Intake Screens – T Type, I Type, Drum Type & Others

A wedge wire intake screen consists of a cylindrical or flat panel made of stainless steel wires that are shaped into a V-shaped profile. These wires are welded together at precise intervals to form slots or gaps between them. The size of the slots can be customized based on specific application requirements.

These water intake screens are utilized in the intake systems of pumps, wells, and reservoirs to prevent the entry of debris that could damage equipment or disrupt operations.

Wedge wire intake screens offer several advantages over other types of screens. They have a higher open area, allowing for increased flow rates and reduced pressure drop. The V-shaped profile of the wires provides excellent mechanical strength, allowing the screen to withstand high pressures and heavy loads without deformation. The precise slot openings provide accurate particle retention, ensuring efficient filtration. Additionally, the screens are resistant to corrosion, making them suitable for use in harsh environments.

A piece of T type wedge wire intake screen on black background.

Intake Screen Types

We supply different types of intake screens to meet different working conditions and piping systems. Profile wires, slot openings, screen sizes and flange types are all flexible and customizable.

Here are four main types of intake screens. You can review the comparison of four types of intake screens to decide which one is best for you.

T Type

I Type

Drum Type

Small Pipe Type

Specifications

Material: stainless steel 304/316, Duplex steel 2205, Super duplex steel 2507, and others
Slot size: ranges from 0.1 mm to 10 mm (0.004" to 0.4") and 3 mm (0.12") is the most common used.
Screen Diameter: 25 mm to 1500 mm
Wedge wire sizes: 1 × 2 mm, 1.5 × 2.5 mm ,2 × 3 mm, 2 × 4 mm, 3 × 5 mm
Support rod sizes: 2×3 mm, 3×5 mm, D5 mm, D6 mm, D8 mm, D10 mm

Table 1: The common specifications of passive intake screens
Type	Screen Diameter	Overall Length	Outlet diameter	Backwash Diameter
T Type Intake Screen	1400 mm	4600 mm	DN900	DN200
	500 mm	1300 mm	DN200	DN50
	600 mm	1500 mm	DN300	DN50
	800 mm	2000 mm	DN400	DN100
I Type Intake Screen	500 mm	1000 mm	DN200	DN50
I Type Intake Screen	800 mm	1500 mm	DN300	DN50
Drum Type Intake Screen	550 mm	550 mm	DN300	DN50
Drum Type Intake Screen	800 mm	800 mm	DN300	DN50
Small Pipe Intake Screen	150 mm	600 mm	DN50	1/2"
Small Pipe Intake Screen	80 mm	200 mm	DN100	/

Notes:

The chart list is for reference. Final products will be confirmed based on your design drawings or our suggested drawings.
More profiles wires, slot openings, screen sizes, flange types are available
More Outlet sizes and overall screen geometry can be tailored to your application, and the guide rail options available for screens with retrieval system
Airburst backwashing inlet piping shown for reference, the size or orientation will be tailored to site layout

Features & Benefits

Airburst backwashing
An airburst blackwashing system can be supplied as part of the passive intake screen design in order to clear the accumulated debris from the screen surface.
Low maintenance
Thanks to the Non-plugging Vee profiles wires, intake screens is an excellent passive device that is easy cleaning and have no moving parts to allow for efficient and effective fabrication with little to no maintenance.
Maximum water flow
Continuous slots is minimal pressure drop. And V-shaped surface wires let the intake screen large open area, minimum clogging and maximum water flow.
Customizing
Multiple designs and configurations accommodate deep to shallow depths.
T intake screens, I type intake screens, Half intake screens, drum intake screens, Small Pipe intake screen, Flat Panel intake screen with pointed sizes, slots, material grade, connection flanges are supported.
Fine Materials
Our materials are In line with international standards, large steel mill manufacturing fine corrosion resistance and durable life.
Caring Animals
Intake screens are regarded as the first safeguard of intake system to keep fish safe and protect pumps and turbines from harmful debris. They are both efficient and environmentally safe.
Airburst backwashing
An airburst blackwashing system can be supplied as part of the passive intake screen design to clear accumulated debris from the screen surface.
Low maintenance
Thanks to the non-plugging Vee profiles wires, the intake screens are an excellent passive device that is easy to clean and has no moving parts to allow efficient and effective fabrication with little to no maintenance.
Maximum water flow
Continuous slots are minimal pressure drops. And V-shaped surface wires allow the intake screen large open area, minimum clogging and maximum water flow.
Customizing
Multiple designs and configurations accommodate deep to shallow depths. T intake screens, I type intake screens, Half intake screens, drum intake screens, Small Pipe intake screen, Flat Panel intake screen with pointed sizes, slots, material grade, connection flanges are supported.
Fine Materials
Our materials are in line with international standards, large steel mill manufacturing, fine corrosion resistance and durable life.
Caring Animals
Intake screens are considered the first safeguard of intake systems to keep fish safe and protect pumps and turbines from harmful debris. They are both efficient and environmentally safe.

Applications

Intake screens provide continuous water extraction from rivers, lakes, dams and oceans.

They are widely used in the following industries:

Municipal water supply
Water treatment plants
LNG plants
Desalination
Paper & pulp
Sugar mills
Nuclear power plants

Related Case Study

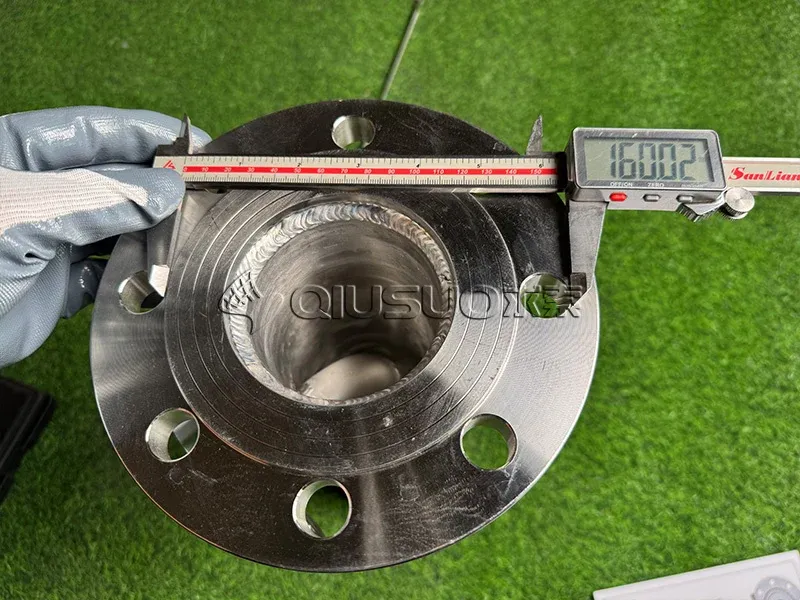

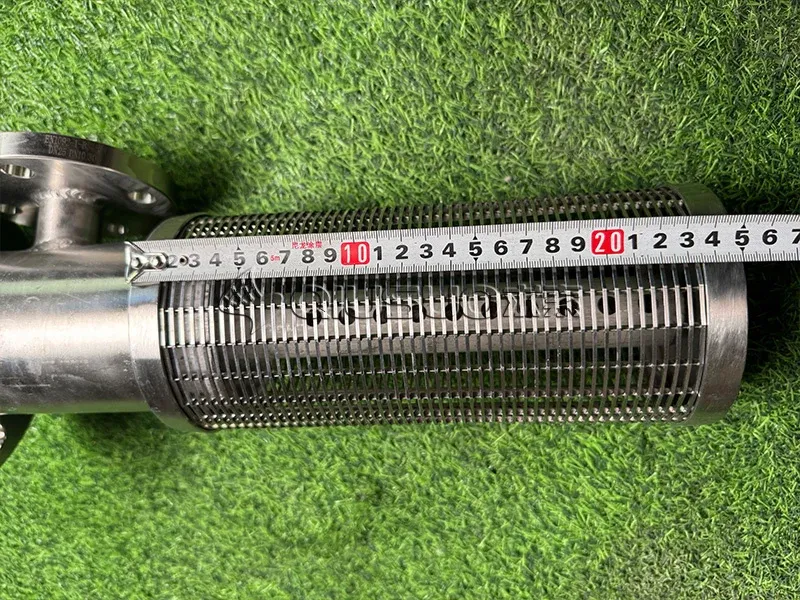

This is a Duplex 2507 small intake screen with 0.5mm 200mm long screen 150mm long DN50 Sch40 inlet pipe

Duplex 2507 small intake screen
Click to Learn More
