Stainless Steel Welded Wire Mesh Super Corrosion Resistance And High Strength Mesh

Stainless steel welded wire mesh can last long for the corrosion resistance compared to galvanized welded wire meshes. There is no need with surface treatment, it itself has the feature of corrosion resistance.

Due to the wires of stainless steel welded wire mesh is physically welded at each intersection by advanced, so that our stainless steel welded wire mesh will remain intact and rigid, uniform in appearance.

Aside from stainless steel’s corrosion resistance and high strength, stainless steel welded wire mesh is an ideal option for general industrial use because welded mesh can be cut down to smaller sizes, like rectangles, squares or discs, without fraying, which can occur when fabricating with a woven mesh.

Like virtually all wire mesh and wire cloth, stainless steel welded wire mesh lends itself for use in architectural, agricultural, commercial and industrial applications.

The chemical composition of the material is tested by spectrum for the stainless steel welded wire mesh

Stainless Steel Welded Wire Mesh Material:

SS304, SS304L, SS310, SS316, SS316L, 2205, 2507, 904L, SS321, SS410, SS430 and etc.
Among them, SS304, SS316 is most common used material, most mesh size are available from stock or through custom manufacturing. It can be made in roll or in sheet.

Table 1: Stainless Steel Welded Wire Mesh Rolls Specification
Mesh Opening		Wire Diameter <BWG>	Rolls Size
In inch	In metric unit (mm)	Wire Diameter <BWG>	Rolls Size
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24	1mx30m, 3'x100', 4'x100',5'x100', 6'x100'
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16

Stainless Steel Welded Wire Mesh Rolls

1/4"×1/4" SS304 Welded Wire Mesh Rolls

1/2"×1/2" SS304 Welded Wire Mesh Rolls

1/2"×1/2" SS316 Welded Wire Mesh Rolls

2inch×2inch 4mm wire diameter stainless steel Welded Wire Mesh Rolls is is tested chemical composition by spectrum

2"×3mm SS316 Welded Wire Mesh Rolls

2inch×2inch 4mm wire diameter stainless steel Welded Wire Mesh Rolls is checking by Vernier caliper

2"×4mm SS316L Welded Wire Mesh Rolls

Table 2: Stainless Steel Welded Wire Mesh Panels Common Used Specification List
Mesh Opening		Wire Diameter (mm)	Panel Size
In inch	In metric unit (mm)	Wire Diameter (mm)	Panel Size
1/2"x1/2"	12.7mm x 12.7mm	1.0mm-2.0mm	-
1" x 1"	25.4mm x 25.4mm	1.5mm-2.5mm	3'x6' 4'x8',5'x10',6'x12' 7'x15',1mx2m,1.5mx3m,2mx4m and customized
1-1/2" x 1-1/2"	38.1mm x 38.1mm	2.0mm-5.0mm
2" x 2"	50.8mm x 50.8mm	2.0mm-6.0mm
3"x3"	76.2mm x 76.2mm	3.0mm-7.0mm
4"x4"	101.6mm x 101.6mm	3.0mm-8.0mm
5"x5"	127mm x 127mm	4.0mm-9.0mm
6"x6"	152.4mm x 152.4mm	4.0mm-10.0mm
3"x6"	76.2mm x 152.4mm	4.0mm-9.0mm
4"x6"	101.6mm x 152.4mm	4.0mm-9.0mm
Notes: other specification can also be made according to request

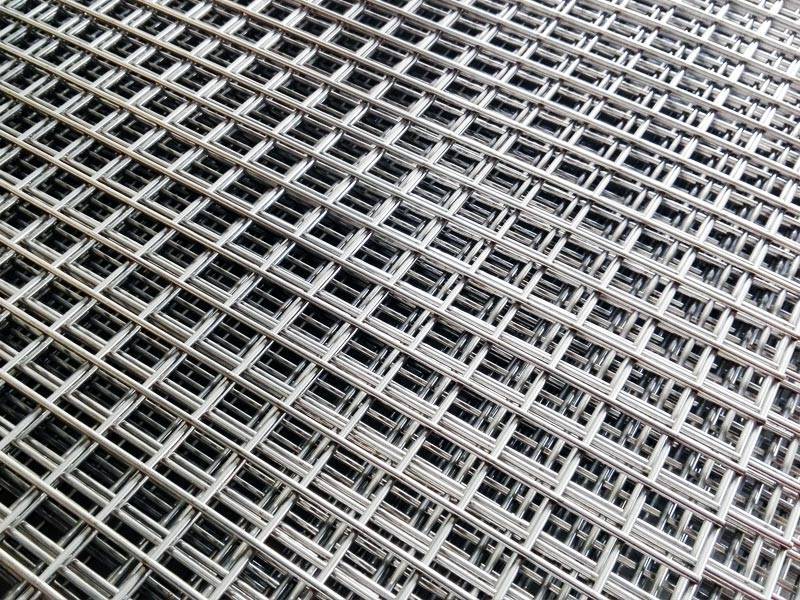

2"×2" Stainless Steel Welded Wire Mesh Panel

1"×1" Stainless Steel Welded Wire Mesh Panel

5"×5" Stainless Steel Welded Wire Mesh Panel

4"×4" Stainless Steel Welded Wire Mesh Panel

1/2inch×1/2inch stainless steel welded wire mesh panels wire diameter is 1.53mm checking by Vernier caliper

1/2"×1/2" Stainless Steel Welded Wire Mesh Panel

1/3inch×3inch Rectangular Opening Stainless Steel Welded Mesh panels

1/3"×3" Rectangular Opening Stainless Steel Welded Mesh

Products Standards

QIUSUO is ISO 9001:2015 certified company, and all of our stainless steel welded wire mesh comply with international quality standards. All of our welded wire mesh are inspected to ensure compliance.

ASTM A580/A580M-18 Standard Specification for Stainless Steel Wire
ASTM A740-98(2014) Standard Specification for Hardware Cloth (Woven or Welded Galvanized Steel Wire Fabric)

Application

Chemical & Petrochemical Industry:
- Used as filters and screening devices for chemical pipelines and storage tanks
- Used as filtration and protective screens in chemical reactors, towers, and other equipment
Food & Beverage Industry:
- Used for filtration and screening in food processing equipment
- Used as filtration media in the production processes of beverages such as beer and wine
Pharmaceutical & Medical Industry:
- Used for filtration and protection in medical devices
- Applied in the filtration and separation processes of drug production and packaging
Mining & Metallurgy Industry:
- Used for protection and filtration in metallurgical furnaces and kilns
- Used as screening mesh in mineral processing and ore dressing processes
Electronics & Electrical Industry:
- Used for filtration and protection in the production of electronic components
- Used for protection and isolation in power equipment
Environmental Protection & Water Treatment Industry:
- Used for filtration and purification of groundwater and drinking water
- Used as filtration screens in sewage treatment and exhaust gas purification equipment
Construction & Decoration Industry:
- Used in interior decoration and furniture manufacturing
- Used as partition meshes and decorative meshes in buildings

Cases Display

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of stainless steel welded wire mesh.

checking the GR1 titanium welded wire mesh meet the ASTM B863-14 standard.

Titanium 2" Welded Wire Mesh

A caliper check mesh wire diameter is 3 mm stainless steel welding mesh.

SS316L 2" Stainless Steel Welding Mesh

A caliper check mesh size is 1 inch for the SS321 welded mesh.

SS321 1" Welded Wire Mesh Rolls

A few pieces of stainless steel welded mesh, pressure welded screen

SS316 1/2" Welding Wire Mesh Panels

Quality Control Read more

QIUSUO is committed to delivering stainless steel welded wire mesh of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest standards.
