Aluminum Bar Grating: Slip-Resistant, Rustproof, and Cost-Effective Grating Choice

Aluminum bar grating is a lightweight, corrosion-resistant solution widely used in industrial, commercial, and architectural applications. Manufactured from high-quality aluminum alloys such as ASTM B221 6061 or 6063, it combines excellent durability with a high load-bearing capacity while remaining significantly lighter than steel alternatives.

Available in various types – including swaged rectangular bar, flush top, press lock, riveted, plank, and I-bar – aluminum bar grating offers design flexibility to suit different structural and aesthetic requirements. It comes in smooth or serrated surfaces to enhance slip resistance and ensure safety in wet or high-traffic areas.

• Catalogue
• Video Viewing
• RFQ Form

Basic Technical Parameters

• Material: ASTM B221 6063-T6, ASTM B221 6061-T6
• Construction type: Swage-locked, riveted-locked, press-locked
• Opening shapes: Square, rectangular, triangular
• Product surface: Smooth, grooved, serrated
• Bearing bar: Flat bar, I bar
• Load capacity: Download aluminum I bar grating load table
• Surface treatment: Mill finish, natural anodizing, colored anodizing, powder coating
• Top-customized: aluminum bar grating according to drawings

Note: We can manufacture aluminum bar grating according to your drawings.

Category

Swaged Rectangular Aluminum Bar Grating

Swaged rectangular aluminum bar grating consists of load-bearing flat aluminum bars (rectangular cross-section) and cross bars joined by the swaging process. The cross bar is typically a round or serrated aluminum tube, passing through pre-punched holes in the load-bearing flat bars and tightly pressed by high-pressure deformation to form a secure structural connection. And the surface can be smooth or serrated.

Swaged rectangular aluminum bar grating – smooth surface

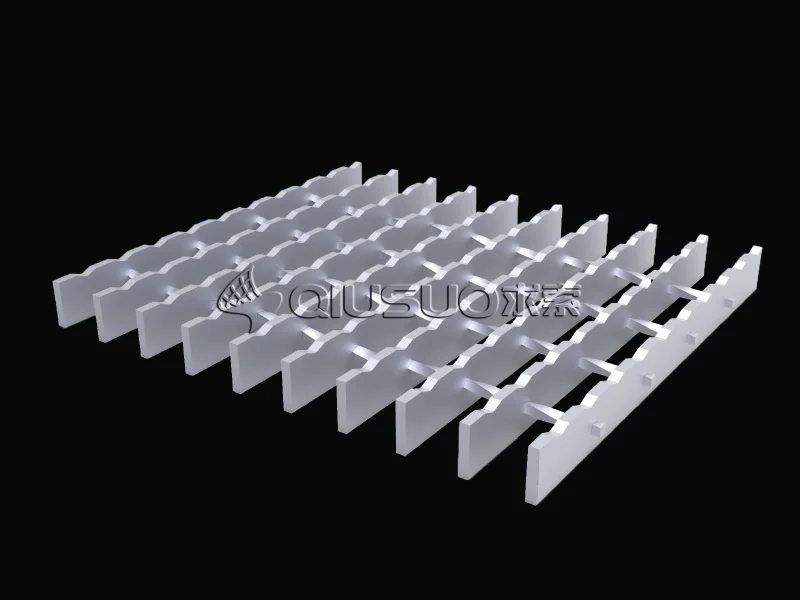

Swaged rectangular aluminum bar grating – serrated surface

Specifications

• Bearing bar size: 1" × 1/8" to 2-1/2" × 3/16" with 1/4" increments;
• Bearing bar spacing (center-to-center): 1-3/16", 15/16", 11/16" and 7/16";
• Cross bar spacing (center-to-center): 4" or 2".
• Surface type: Smooth surface, serrated surface

Swaged I bar aluminum bar grating

Swaged I bar aluminum bar grating features I-shaped extruded bearing bars, which are securely joined to the cross bars through a swaging process. This configuration delivers the same load-bearing capacity as rectangular bar grating, while offering reduced weight and lower cost. Both the top and bottom surfaces are equipped with anti-slip textures to enhance slip resistance.

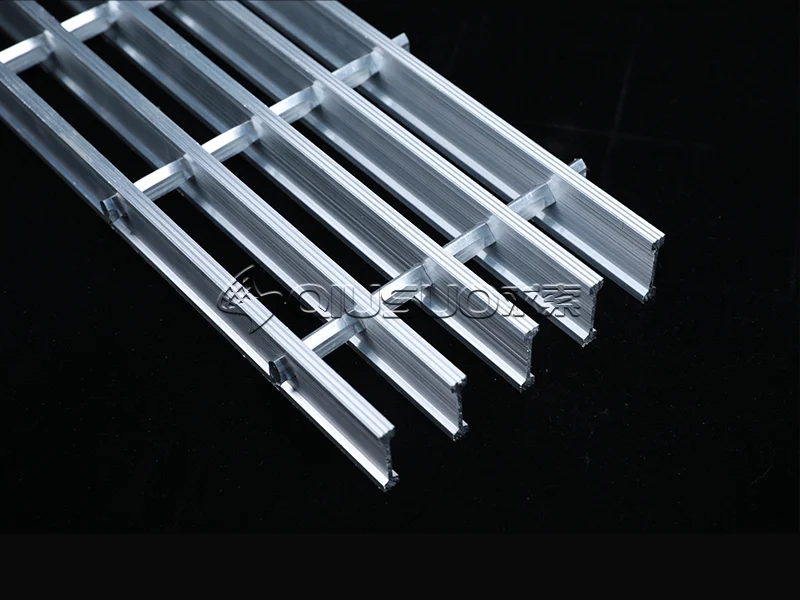

Swaged I bar aluminum bar grating

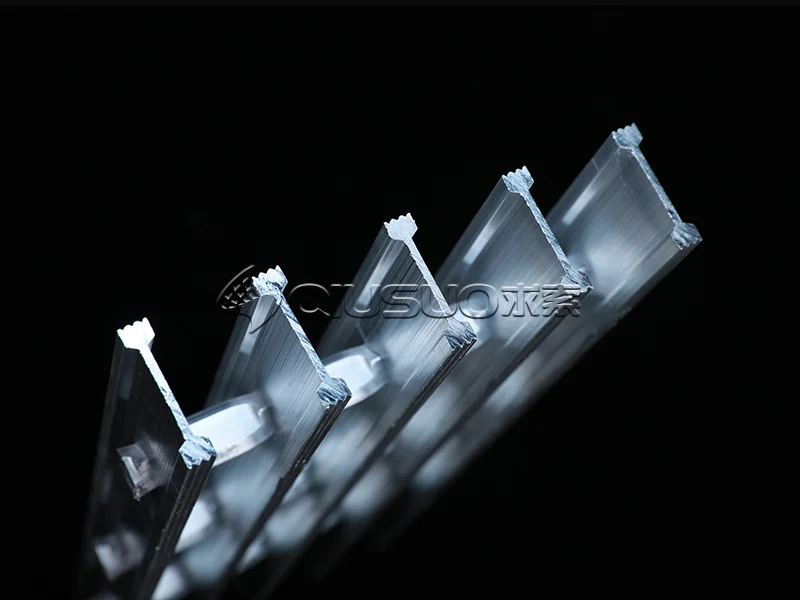

Swaged I bar aluminum bar grating – I bar

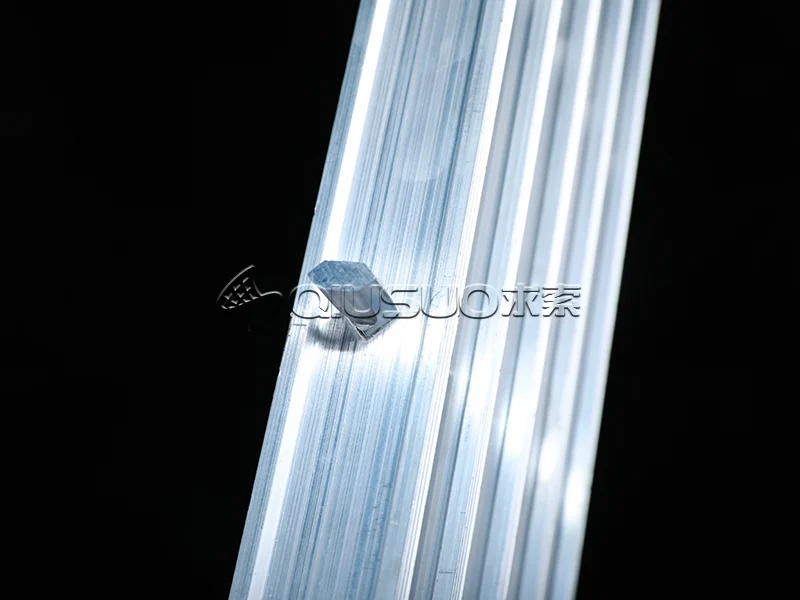

Swaged I bar aluminum bar grating – dovetail

Specifications

• Bearing bar size: 1" × 1/8" to 2-1/2" × 3/16" with 1/4" increments;
• Bearing bar spacing (center-to-center): 1-3/16", 15/16", 11/16" and 7/16";
• Cross bar spacing (center-to-center): 4"or 2".

Riveted bar aluminum bar grating

The bearing bars and cross bars are connected with rivets. Typically, the bearing bars are flat aluminum strips, and the cross bars are also flat strips. Each intersection is mechanically secured with rivets, delivering excellent structural stability and shear strength.

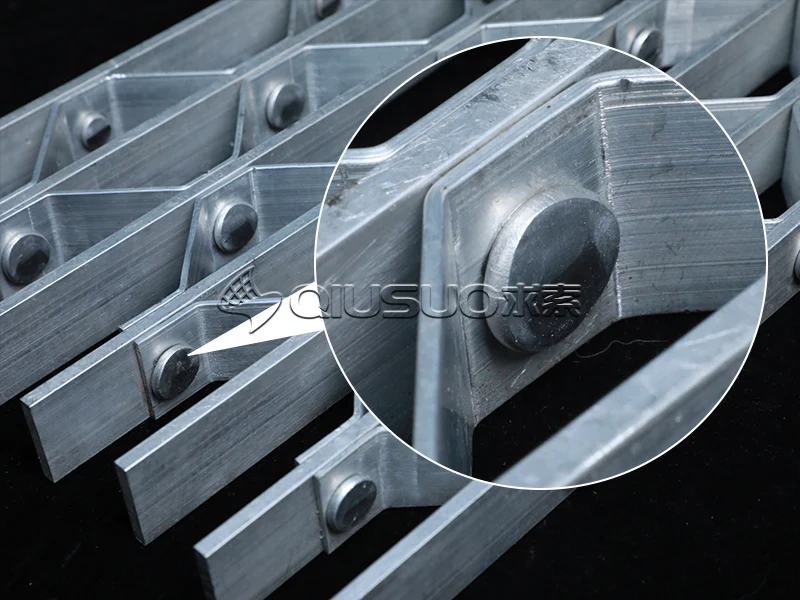

Riveted bar aluminum bar grating – rivet

Riveted bar aluminum bar grating – cross bar

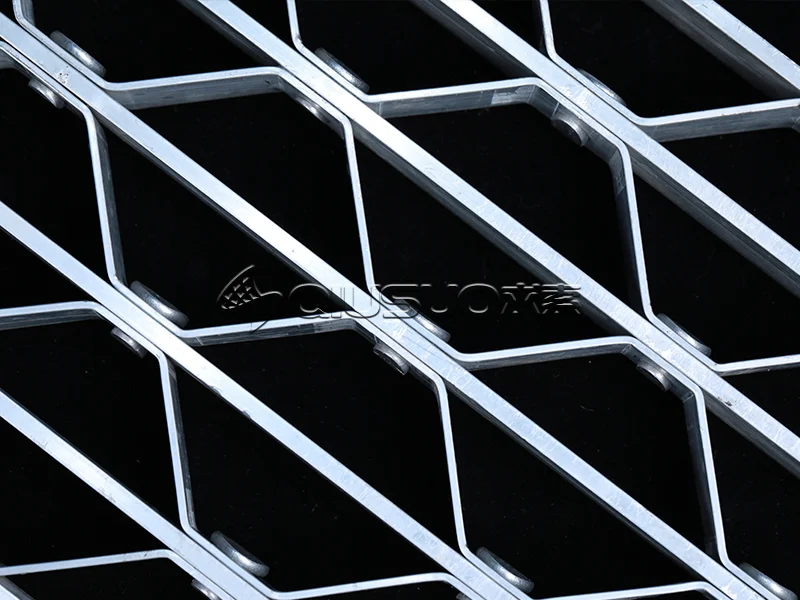

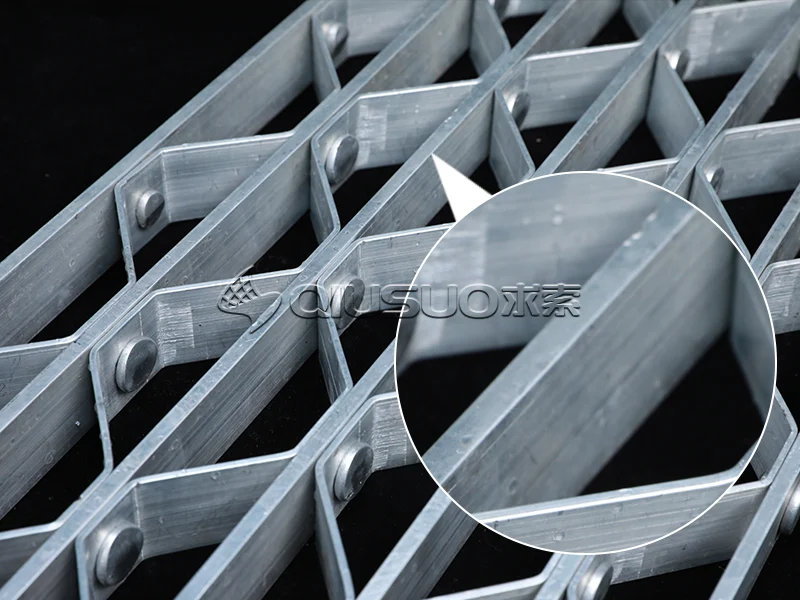

Riveted bar aluminum bar grating – cross bar with rivet

Specifications

• Cross bar spacing (center-to-center): 1-1/8" or 3/4"
• Rivet spacing (rivet to rivet): 7", 3-1/2"

Pressure Locked Aluminum Bar Grating

Pressure locked aluminum bar grating is a flush top grating with a smooth surface, utilizing an interlocking design without welding. It relies entirely on pressure locking for secure fastening, resulting in a compact, safe, and visually appealing structure. It is available in full interlocking and half interlocking configurations, as well as various opening shapes such as square or rectangular, to accommodate diverse installation requirements.

Pressure locked aluminum bar grating with a smooth surfaced and rectangular openings

Pressure locked aluminum bar grating with with a smooth surfaced and square openings

Pressure locked aluminum bar grating with a serrated surfaced and rectangular openings

Applications

Aluminum bar grating is widely used across various industries due to its lightweight nature, excellent corrosion resistance, and high load-bearing capacity. Common applications include:

• Industrial platforms and walkways
• Architectural blinds and sunshades
• Drainage covers and trench grates
• Ceilings and ventilation grilles

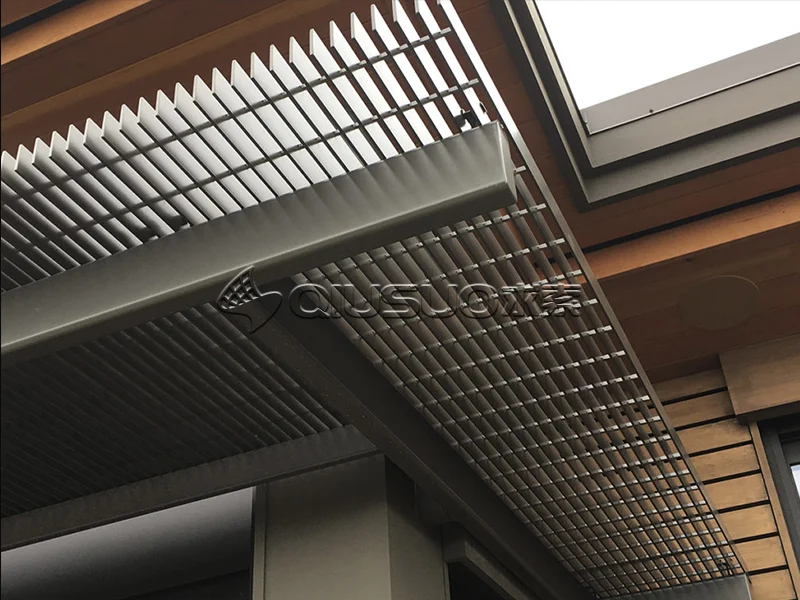

Architectural louver

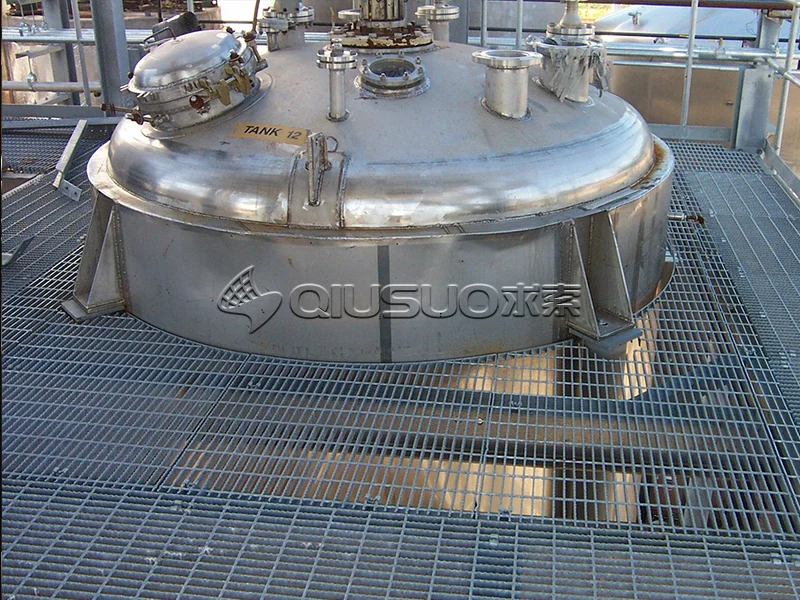

Work Platform

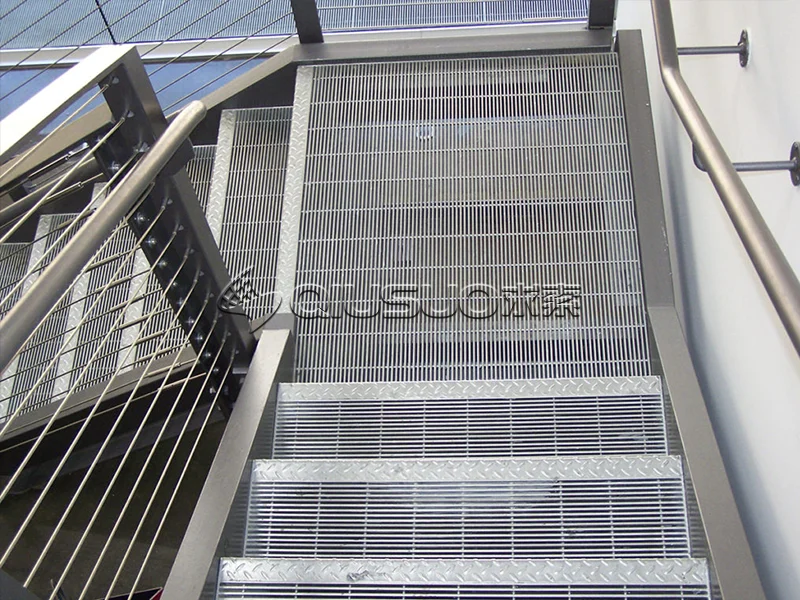

Stair Tread

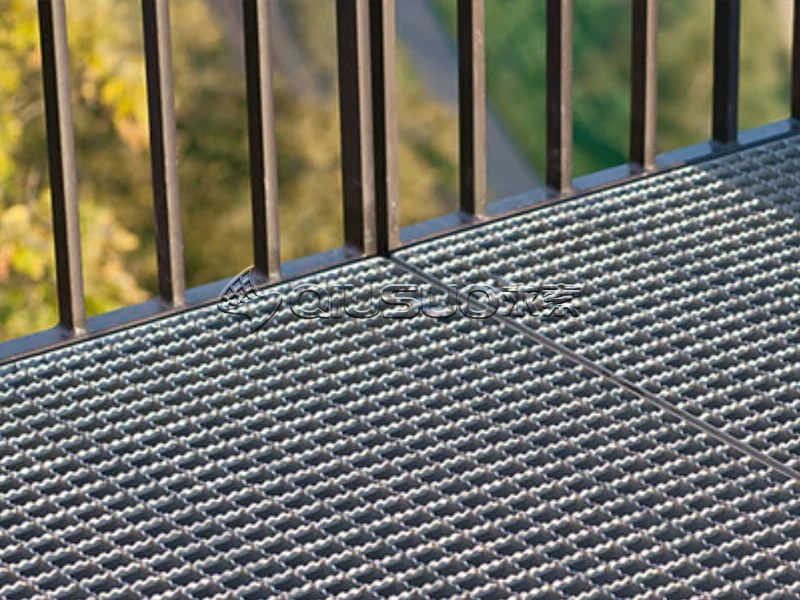

Walkway

Cases Display Read more

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of aluminum bar grating.

Anodized 6061 Aluminum Grating

Quality Control Read more

QIUSUO is committed to delivering aluminum expanded mesh of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest standards.

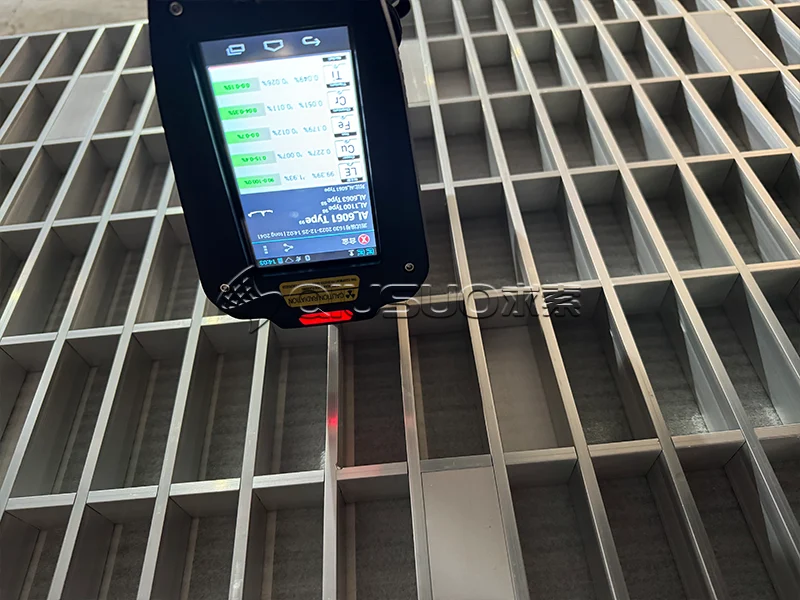

Inspect the material of aluminum bar grating

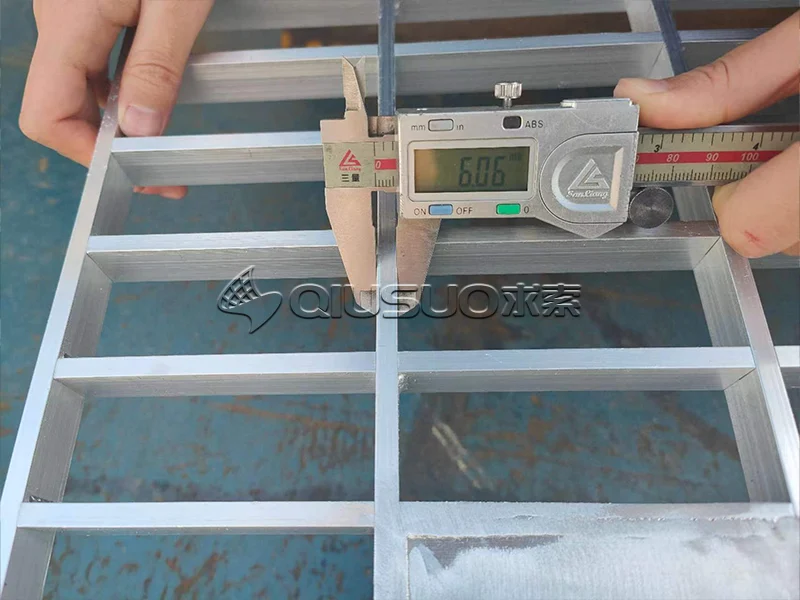

Measure the bearing bar width of aluminum bar grating
