Custom Intake Screen for Water Treatment Plant Screening

A municipal water treatment plant upgraded its intake screen to reduce pump risk and maintain steady flow during seasonal debris peaks. We worked closely with the client to confirm operating conditions and connection details, shared drawings for review, and customized a wedge wire intake screen with precise continuous slots, high open area, and reinforced structure, helping protect downstream pumps while keeping pressure drop low.

Basics Products Specification

• Product: T type intake screen
• Material: Duplex 2205
• Slot Size: 20 mm
• Screen O.D.: 16"
• Overall Length: 3800 mm
• Intake Flange: 16'' ANSI B16.5 #150
• Backwash Flange: 2'' ANSI B16.5 #150
• Remark: Details according to final approval shop drawings.

Finished Products & QC Photos

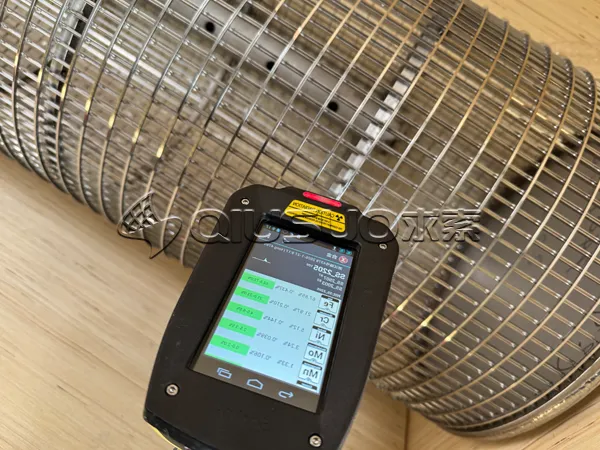

PMI test

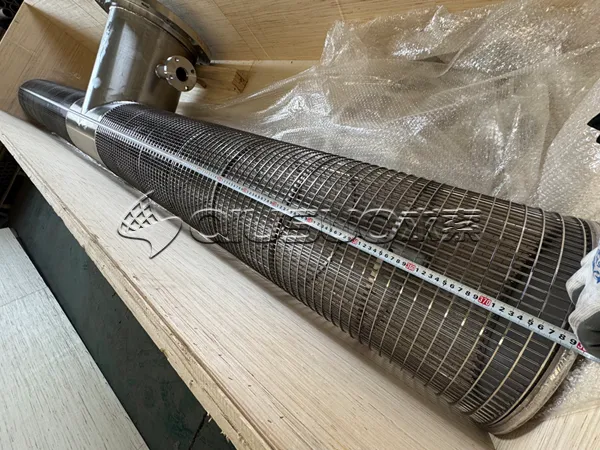

Length measurement

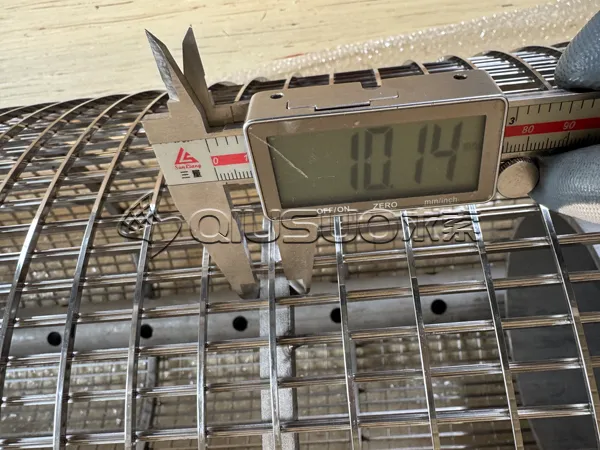

Detail display

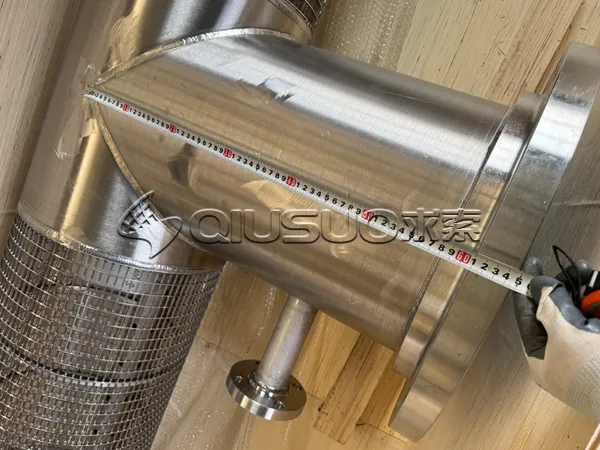

Path length measurement

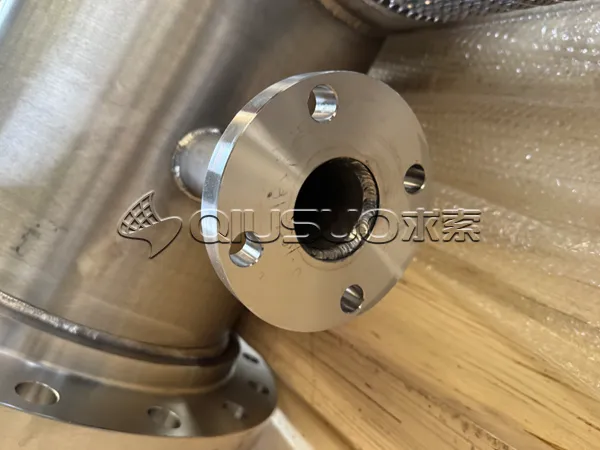

Backwash flange display

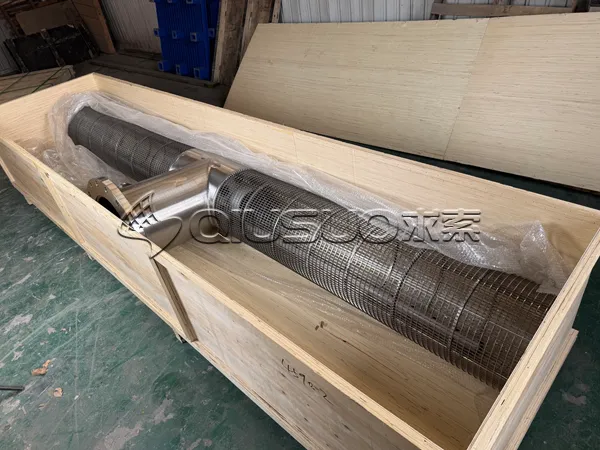

Product packing
