Custom Polywedge Screen Panel with Polyurethane Edging

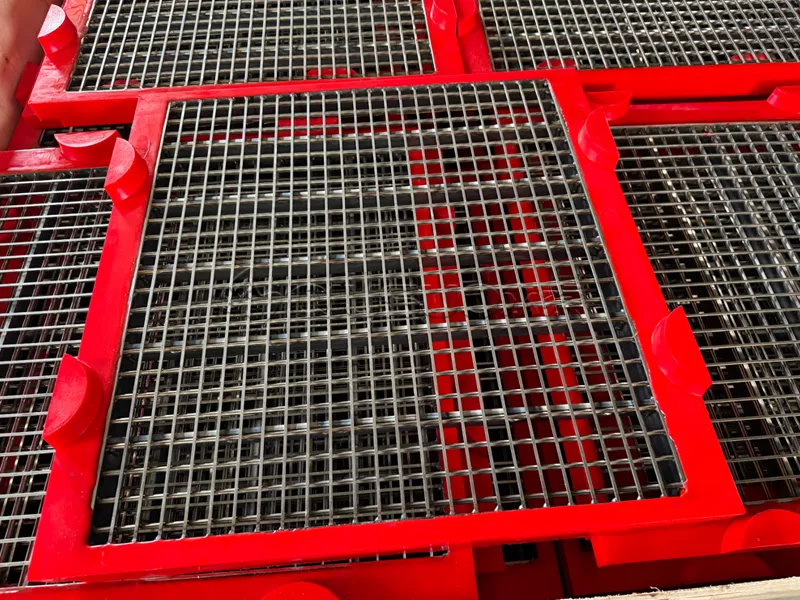

A Turkish equipment manufacturer required a custom polywedge screen panel for its screening equipment. Based on the customer's drawings, we confirmed the panel dimensions, wedge wire structure, support arrangement and polyurethane edging details before production.

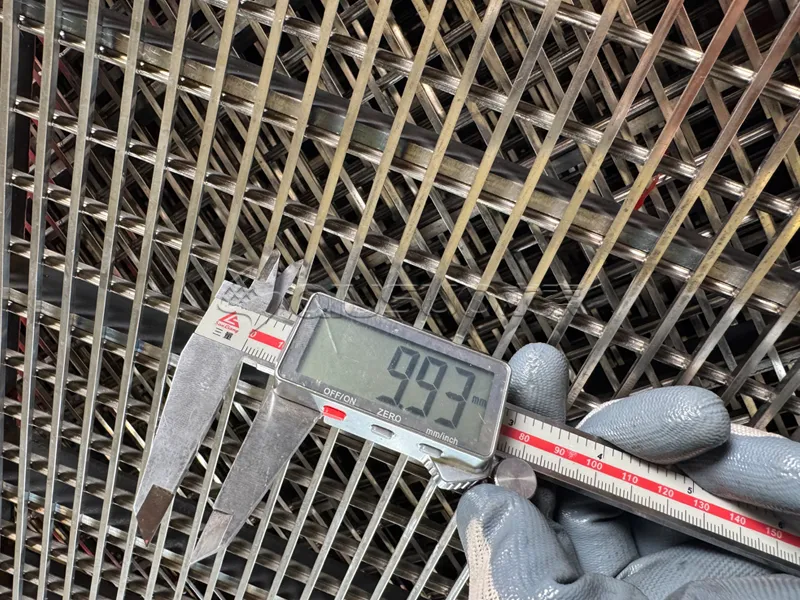

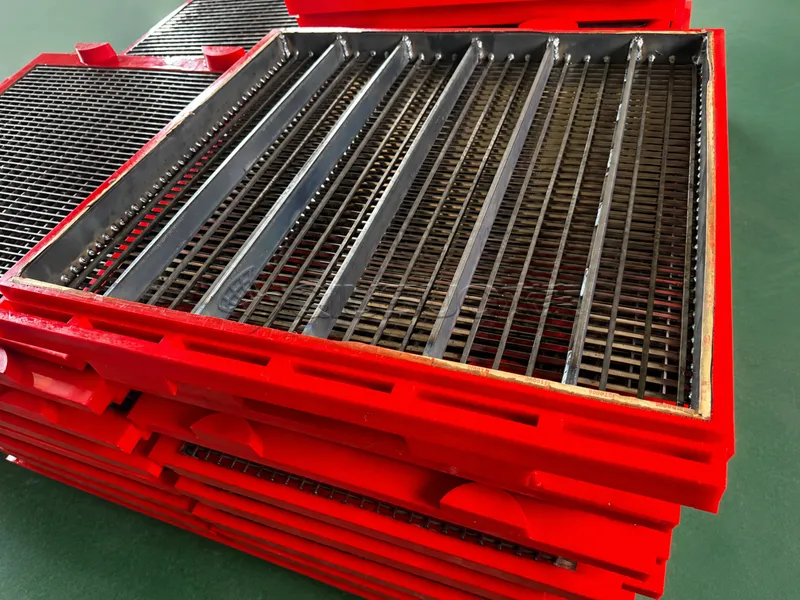

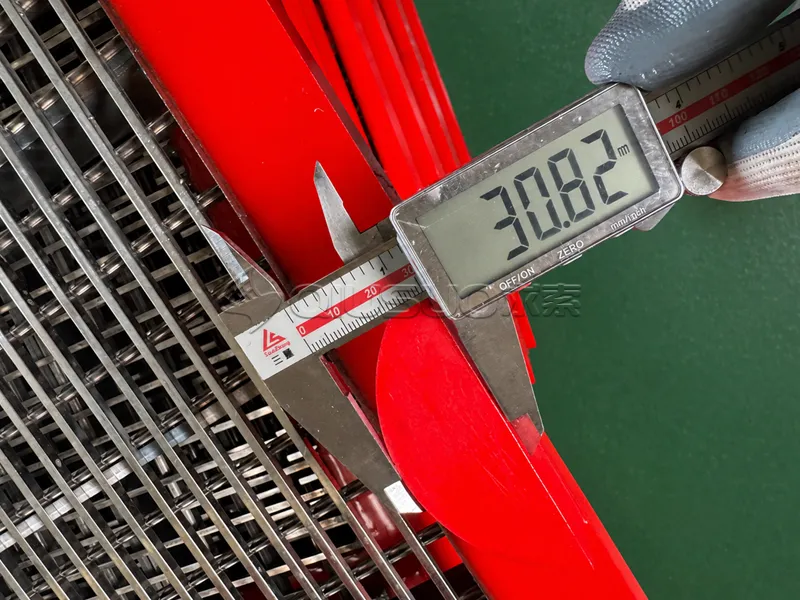

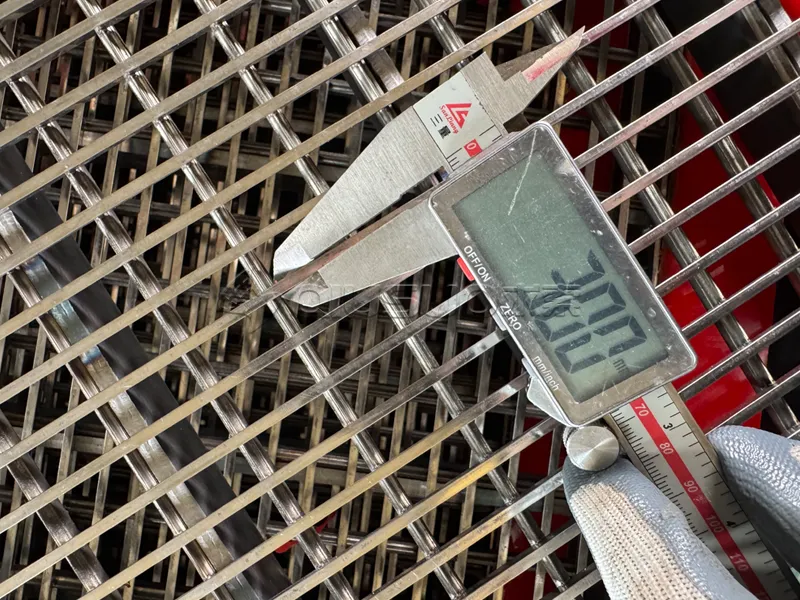

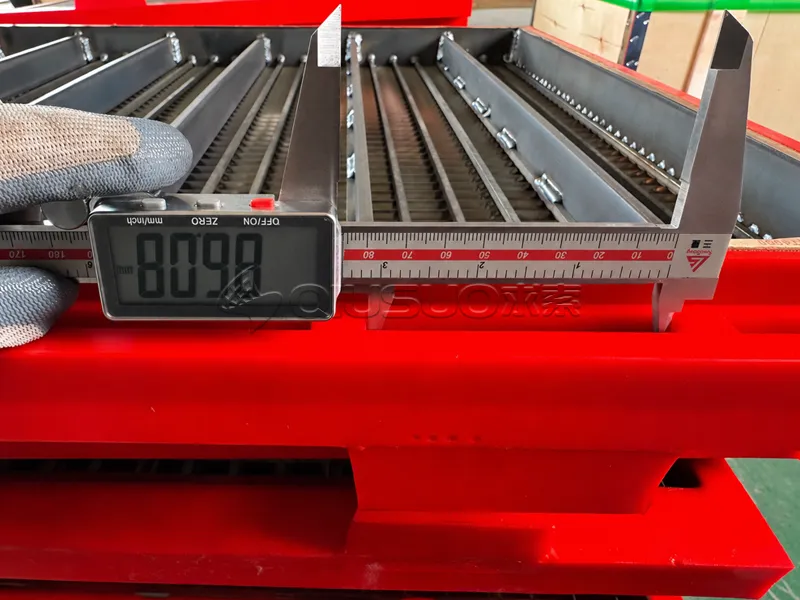

The panel combines a stainless steel wedge wire screen surface with polyurethane edging. Key structural details and dimensions were checked against the confirmed drawings during production to support consistent panel fit and assembly.

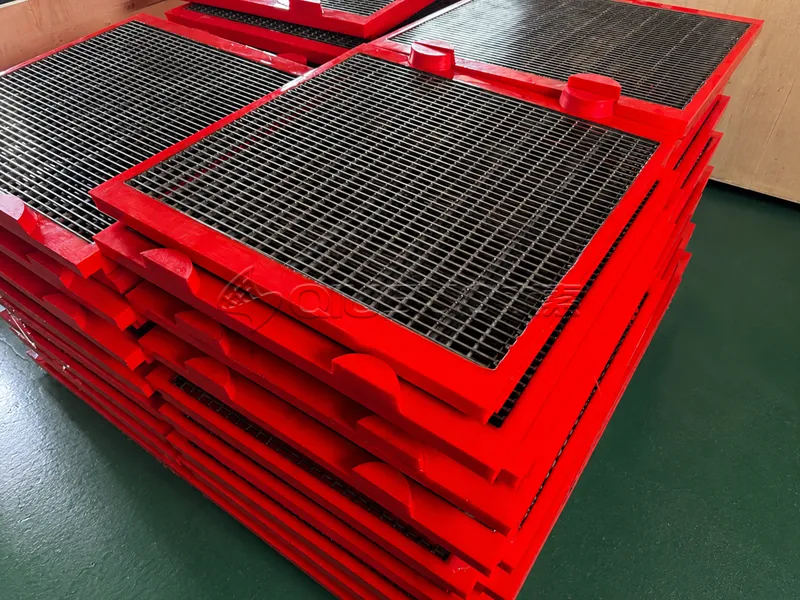

We supply custom polywedge screen panels and wedge wire screen components based on drawings, dimensions, slot openings and structural requirements. We support drawing confirmation, production follow-up, dimensional inspection and packing for custom screen panel orders.

Basics Products Specification

Products 1: Wedge wire screen panel
- Slot: 10 mm
- Wedge wire: 3.3 × 5 mm
- Support rod: 3.7 × 5.3 mm

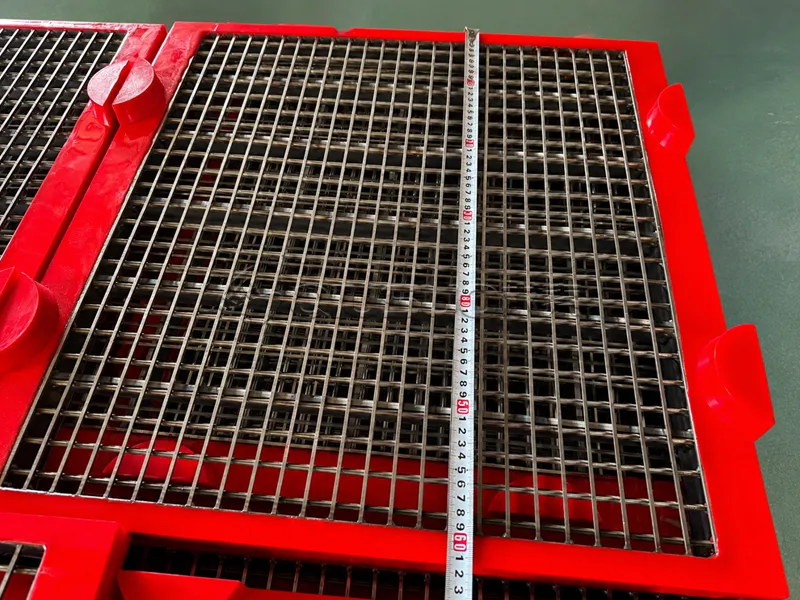

- Size: 608 × 610 mm
- Frame with 2 tabs
- Quantity: 10 pcs
Products 2: Wedge wire screen panel
- Slot: 18.1 mm
- Wedge wire: 3.3 × 5 mm
- Support rod: 3.7 × 5.3 mm
- Size: 608 × 610 mm
- Frame with 4 tabs
- Quantity: 40 pcs
Products 3: Wedge wire screen panel
- Slot: 18.1 mm
- Wedge wire: 3.3 × 5 mm
- Support rod: 3.7 × 5.3 mm
- Size: 608 × 610 mm
- Frame with 2 tabs
- Quantity: 20 pcs
Products 4: Wedge wire screen panel

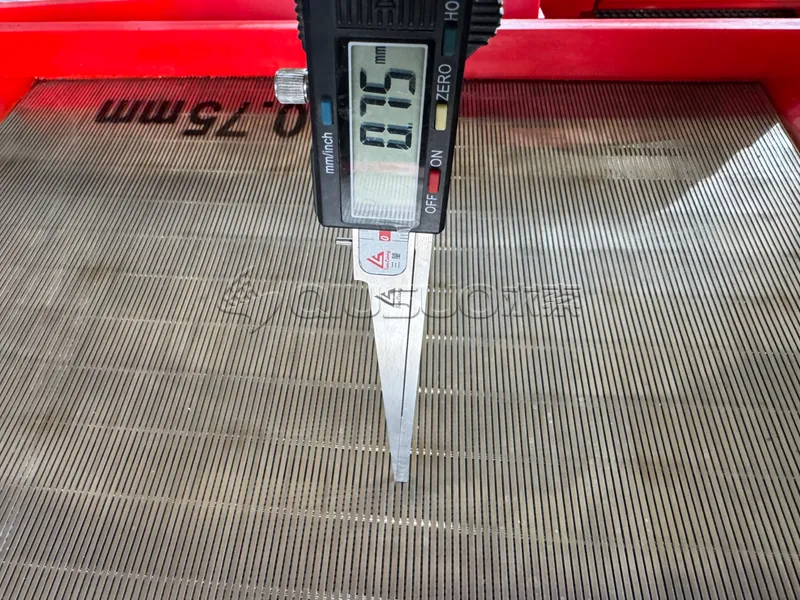

- Slot: 0.75 mm
- Wedge wire: 2.2 × 3.5 mm

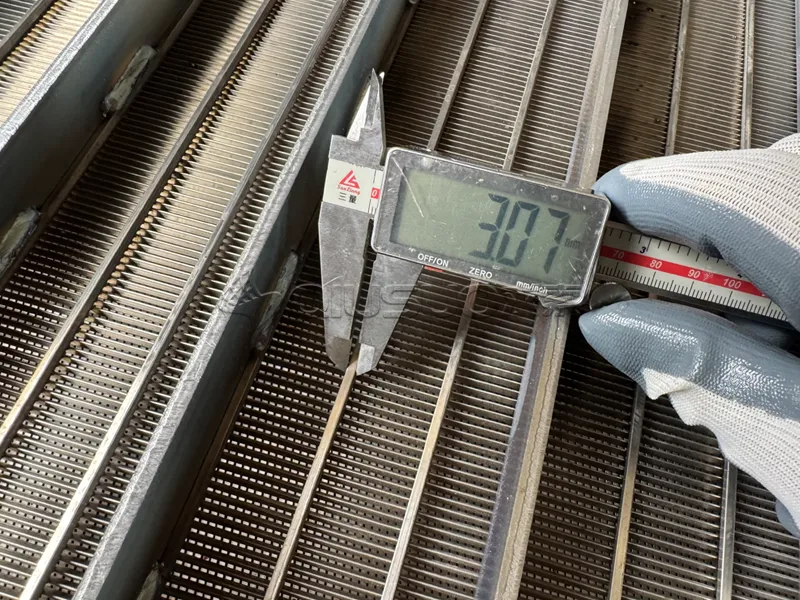

- Support rod: 3 × 5mm

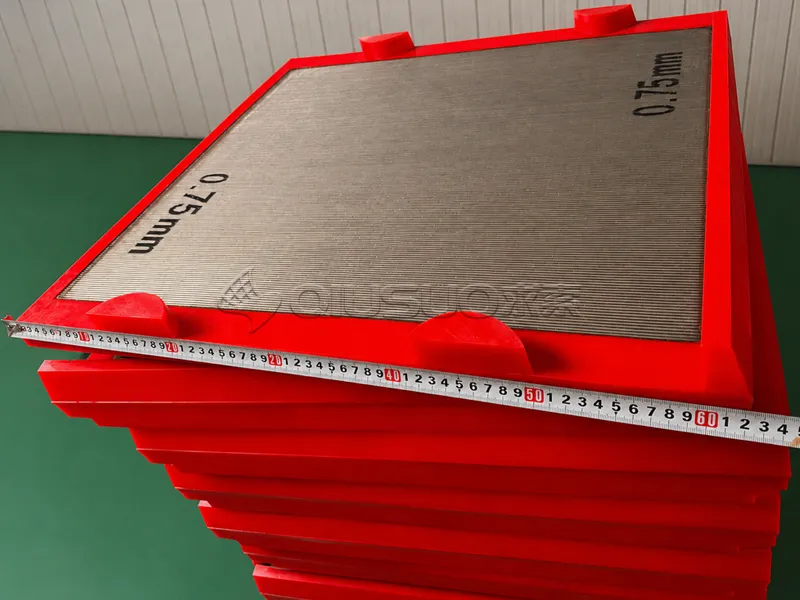

- Size: 608 × 610 mm
- Frame with 4 tabs
- Quantity: 40 pcs

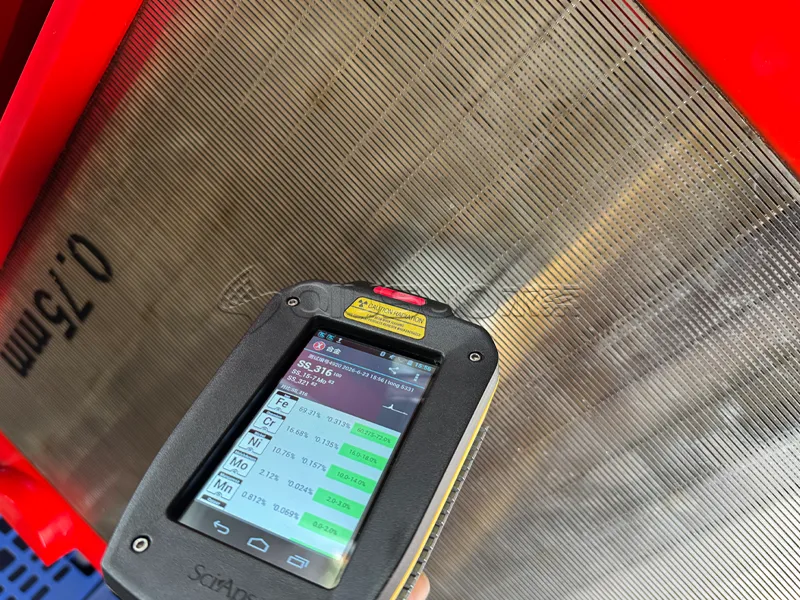

Material: Screen SS316, pu frame
Order code: 2208
