Perforated Metal Tube Be Made of Carbon Steel and Stainless Steel by Straight Seam Welding Method

Our Welded Perforated Metal Tube is made of carbon steel and stainless steel by straight seam welding method, it is suitable for filter cores which can withstand quick flow of liquid and support the outside filter mesh layer. Micron slotted hole perforated steel tubing is used as filter cylinder or casing tube in oil drilling, mine developing and other industries. Except of straight butt seam welding method , we also offer spiral lock seam welding. spot welding tubes, longitudinal/straight seam tubes, straight seam tack welded tubes, abutted seam tubes, straight lock seam tubes, and more.

2 tilted placed stainless steel perforated metal tubes

General Product Descriptions:

Material: mild carbon steel, stainless steel
Outside diameter: from 1"to 5";
Length: to any length, up to 4 meters
Holes pattern: round, square, oblong, hexagon
Hole diameter: 0.4mm -20mm
Open area: up to 65%;
Wall Thickness: 1mm to 5mm

0.8mm Round Hole perforated cylinder

Carbon steel perforated tube

Stainless Steel perforated tube filter

1 inch Stainless Steel Perforated Tube

Perforated tube filter

Perforated metal tube

Applications:

Architecture and decoration: It is used for decorative materials such as building facades, interior partitions, and ceilings, and can also be used for functional components such as ventilation systems and railings.
Automotive manufacturing: It is applied in parts such as automotive exhaust systems and engine exhaust pipes, used to reduce noise, improve airflow, and protect components.
Food processing: It is used in food processing equipment for screening and filtering, such as flour sieving and candy production screening.
Chemical and petroleum industries: It is used in chemical equipment and oil pipelines for filtering, separation, and protection.
Medical: It is used in medical devices for filters, isolators, etc., to ensure product quality and safety.
Metallurgy and mining: It is used in ore screening, ore processing, and smelting processes for screening and filtering.

Cases Display Read more

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of perforated metal tube.

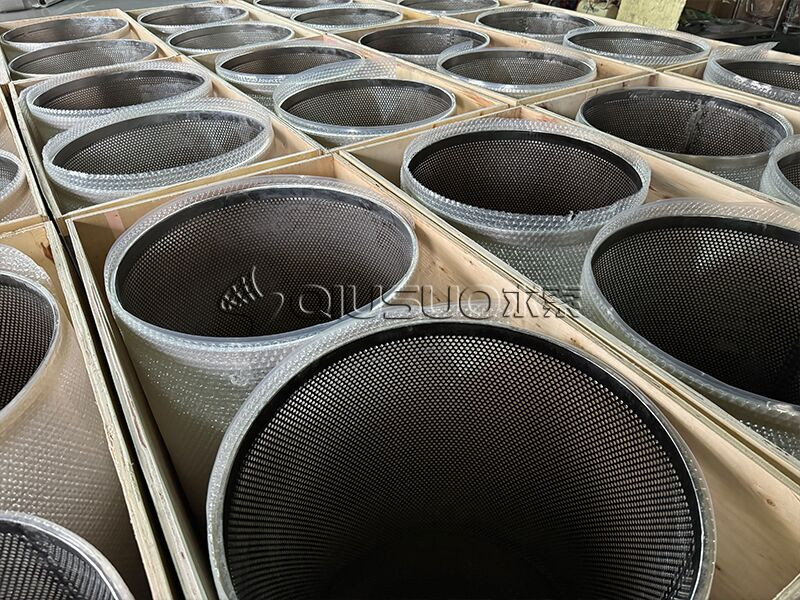

Neatly pack perforated metal mesh cylinders with plastic net sleeve in wooden boxes

Electrolytic Polishing Stainless Steel Perforated Tube

Mill Surface Finish Stainless Steel Perforated Tube

Carbon Steel Perforated Metal Tube

Perforated tube drawing and finished product display

316L Stainless Steel Perforated Tube

Quality Control

QIUSUO is committed to delivering perforated metal tube of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest standards.

The length of the welded perforated metal tube was measured to be 70 mm using a caliper.

Length detection

Measure the material of the welded perforated metal tube.

PMI test

A worker is measuring the diameter of the perforated welded metal tube.

Hole diameter measurement

Diameter inspection
