Custom Laser-Cut Perforated Plates: Precision Beyond Standards, Perfection Delivered

Key Advantages:

  • Provide CAD drawings to meet customer requirements and production with a large size plate divided into 4 parts to save space and freight.
  • Use laser cutting technology to meet the extreme challenge of 1 mm distance, achieving almost no errors. The overall dimensions error is ±0.2 mm.
  • Clean and polish the surface to make it smooth and clean, without burrs. The sheet and pitch error are ±0.05 mm, in line with the quality standard ISO 2768.
  • Solve product pain points – distance gap, uneven panels and plate deformations.
  • Quote from the customer:
    “Previously, suppliers always said ‘it can’t be done’, but you provided a great verification solution. ”

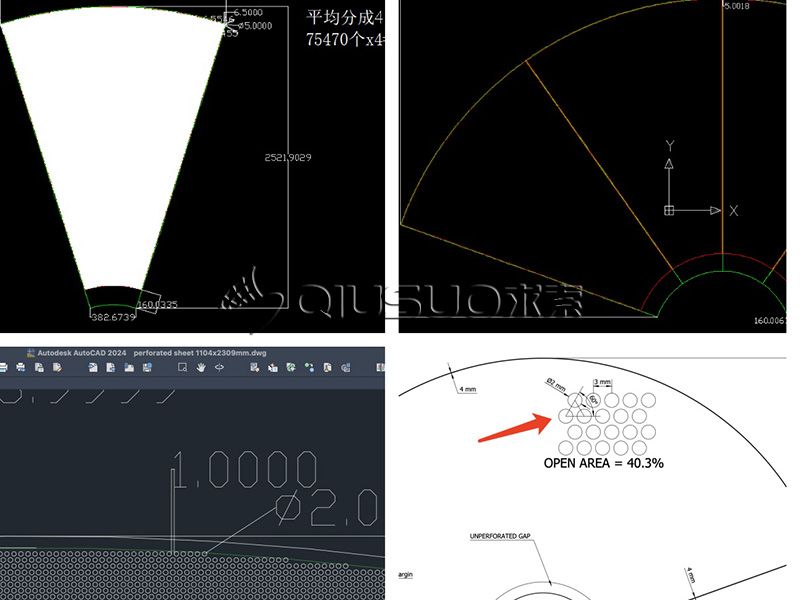

Provide CAD drawings for customized solutions

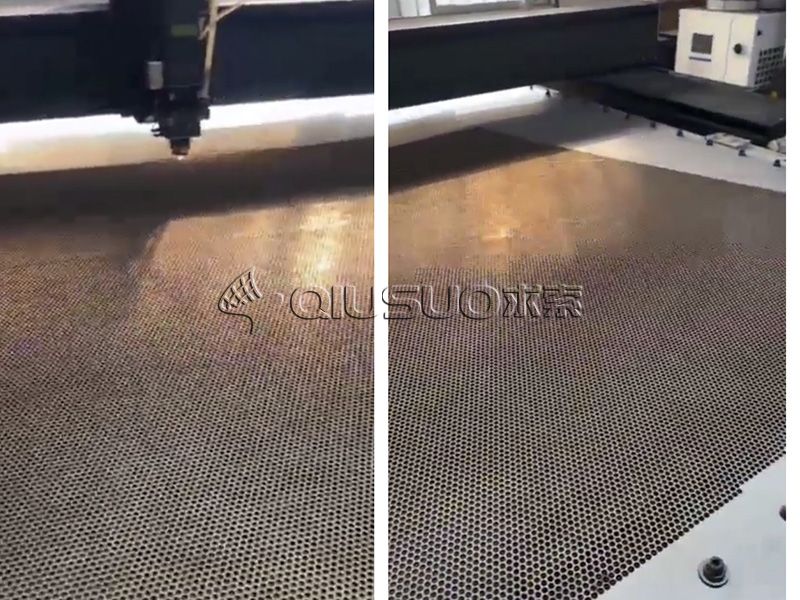

Laser cutting perforated plate

Basic Products Specification

  • Company: Engineering Project Company
  • Country: India
  • Products: Perforated plate
  • Material: SS316
  • Specification 1
    • Holes diameter: 2 mm
    • Holes pitch: 3 mm
    • Thickness: 1.6 mm
    • Size: 1104 × 1226 × 2309 mm
    • Quantity: 4 pcs
  • Specification 2
    • Holes diameter: 5 mm
    • Holes pitch: 6 mm
    • Thickness: 3 mm
    • Size: 2491.48 × 2911 × 5884 mm
    • Quantity: 4 pcs

Finished Products Photo & Packing

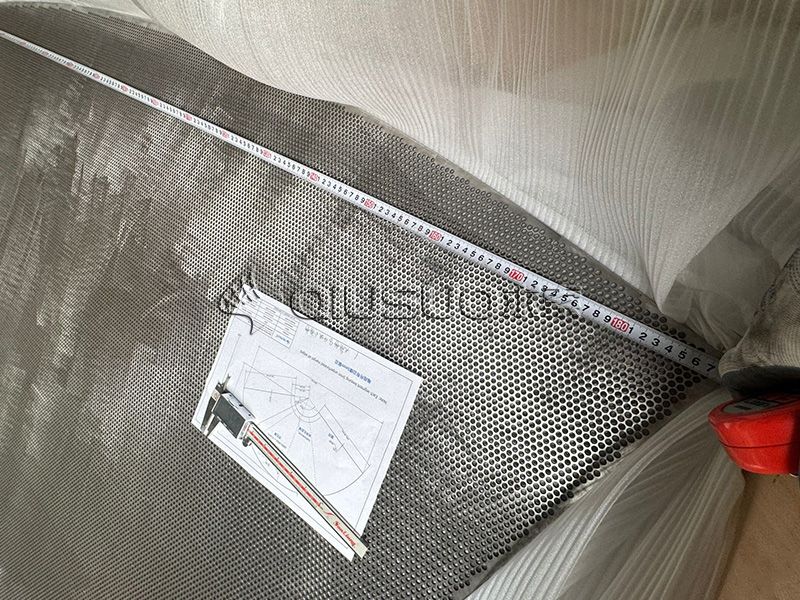

Perforated plate width

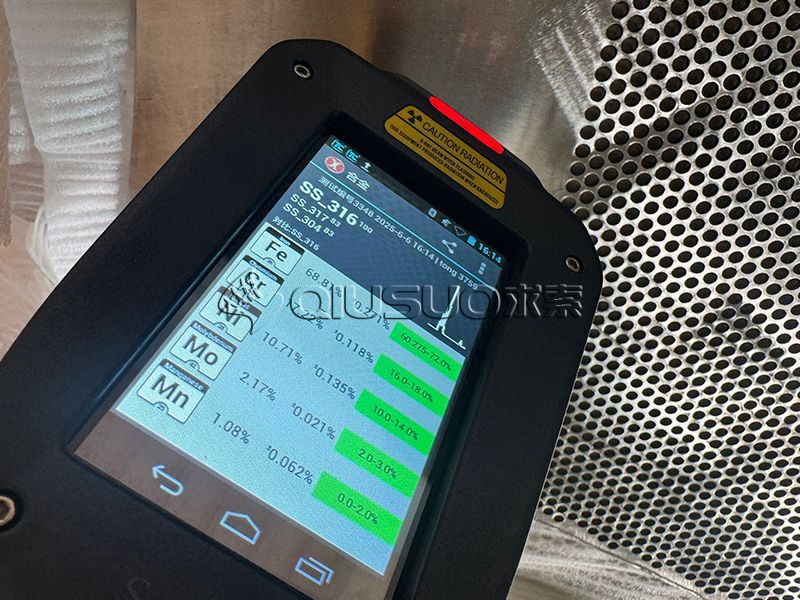

SS316 perforated plate

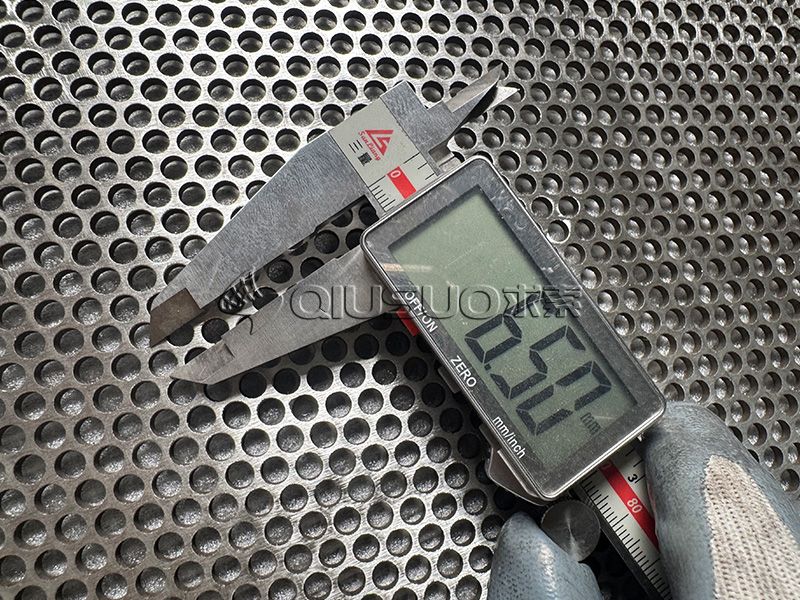

Perforated plate diameter

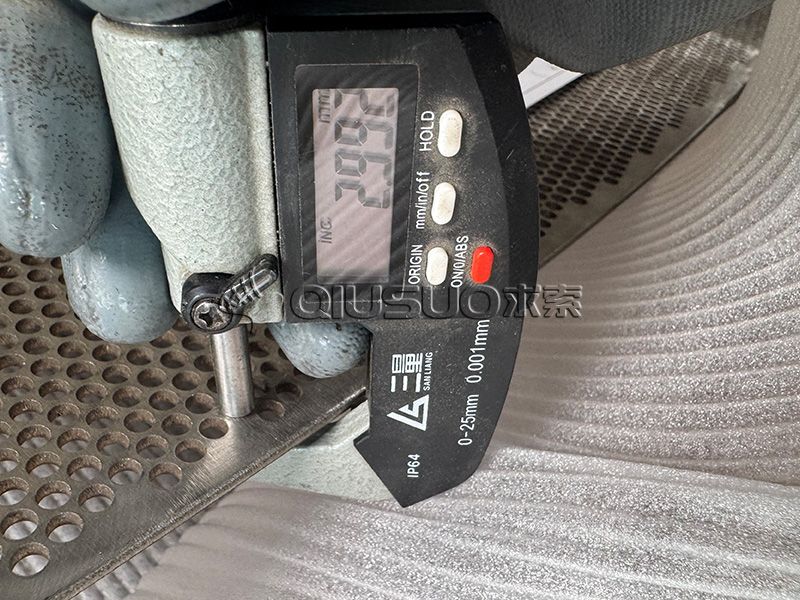

3 mm thickness

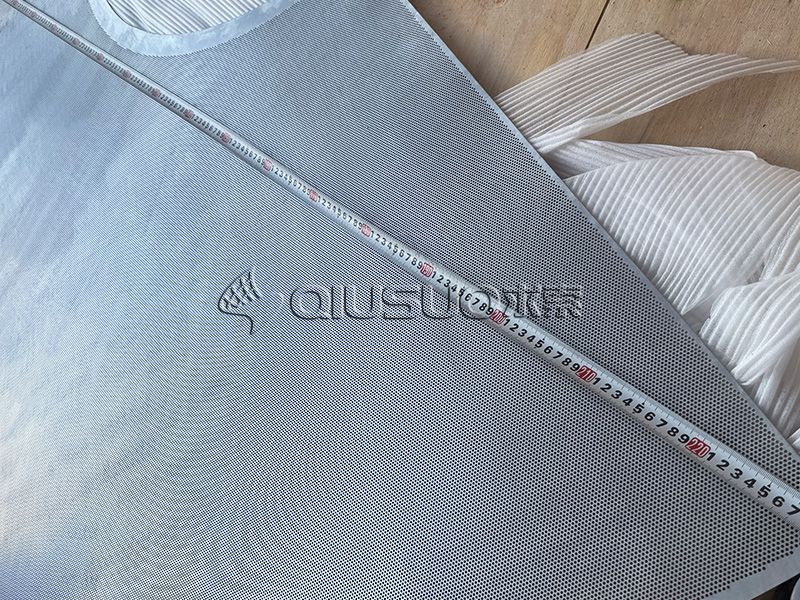

Perforated plate length

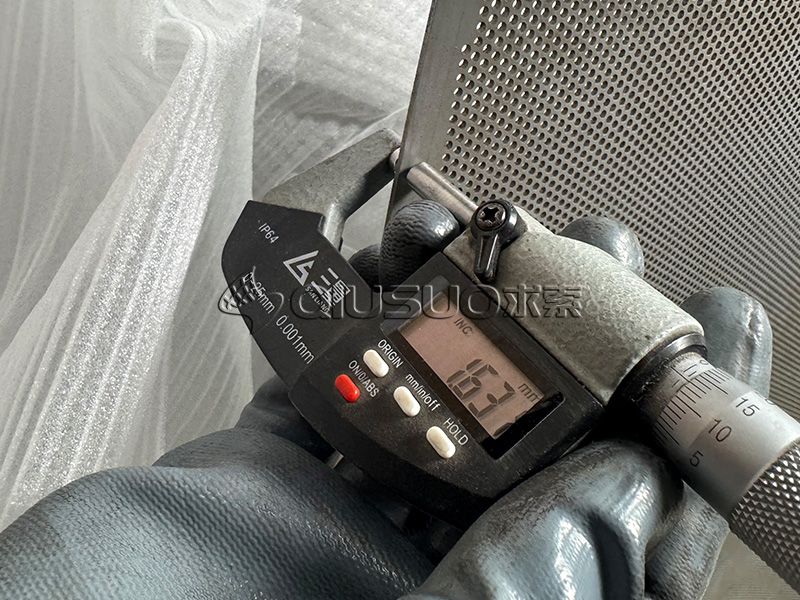

1.6 mm thickness

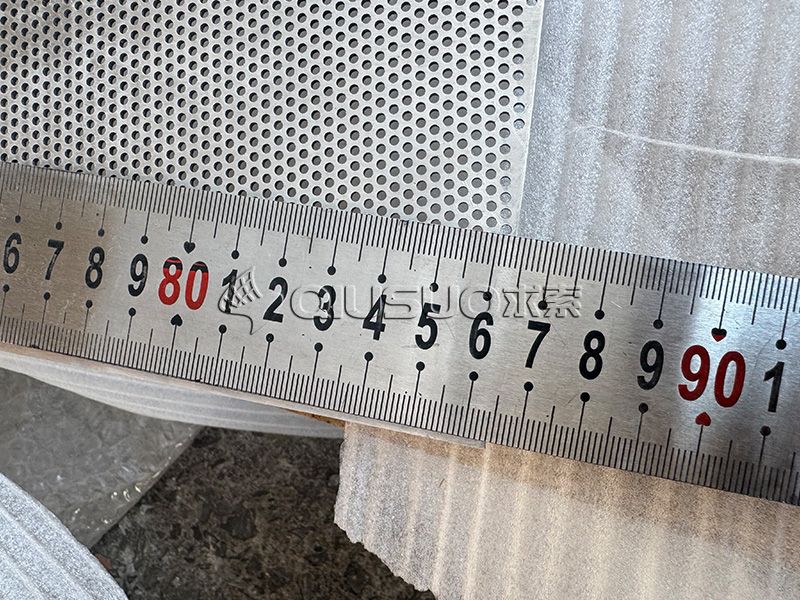

Perforated plate pitch

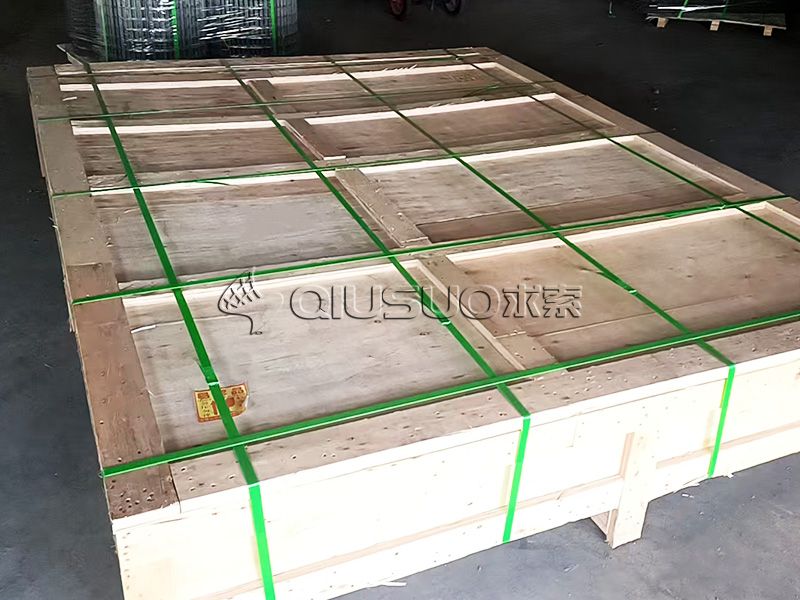

Perforated plate package
