Duplex 2507 Small Intake Screen for Sea Water Filtering - Backwash and Seawater Corrosion Resistance

This Hong Kong customer ordered a Duplex 2507 small intake screen for sea water filtering on an island sanatorium. According to his draft drawings, our engineer give design, and we make shop drawings for they approval. At first the buyer askes Duplex 2205, when small quantity, the price between Duplex 2205 and Duplex 2507 no big difference, our Sales technical consultant Sophie offered both price for customer reference, and at last, ordered Duplex 2507 intake screen for their sea water filtering equipment.

Buyer’s idea and QIUSUO Shop drawings.

Duplex 2507 small intake screen drawings

Basic Information and Specification

• Products: wedge wire intake screen
• Material grade: Duplex 2507
• Screen Diameter: 150mm
• Screen Slots: 0.5mm
• Style: Wedge Wire Screen Drum with 1/2" BSP Backwash inlet pipe
• Flow capacity: 10m³/h(up to 12m³/h)
• Flow direction: FOTI
• Quantity: 1 pcs

Finished Products Photo

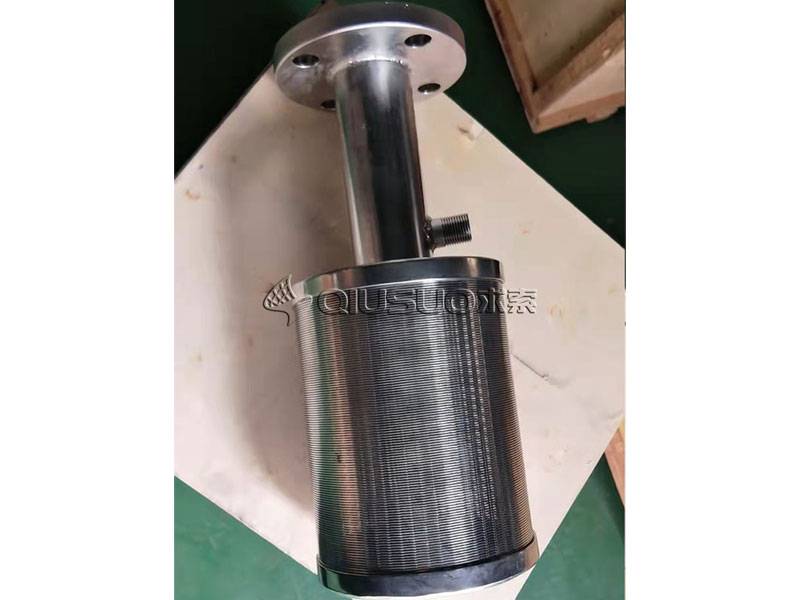

DN50 Sch40 inlet pipe Duplex 2507 small intake screen

0.5mm screen slots Duplex 2507 small intake screen

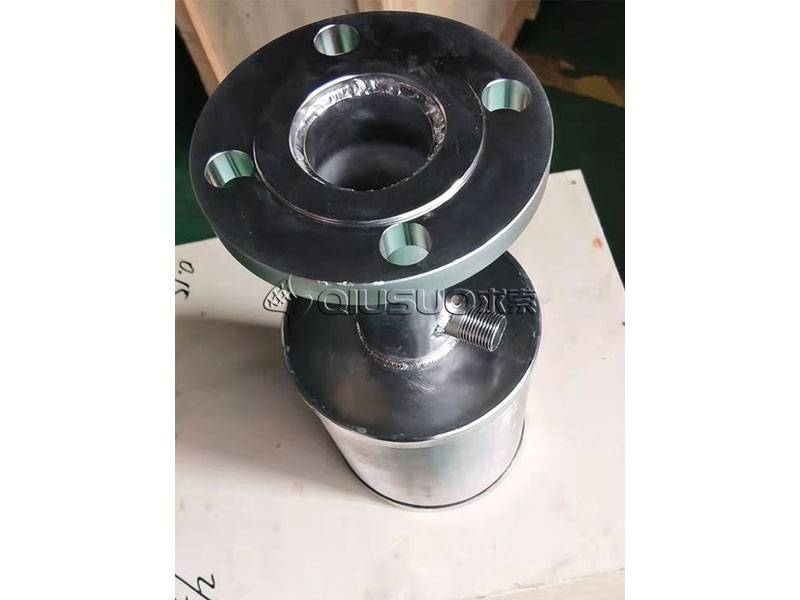

PN0.6 MPa DN50 Flange Duplex 2507 small intake screen

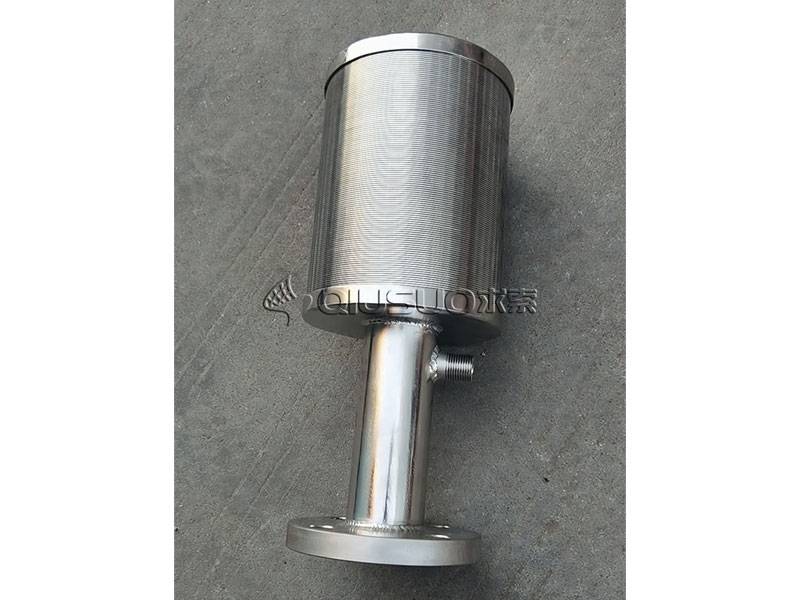

1/2＂ BSP Backwash inlet pipe Duplex 2507 small intake screen
