Wedge Wire Pressure Arc Screen for Starch

Pressure arc screen, also known as starch pressure DSM screen, pressure arc sieve screen, is an important component of the starch production process.

In the starch production process, the pressure arc screen is typically used for starch slurry screening, where it separates the starch granules from impurities such as fiber, protein, and other contaminants under high pressure.

The screen consists of a curved stainless steel surface with a series of wedge-shaped wires that are welded together to form narrow slots or openings. All wedge wires are selected and uniformly welded, which guarantee the accurate screen slots, smooth surface and high filtering efficiency.

The pressure arc screen is always in stock for quick delivery time.

Structure Characteristics

Pressure arc screen is one of popular types of curved screen. It is commonly used in 120° for high filtering and separating efficiency.

The screen consists of surface wedge wires, support rods and frame.

Surface wedge wire. Surface wedge wire is commonly in triangle shape and is resistance welded onto the support rib. The surface wire is designed to allow the starch slurry to flow through the screen surface while retaining any solid particles and impurities that are larger than the slot size of the screen. The surface wire is also designed to be easily cleaned and maintained, ensuring that the screen operates at maximum efficiency and produces a high-quality and contaminant-free starch product.

Support rod. Support rod is positioned behind the screen surface and is used to reinforce the screen and prevent it from deforming or bending under the pressure of the starch slurry. In addition to providing structural support, the support rod also helps to distribute the pressure of the starch slurry evenly across the screen surface, ensuring that the screen operates at maximum efficiency and reducing the risk of blockages or clogging.

Frame. The frame supports and secures the screen during operation. It is typically made of high-quality stainless steel and is designed to withstand the high pressure and flow rates of the starch slurry. It can ensure the proper alignment and positioning of the screen during operation. This helps to optimize the screening efficiency and ensure the reliable operation of the screen, leading to a high-quality and contaminant-free starch product.

Working Principle

The screen is positioned in a cylindrical housing and is subjected to high pressure, typically between 2 and 4 bar, depending on the specific application.

The liquid to be screened, such as starch slurry, is fed into the housing from the nozzle under a pressure of 0.2–0.4 MPa at the center of the screen. As the liquid flows through the narrow slots, the solid particles and impurities are trapped on the surface of the screen, while the clean liquid (starch and water) passes through and is collected at the pulp outlet.

The trapped particles and impurities are periodically removed from the surface of the screen by a backwash or flushing system. The backwash system typically uses water or air to flush the particles from the screen, which are then collected for further processing or disposal.

The pressure arc screen is designed to operate under high pressure, which helps to remove fine particles and impurities from the liquid. The curved shape of the screen surface also ensures that the liquid flows uniformly across the screen, further enhancing its screening efficiency.

Basic Parameter

  • Screen Arc Angle: 120°
  • Material grade: ASTM 316L
  • Screen Slots: 50 μm, 75 μm, 100 μm, 120 μm, 150 μm, 200 μm
  • Surface wedge wires: 10s, or customized.
  • Support rods: Q25, or customized.
  • Screen L frames: 20×20×10 mm, or customized.
  • Screen Capacity: 34 to 46 Cubic meter per hour
  • Feeding pressure: 0.2–0.4 MPa
  • Screen width: 585 mm, 710 mm, 825 mm or customized.
  • Screen Arc Length: 1595 mm
  • Screen Arc Radius: 762 mm
  • Screen Direction: Two-way use and one-way use for choice. When no demands, we make two-way use for long service life.

Overview of the pressure arc screen for starch

Surface wedge wire detail

Support rod detail

Edge detail

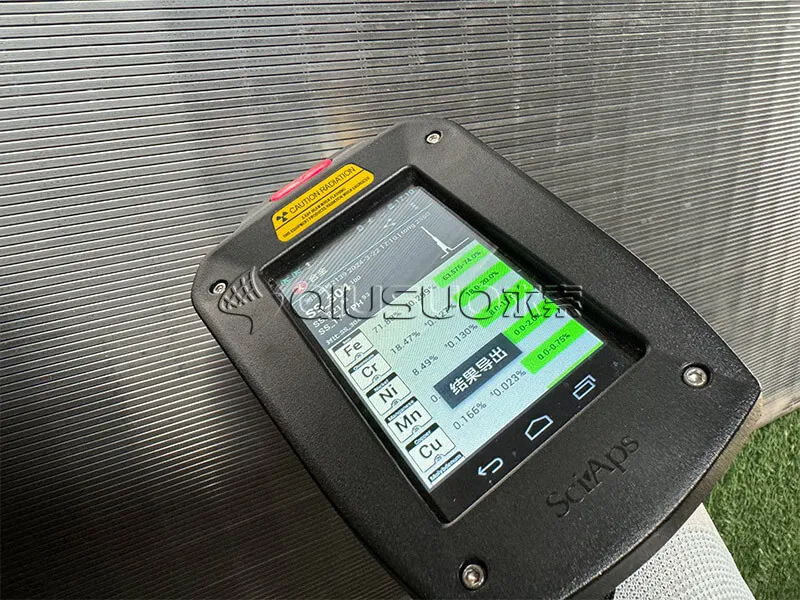

Surface wedge wire material test

Support rod material test.

Advantages and Characteristics

  • Efficient separation of impurities. The pressure arc screen is designed to operate under high pressure, which helps to remove fine particles and impurities from the starch slurry, ensuring that the final product is clean and free from contaminants.
  • High screening efficiency. The curved shape of the screen surface ensures that the starch slurry flows uniformly across the screen, maximizing its screening efficiency and minimizing the risk of blockages or clogging.
  • Self-cleaning. The pressure arc screen is designed to be self-cleaning, with the trapped particles and impurities removed from the screen surface by a backwash or flushing system. This helps to ensure that the screen operates continuously without the need for manual cleaning.
  • Durable and long-lasting. The pressure arc screen is typically made of high-quality stainless steel, which is resistant to corrosion and wear, ensuring that the screen lasts for many years with minimal maintenance.
  • Customizable. The pressure arc screen can be customized to meet the specific requirements of different starch processing applications, with varying screen sizes, slot sizes, and pressure ratings available to suit different operating conditions.

Applications

  • Dewatering or grading screen
  • Corn starch, tapioca starch, potato starch screen
  • Fiber recovery and pulp thickening in the paper and pulp industries
  • Curd/whey separation in the dairy industry
