Polyurethane Fine Screen – Enhancing Efficiency and Capacity

Our polyurethane fine screens are widely used in industries such as mining, chemical, metallurgy, and construction. They can be used in conjunction with various electromagnetic vibrating high-frequency screens, composite vibrating high-frequency screens, and stacked high-frequency screens, making them particularly suitable for the precise screening of fine-grained materials. QIUSUO uses high-quality polyurethane materials combined with high-precision mesh design, making PU fine screens not only have excellent screening accuracy but also a longer service life, and effectively reducing maintenance costs and equipment downtime in production.

Specifications

  • Aperture: 0.063–1.5 mm (customizable)
  • Screen Size: 1045 × 700 mm, 840 × 1245 mm, 1000 × 2320 mm, 1200 × 2320 mm (customizable)
  • Material: Polyurethane materials are divided into polyester type and polyether type, with specific parameters as follows:
    Table 1: Polyurethane Material Parameters
    No. Inspection Item Polyester Type Polyether Type
    1 Hardness/Shore A 80±2 85±2 90±2 95±2 90±2 95±2
    2 Tensile strength/MPa ≥ 40 ≥ 43 ≥ 46 ≥ 48 ≥ 30 ≥ 40
    3 Elongation at break/% ≥ 600 ≥ 580 ≥ 550 ≥ 500 ≥ 400 ≥ 300
    4 Tear strength/(kN/m) ≥ 70 ≥ 75 ≥ 85 ≥ 100 ≥ 75 ≥ 90
    5 Resilience/% ≥ 25 ≥ 25 ≥ 25 ≥ 25 ≥ 35 ≥ 35
    6 Relative volume wear/mm3 ≤ 60 ≤ 60 ≤ 60 ≤ 60 ≤ 40 ≤ 40
  • Special requirements can be negotiated for customization.

Features

  • Made from high-strength polyurethane compounds, it has high elasticity and high screening efficiency.
  • It has excellent water and air permeability, ensuring smooth material passage and reducing screen blockage.
  • It effectively prevents adhesion of wet fine particles, and is suitable for screening and separation of wet fine materials.
  • It has excellent corrosion resistance, good wear resistance, low operating noise, and is suitable for different screen fixing systems and accessories.
  • It has higher wear resistance and a longer service life than standard screen panels.
  • It offers various types of openings, allowing for quick installation and replacement, suitable for various working conditions.

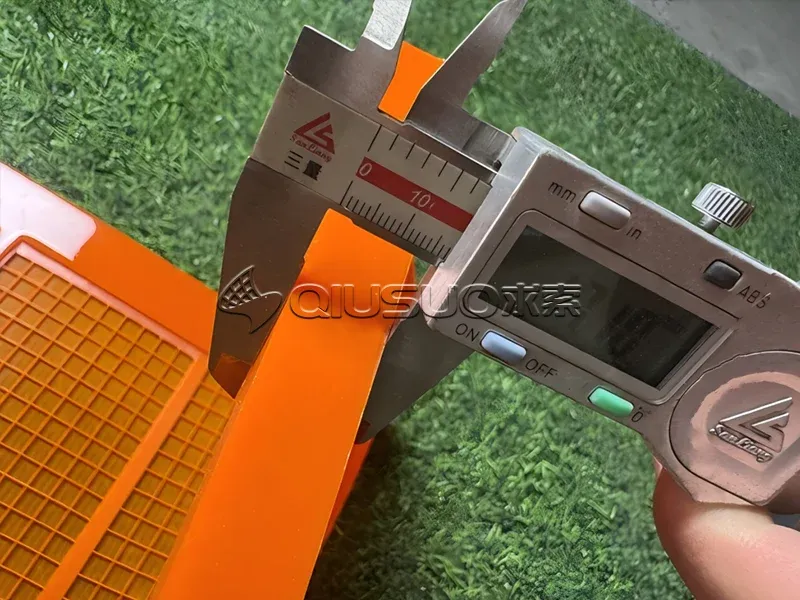

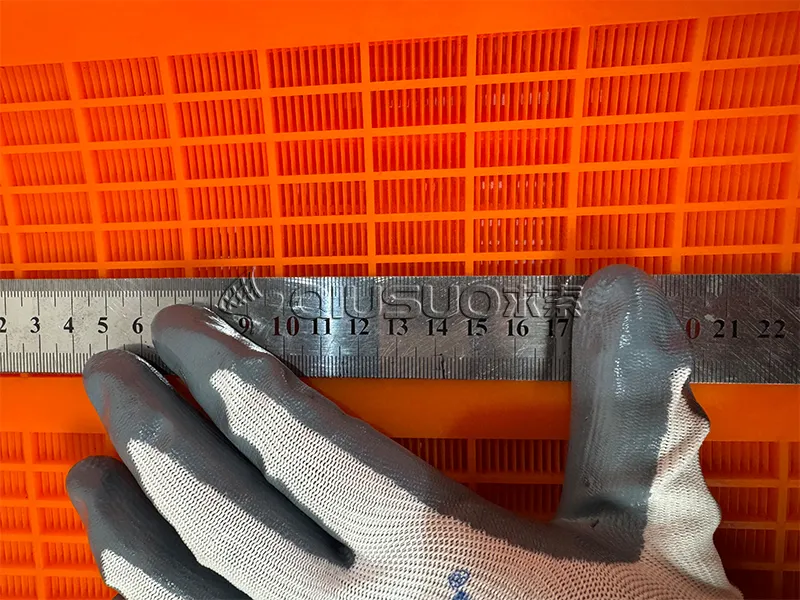

Detail Display

Case Study

Application Fields

Polyurethane fine screens are commonly used in fine vibrating screens and stacked vibrating screens, suitable for applications such as vibrating, dewatering and material classification. They are widely used in the mining industry, chemical industry, power industry, and construction industry.

Contact Us

If you need to consult the price, please contact the business department by E-mail: sales@qs-wiremesh.com

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
