Resin Trap Screen Predominantly Used in Water Treatment Processes Namely In 'ion Exchange' and Other Numerous Media Filter Systems

Resin trap also named resin catcher, media trap, it is a set of fittings consisting of pipe housing and resin trap screen. Resin trap wedge wire screen is providing security in case of catastrophic failure of your media beds. Generally, resin trap screen is flanged at the bottom of sand filter tank or mixed bed, and protected by mostly stainless steel housing or plastic housing.

When the resin or media passes by, it can be intercepted and captured by the wedge wire filter screens. At the same time, the captured resin or media can be discharged out of the system by flushing automatically through the differential pressure between front and rear installed near the outlet of the water system line.

And, wedge wire screen resin trap screen also be considered in the backwash lines of most ion exchange and carbon systems because temperature related flow changes can cause these expensive materials to be sent down the drain.

Our Resin traps screen is produced by fine raw material and advanced welding process. The gap size can be designed according to resin size.

2 wedge wire resin trap screens displayed in different views

Technical Information and Specifications

Technical Information and Specifications of Wedge Wire Screens for Resin Traps
Material Grade	304, 316, 316L,321,410S, 904L, HASTELLOY C-276 DUPLEX 2205, SUPER DUPLEX 2507, other metal alloy materials

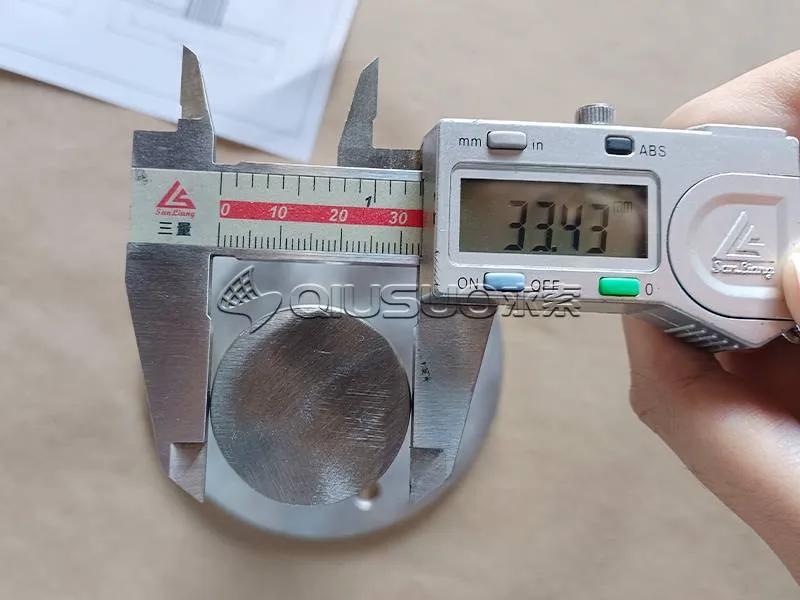

Screen Outside Diameter	1" – 20", customized
Screen Slots size	0.001" – 0.625" , customized
Wedge Wire (mm)	0.5 × 1.5	0.75 × 1.5	1 × 2	1.5 × 2	2 × 3	2 × 4
Support Rod (mm)	1.5 × 2.5 or 2 × 3	1.5 × 2.5 or 2 × 3	1.5 × 2.5 or 2 × 3	1.8 × 2.5 or 2 × 3	3 × 5	3 × 5
Connection Type	Flange (RF/SO/ANSI/Custom), Threaded end or others
End Type	Blind plate
Surface Treatment	Passivation, pickling, stress relieving, polishing, chrome plating

Overall

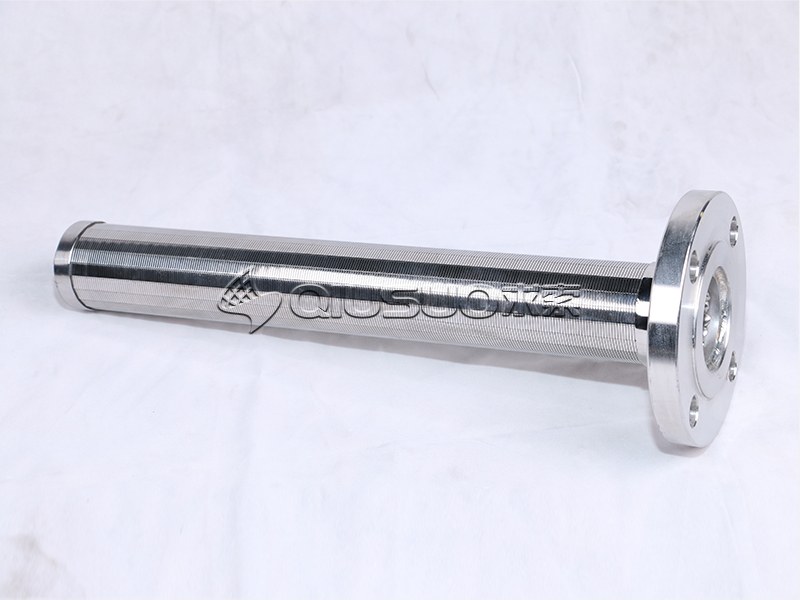

Flange

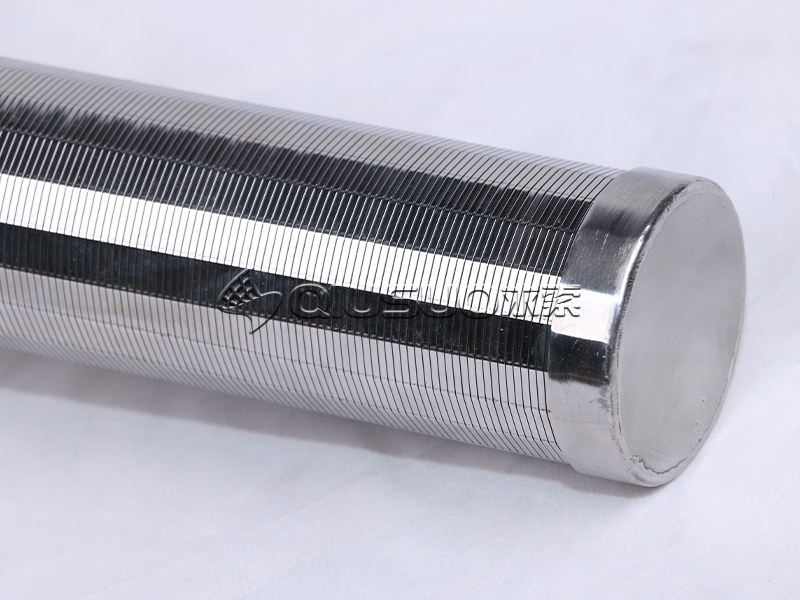

Blind cap

Feature and Advantages

Resin traps screen by design are placed in a housing utilizing the flow to capture media and preventing it from traveling downstream.
continuous & uniform slot design, high open area, non-clogging high filtering efficiency
V-shaped surface wires allow for easy cleaning by backflushing
Economical due to Corrosion and rust resistance long life, and easy to install and replacement.
Minimal pressure drop
Strong and durable
Top customs

Applications

Our complete range of resin trap screen or media traps screen suit a wide range of applications, it is installed in the product water line of most resin and media based water treatment equipment like Softeners, Dealkalizers, Condensate Polishers, Demineralizers, Carbon Filters, Sand Filters, Portable DI Tanks, Greensand Filters, and/or Multi-Media Filters.
