High-performance Rubber Modular Screens – Wear-Resistant, Noise-Reducing, & Anti-Clogging

Rubber modular screens are manufactured from premium wear-resistant rubber with a Shore A hardness of 40 or 60. Their exceptional resilience effectively prevents clogging, while their superior wear resistance minimizes blind spots. These screens deliver unmatched performance in demanding applications and perform reliably under both wet and dry conditions. QIUSUO can provide customized solutions tailored to your unique requirements.

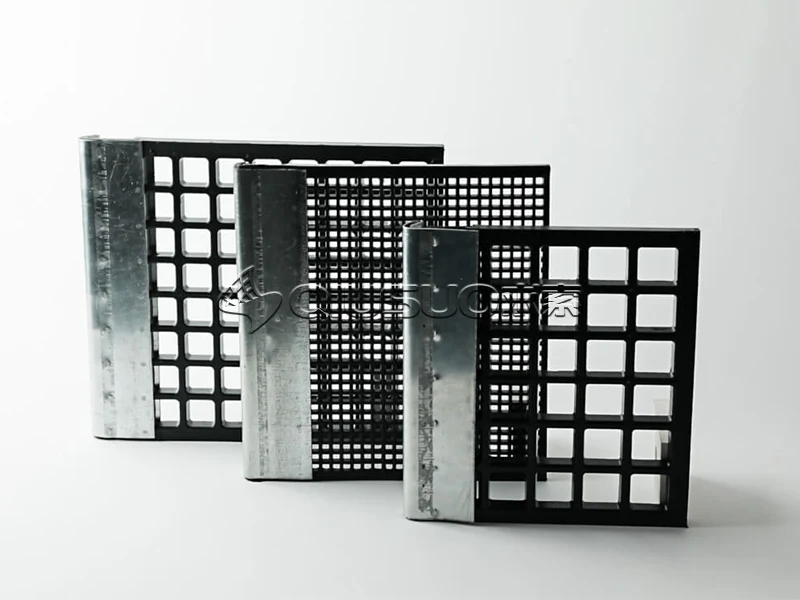

Display of rubber modular screen samples with various aperture sizes

Specifications

Screen size: 305 × 305 mm / 305 × 610 mm

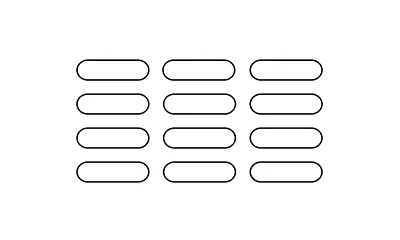

Opening types and specifications:

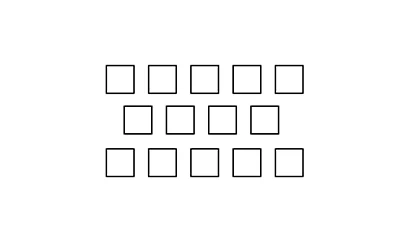

Square Holes
- Aperture: 3–125 mm
- Rubber Thickness: 3–50 mm

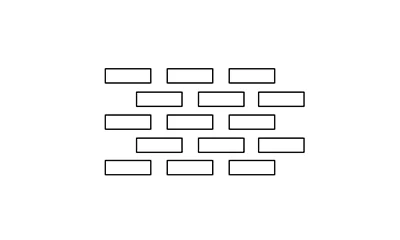

Square End Slotted
- Aperture: 12 × 24 – 70 × 95 mm
- Rubber Thickness: 7–25 mm
Available in custom specifications.

Features

Hardness for pegging and blinding.
Designed to absorb and withstand impact.
Will reduce pegging and blinding.
Good resistance to weathering.
Works well in wet and dry conditions.

Cases Display

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of rubber modular screens.

Front view of finished rubber screen panel

60 Shore A Hardness Rubber Screen Panel

Quality Control

QIUSUO is committed to delivering rubber modular screens of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest

Measure the edge thickness of the rubber modular screens using a caliper.

Edge thickness measurement

The hardness of the rubber modular screen is currently being tested.

Hardness test

The size measurement of rubber modular screens.

Dimension measurement

Manual press test

Applications

Rubber modular screens are widely used in mining, quarrying, and aggregate industries for material classification (such as coal, ore, and gravel); dewatering and washing in mineral processing; recycling and waste management; classification of recyclable materials (plastics, metals, construction debris); and grading of seeds, grains, and fertilizers in agriculture.

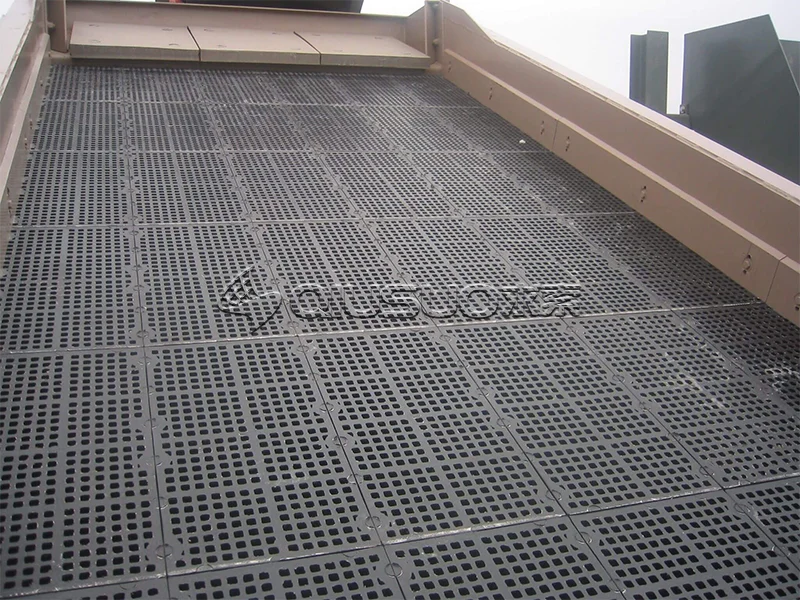

Rubber modular screens installed on vibrating screening equipment

Aggregate screening

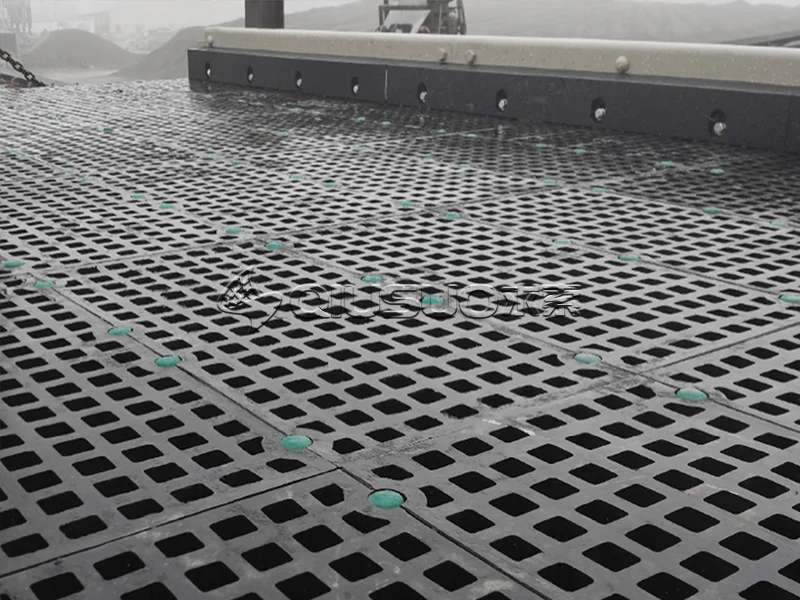

Equipment equipped with rubber modular screens in operation

Sand and gravel screening

Large-aperture rubber modular screens installed on screening equipment

Ore classification
