Grip Strut Plank Safety Grating Provide a Safer Surface for Platforms, Stair Treads, Ramps and Decks

Grip strut plank safety grating also named diamond grip plank grading, grip strut safety grating. Our grip strut perforated plank grating has serrated surface, provide a safer surface than many other grating products. It helps eliminate costly accidents, which reduces insurance costs and lost production. The open diamond pattern allows most debris and dirt to drain. Grip Strut Plank Grating is available in serrated and smooth diamond patterns, create non-slip walkways and stair treads.

Data Sheet

Technical Data

Material Options:
- Stainless Steel
- Hot Rolled Pickled and Oiled (HRPO) carbon steel
- Aluminum Alloy 5052 (support anodizing)
- Pre-galvanized Steel (support surface painting)
Slip resistance: complies with federal specification RR-G-1602D standards.
Available Patterns: standard serrated, grip strut stair tread, heavy duty serrated, grip strut ladder rungs, customized design

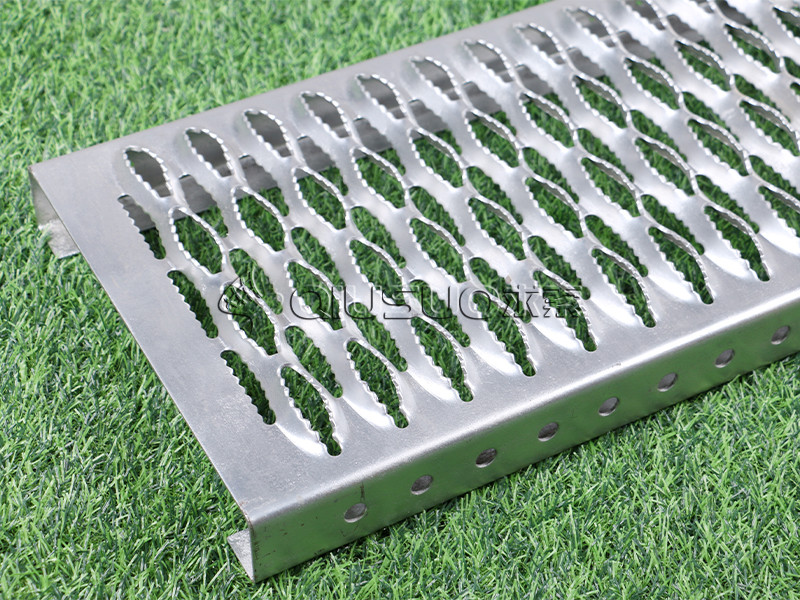

Grip Strut Plank Grating

Material Gauge: 9 ga, 10 ga, 11 ga, 12 ga, and 13 ga
Channel Width: 4-3/4" (2-Diamond), 7" (3-Diamond), 9-1/2" (4-Diamond), 11-3/4" (5-Diamond), 18-3/4" (8-Diamond), 24" (10-Diamond)
Channel Depth: 1-1/2", 2", 2-1/2, 3" or customized
Channel Span Length: 6', 8', 10', 12', 24' or customized

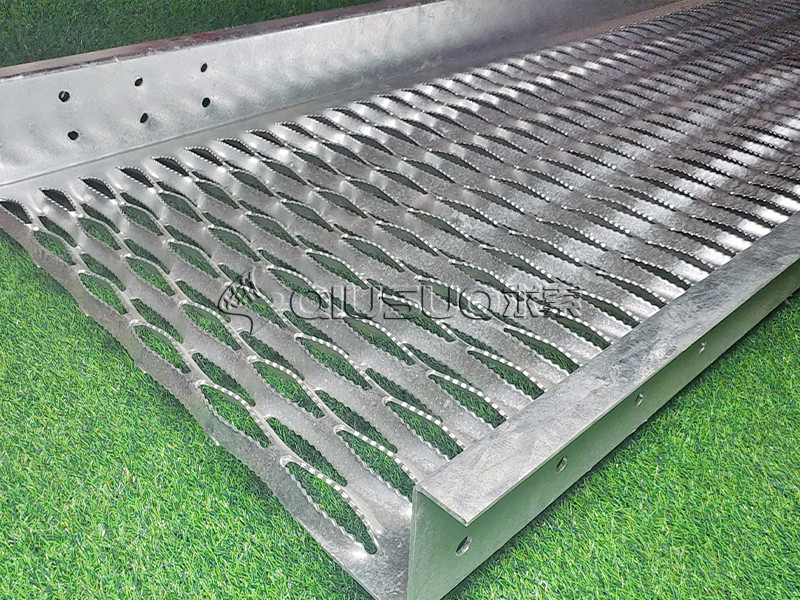

Heavy Duty Grip Strut Plank Grating

Material Gauge: 9 ga, 10 ga
Walkway Width: 24" (6-Diamond), 30" (8-Diamond), 36" (10-Diamond)
Walkway Length: 6', 8', 10', 12', 24' or customized

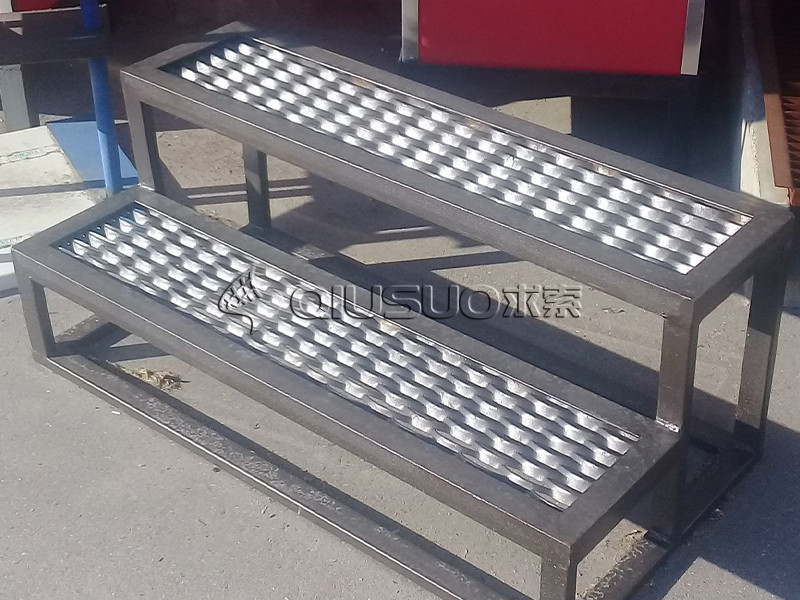

Grip Strut Stair Tread

Material Gauge: 11 ga, 12 ga, and 13 ga
Channel Height: 1-1/2", 2"
Channel Width: 4-3/4" (2-Diamond), 7" (3-Diamond), 9-1/2" (4-Diamond), 11-3/4" (5-Diamond)
Length: 2', 2.5', 3', 4' or customized
Intermediate Stringer: it is recommended for spans over 4 feet.
End Types: bending 4 sides or welding carrier plates on ends.

Grip Strut Ladder Rungs

Material Gauge: 11 ga, 12 ga, and 13 ga
Width:
- Standard diamond: 2-1/2"
- Reverse diamond: 1-5/8"
Height:
- Standard diamond: 1-1/8"
- Reverse diamond: 1-5/8"
Length: 3', 4', 6' or customized
Type: standard & reverse diamond (vertical opening & parallel opening to the length).

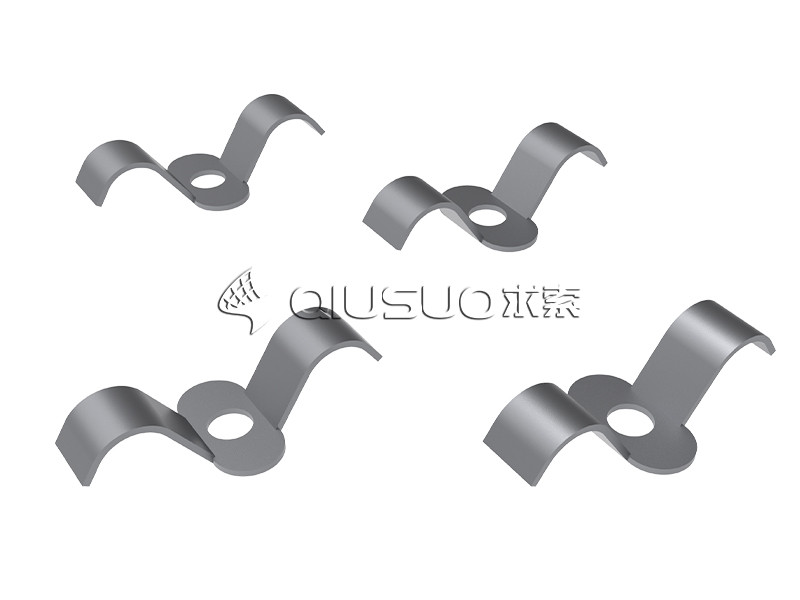

Related Accessory

Application

Grip Strut Plank Grating is ideally suited for all walking/working surfaces where mud, ice, snow, grease, oil and detergents create slippery or hazardous conditions. The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris. Wide applications examples:

Conveyor walkways
Switching platforms
Mezzanine Flooring
Rooftop Walkways
Wet environments Walkways
Anti-slip Stair Treads for ships
Electrical substations walkways
Brake Steps for container trailer
Ladder Rungs for fieldwork workers

Walkway

Stair Tread

Ladder Rung

Cases Display

Through client cases, you can learn our excellent product quality and process in-depth, and feel the quality of grip strut safety grating.

Two workers are packing diamond grip plank grating by steel belt.

Hot Dipped Galvanized Diamond Grip Plank

this is 36 inch Heavy Duty Grip Strut Walkway 8 diamond grip strut holes 10 Ga thickness high strength.

36" and 30" Heavy Duty Grip Strut Walkway

Grip Strut Plank Grating for Outdoor Industrial Production

Quality Control Read more

QIUSUO is committed to delivering grip strut plank safety grating of superior quality. Our stringent quality control process ensures that you receive a reliable product that meets the highest standards.

Material purchase order

A man is testing the zinc content of grip strut plank grating.

Zinc content test

Grip strut plank grating is undergoing load-bearing capacity test.

Load-bearing capacity testing

A micrometer is used to check the thickness of grip strut plank grating.

Thickness test
